- Type:
- Blood Analysis System
- Brand Name:
- BIOBASE
- Model Number:
- BKJ6100
- Place of Origin:
- China
- Product name:
- Hematology Analyzer
- Brand:
- BIOBASE
- Display:
- 8" LCD display
- Interfaces:
- RS232 joint, USB, PS2, Parallel port
- Sample Volume:
- Twig blood: 20μl
- Dilution Ratio:
- WBC/HGB: 1:500 RBC/PLT: 1:50000
- Test Speed:
- 60 samples/hours
- Continuous Work Time:
- >8h
- OEM:
- Available
- Supply Ability:
- 500 Set/Sets per Month
- Packaging Details
- standard wooden box or as per requirement.
- Port
- QINGDAO
- Lead Time:
- within 10 days after payment received

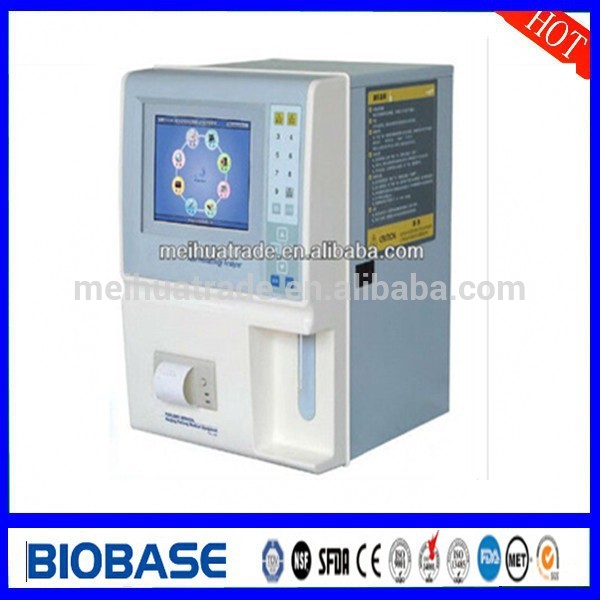

Automatic Hematology Analyzer Analytical Instruments
Features:
1.The principle of this machine is electrical impedance (EI).
2.The machine is mainly used for the quantitative measurement of the blood in the 19
parameters and 3 histograms.
3.This machine use Screw transmission technology ,it ensures the testing result more
accurate.
4.It can save 20,000 test results and the data can be searched by date, ID, SN.
5.The size of LCD display is 8".
6.It has a built-in thermal printer.
7.It has four interfaces:RS232 joint,USB,PS2,Parallel port.
8.It can set up and edit the parameters of male,female,children and newborn.
Test Items | WBC, LY#, MO#, GR#, LY%, MO%, GR%, HGB, RBC, HCT, MCV, MCH, MCHC, RDW—CV, RDW—SD, PLT, PCT, MPV, PDW, WBC Histogram, RBC Histogram, PLT Histogram | ||
Background Count | WBC: ≤0.3×109/L RBC: ≤0.03×1012/L HGB: ≤1g/L PLT: ≤10×109/L | ||
Linearity | Test Item | Test Range | Allow Difference of Linearity |
| WBC | 0∼6.0×109/L | ±0.3×109/L |
6.0∼99.9×109/L | ±5% | ||
RBC | 0∼0.99×1012/L | ±0.05×1012/ L | |
1.0∼9.99×1012/L | ±5% | ||
HGB | 0∼99 g/L | ±2g/L | |
100∼300 g/L | ±2% | ||
PLT | 0∼99×109/L | ±10×109/L | |
100∼999×109/L | ±10% | ||
Repeatability | Test Item | CV(%) | Teat Range |
WBC | ≤2.0 | 7.0~15.0×109/L | |
RBC | ≤0.5 | 3.5~6.0×1012/L | |
HGB | ≤1.5 | 110~180g/L | |
PLT | ≤4.0 | 150~500×109/L | |
MCV | ≤0.5 | 80~110fL | |
Sample Volume | Twig blood: 20μl | ||
Dilution Ratio | WBC/HGB: 1:500 RBC/PLT: 1:50000 | ||
Interfaces | RS232 joint, USB, PS2, Parallel port | ||
Test Speed | 60 samples/hours | ||
Continuous Work Time | >8h |
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave anf Incubator.
We have more than 800 employees and 2000 square meters production base, our output per year is amount to 10000 units. Pursuing the highst quality is the tenet if BIOBASE. We hope everybody will enjoy BIOBASE service to keep away from the infectious disease.
Our advantages:
-We built an excellent research team which consists of 50 professional engineers
-We have 14 years production experience and a strong technical production team, we adopt high-tech and state-of-the-art production equipments from Italy, Japan and Switzerland, tec.
-We have a strong quality control team to inspect all production stage, from the purchased accesory to the finished products.
-We have full sets of advanced quality assurance equipments
We have ISO9001 quality management system; ISO14001 environmental managemnet system, ISO13485, CE mark, MET and NAF49 certificate.
We got EN12469 certificate for Biosafety Cabinet in 2013.
