Application:

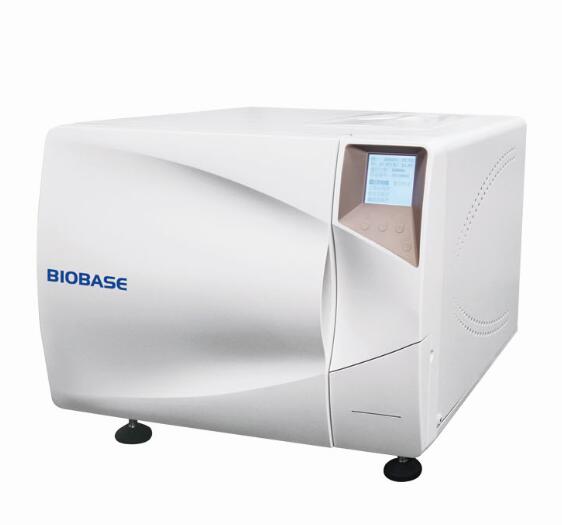

BKM-BIII series sterilizer is a Class B table top sterilizer. As a type of high pressure sterilizer, it takes steam as its sterilization medium which is fast, safe and economic. They are common used in stomatology department, ophthalmology department, operating room and CSSD to make the sterilization for wrapped or unwrapped instrument, fabric, utensils, culture medium, unsealed liquid, etc.
Features:
Build-in open type water tank
a. Easy-clean open type water tank
b. Water quality monitor
c. Water filter inside
d. Water level sensor
e. A fully injected water tank can support repeated program running.
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operating status, error and alarm information, etc.
It is convenient for users to observe the sterilizer running status.
Multiple security protective device
Over temperature automatic protective device, multiple control and protection for steam generator, door safety interlock protection and double chamber overpressure protection, electronic circuit safety device.
Automatic door
BKM-Z18/24/45B(III) series adopt automatic door structure, fast and simple operation, protecting operators from scald.
BKM60/80B(III) series adopt multipoint synchronous linkage pressing technology, reliable and durable.
Efficent vacuum
Efficient vacuum system, low working noise,vacuum lowest limit can reach over -90KPa, vacuum in high speed, perfect drying performance, thorough sterilization.
Multiple program types
Sterilization programs: Unwrapped, wrapped, ruber,user 01, N-quick, B-quick, prion test program: BD & Helix, Leakage test.
Auxiliary program: Preheat, drying, washing.
High-efficiency steam generator
BKM-Z18/24/45B(III) adopt build-in instant steam generator. BKM-60/80B(III) adopt build-in energy-storing steam generator producing steam in high speed and large quantity.
Other feature
Pulse vacuum, heating, sterilization, exhausting, vacuum drying totally automatic.
The chamber is heated by film heater, saving energy and time.
Loading tray
Model | BKM-Z18B(III) | BKM-Z24B(III) | BKM-Z45B(III) | BKM-Z60B(III) | BKM-Z80B(III) |
Capacity | 18 L | 24 L | 45 L | 60 L | 80 L |
Design Pressure | -0.1/0.3MPa | ||||
Design Temp. | 144℃ | ||||
Temp. Range | 105-136℃ | ||||
Chamber Material | Medical Stainless steel 304 | ||||
Standard Loading Tray | Type A | Type B | |||
Power Supply | 110/220V±10%, 50/60Hz | 220V±10%, 50/60Hz | |||
Power Consumption | 2.6 Kw | 2.6 Kw | 5.8 Kw | 7.4 Kw | 7.4Kw |
Chamber Size(mm) | φ250*350 | φ250*450 | φ316*618 | φ358*595 | φ358*717 |
External Size(mm) | 560*530*450 | 660*530*450 | 830*640*550 | 1002*730*560 | 1002*730*560 |
Packing Size(mm) | 780*720*680 | 880*720*700 | 1015*750*730 | 1180*830*795 | 1180*830*795 |
Gross Weight(kg) | 70 | 80 | 140 | 185 | 205 |
