LCD Digital Biological Microscope
--Biobase Meihua, the most professional laboratory and medical products supplier
Model | DM-125 | |
Optical System | Finite Optical System | √ |
Eyepiece | WF10X/18 | √ |
Viewing Head | Monocular Head Inclined at 30° |
|
Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 48-78mm | √ | |
Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 48-78mm |
| |
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi |
| |
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS |
| |
Achromatic Objective | 4X N.A=0.1 WD=17 | √ |
10X N.A=0.25 WD=7 | √ | |
40X N.A=0.65 WD=0.53 | √ | |
100X N.A=1.25 WD=0.13 | √ | |
Nosepiece | Backward Quadruple Nosepiece | √ |
Stage | Double Layers Mechanical Stage 140x140mm, Moving Range 75X50mm | √ |
Condenser | NA 1.25 Abbe Condenser | √ |
Dark Field Condenser (Dry, Oil) |
| |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Division 25mm | √ |
Illumination | S-LED Illumination |
|
S-LED Illumination with Recharger | √ | |
Kohler Illumination |
| |
ECO Function |
| |
Plane-cancave Mirror |
| |
Fluorescent Attachment | Fluorescent Illumination, LED Lamp |
|
Fluorescent Illumination, 100W HBO Lamp |
| |
Power Supply | AC110/220V±10%,50/60Hz | √ |
Accessories | Polarization Set |
|
Phase Contrast Kit |
| |
Package Size | 380*270*470mm(Main body),300*230*200mm(DP1) | √ |
Gross Weight | 8.5kg(Main body),2.5kg(DP1) | √ |
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
At present, we are dealing on laboratory equipment and medical analytical instruments, such as
biological safety cabinet, laminar flow clean bench, fume hood, refrigerator and freezer, incubator, oven, autoclave, freeze dryer, spectrophotometer, centrifuge, Elisa reader and washer, Semi&Auto biochemistry analyzer, biochemistry reagents etc.

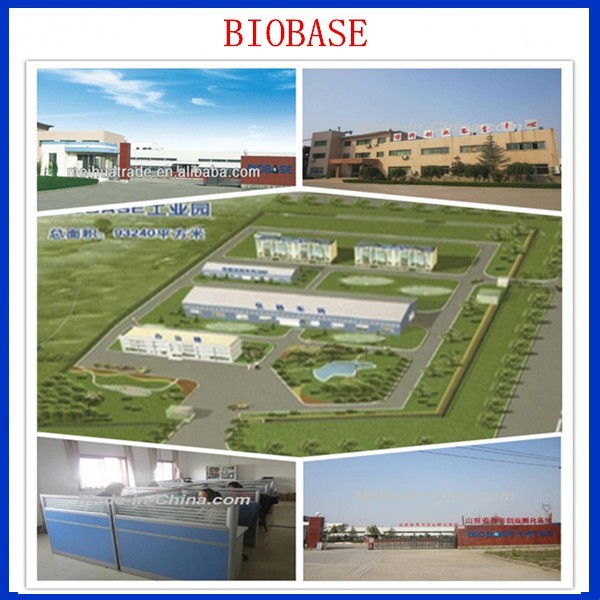

BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave anf Incubator.
We have more than 800 employees and 2000 square meters production base, our output per year is amount to 10000 units. Pursuing the highst quality is the tenet if BIOBASE. We hope everybody will enjoy BIOBASE service to keep away from the infectious disease.
Our advantages:
-We built an excellent research team which consists of 50 professional engineers
-We have 14 years production experience and a strong technical production team, we adopt high-tech and state-of-the-art production equipments from Italy, Japan and Switzerland, tec.
-We have a strong quality control team to inspect all production stage, from the purchased accesory to the finished products.
-We have full sets of advanced quality assurance equipments
We have ISO9001 quality management system; ISO14001 environmental managemnet system, ISO13485, CE mark, MET and NAF49 certificate.
We got EN12469 certificate for Biosafety Cabinet in 2013.
Please contact me with the information below to get more details:
Contact: Ray Liu
