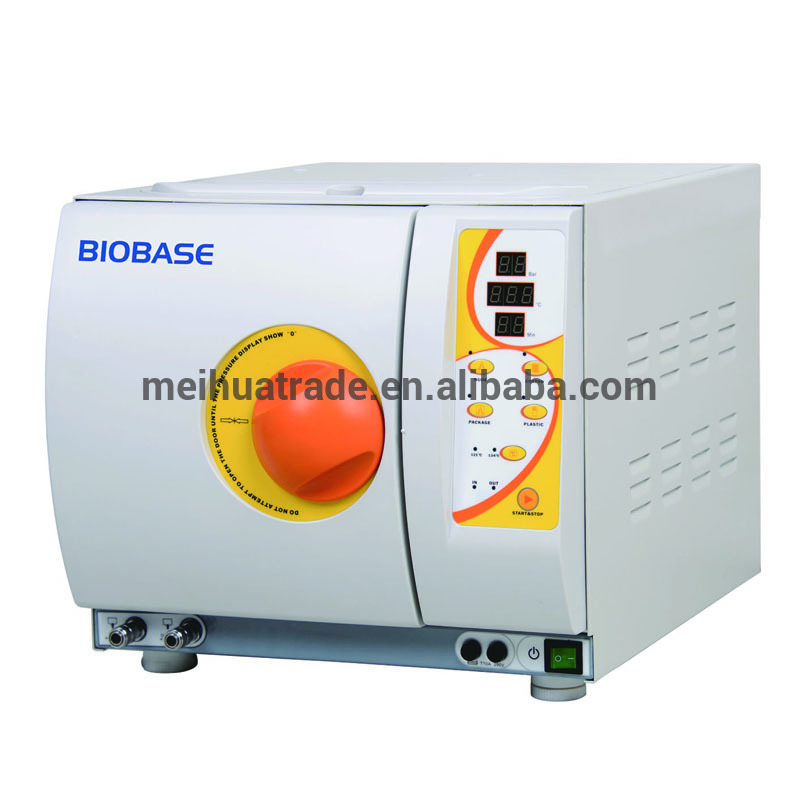

7L Class B Series Table-Top Autoclave
2L,7L,10L,12L,16L,18L,24L! Choose the one that meet your needs!
The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.
It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%.
Vacuum measurement reaches-0.8bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner.
Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation.
It is installed with BOWIE&DICK which measures the penetration of water steam.
Mini printer can be attached to record the process of sterilization.
Model | BKM-Z2B | BKM-Z7B | BKM-Z10B | BKM-Z12B | BKM-Z16B | BKM-Z18B | BKM-Z24B |
Capacity | 2L | 7L | 10L | 12L | 16L | 18L | 24L |
Sterilization Class | CLASS B | ||||||
Sterilization Temperature | 121℃,134℃ | ||||||
Special Program | HIV, HBV long-sterilization program | ||||||
Dry System | Vacuum drying system | ||||||
Display | High-light LED tube display | ||||||
Testing System | Bowie &Dick Test | ||||||
Vacuum Test | |||||||
Helix Test | |||||||
Control Precision | Temperature: 1℃ | ||||||
Pressure: 0.1bar | |||||||
Sterilization Data | Optional Mini printer | ||||||
Safety System | Relief valve | ||||||
Hand lock door | |||||||
Pressure lock system | |||||||
Pressure or temperature over load protection | |||||||
Alarm system | |||||||
Water Supply System | Build-in water tank easy to clean | ||||||

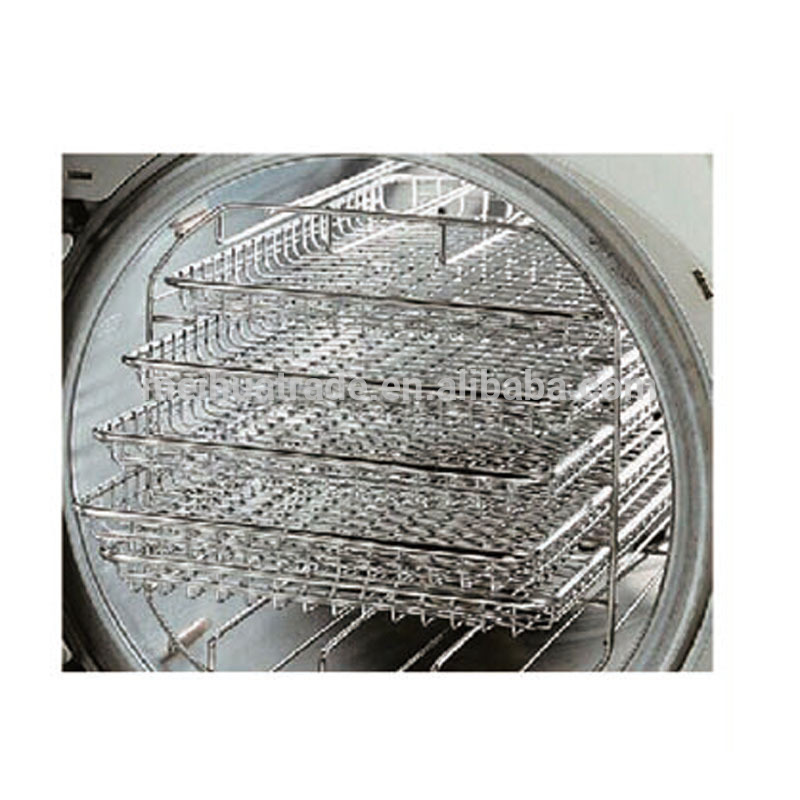

Tray Holder | SS basket, SS shelf | ||||||
Chamber | Medical stainless steel 304 | ||||||
Max working pressure:2.3bar | |||||||
Min working pressure: -0.9bar | |||||||
Max temperature: 145℃ | |||||||
Operation Temperature | 5~40℃ | ||||||
Noise | <50db | ||||||
Water consumption in one cycle | 0.12L~0.16L | 0.16L~0.18L | |||||
Power supply | 110/220V±10%, 60/50Hz | ||||||
Power consumption | 1200W | 1400W | 1400W | 1400W | 1800W | 1500W | 1700W |
Chamber Size(mm) | φ88*175 | φ170*320 | φ192*320 | φ192×340 | φ240×360 | φ245×360 | φ245*470 |
External Size(mm) | 350*284*376 | 540*370*360 | 540*370*360 | 560*450*400 | 445*550*395 | 560*450*400 | 670*450*400 |
Packing Size(mm) | 415*345*441 | 615*440*425 | 615*440*425 | 660*525*495 | 670*550*500 | 660*525*495 | 770*525*495 |
Net Weight | 26kg | 37kg | 40kg | 43kg | 47kg | 47kg | 53kg |
