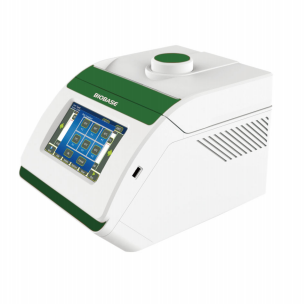

Fast Gradient Thermal Cycler PCR BK-GR300
Features:
* Newest generation peltier-based technology, more steady, reliable and durable.
* 7 inches color full touch screen, graphical display of protocols.
* Effortlessly interchangeable reaction modules that swap in seconds without tools.
* 15000 protcols storable on board and unlimited storage of protocols with USB flash drive.
Technical Parameters:
Model | BK-GR300 | |
Gradient module | 96 Module | 96 wells*0.2ml |
9677 Module | 96 wells*0.2ml+77wells*0.5ml | |
384 Module | 384 wells | |
Multi-purpose | 9677 Module+In-situadapter | |
Display | 7 inchescolortouchscreen, graphical display of protocols and running status | |
Communications | 2 USB 2.0 and LAN | |
Temperature | Block Temperature Range | 0℃~105℃ |
Max. Heating/Cooling Rate | 6℃/s | |
Temperature Uniformity | ≤±0.2℃ (at 95℃) | |
Temperature Accuracy | ≤±0.1℃ (35℃~100℃) | |
Display Resolution | 0.1℃ | |
Mode of Temperature Control | Sim-tube & Block mode | |
Gradient | Gradient Accuracy | ≤±0.1℃ (35℃~100℃) |
Column Uniformity | ≤±0.2℃ (at 95℃) | |
Gradient Range | 30℃~105℃ | |
Temp. Differential Range | 1~30℃ | |
Gradient Capability | 12 Column | |
Software | Max. No. of Programs | Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive |
Max. Step | 30steps | |
Max. Cycle | 100 typical cycles, max. 60,000 nesting cycles | |
Time & Temp. Increment/Decrement | Yes, available for Long PCR & Touchdown PCR | |
Auto Pause / Auto Restart | Yes | |
Multi-userLog in | With password-based authentication prevents from view, copy and alteration of protocols | |
Tm Calculator | Automatically calculate the melting and annealing temperature with two primer sequences | |
Hold at 4℃ | Yes, aninfinite incubation time at low temperature for overnight working | |
Program Wizard | Yes, create PCR protocols with only a few clicks | |
Running Report | Yes, provide objective and precise information for the whole experiment | |
PC Connection | PC remote control to manage more than 120 units of A300 across the network | |
Heat Lid | Height of Heat Lid | Steplesslyadjustable Lid, accommodates all kinds of PCR tubes, strips and plates |
Open Method | Innovative "TOP-OPEN" technology realizes open and lift in one step | |
Heat Lid Temperature Range | 30℃~112℃ | |
Auto Shut-off | Yes | |
Others | Power Supply | 85V-265V, 50-60Hz Max. 600W |
Package Size(L*W*H) | 362*256*255mm | |
Gross Weight | 9.8kg | |
