- Type:
- Pressure Steam Sterilization Equipments
- Brand Name:
- BIOBASE
- Model Number:
- BKQ-B50II
- Place of Origin:
- Shandong, China
- Capacity:
- 50L
- Chamber size(mm):
- 386*500
- Chamber material:
- 304 medical stainless steel
- Max designed pressure:
- 0.28Mpa
- Max designed temp:
- 150℃
- Working pressure:
- 0.175MPa
- Working temp.:
- 105~136℃
- Temp. accuracy:
- ±0.1℃
- Timing range:
- 0~999min
- Dynamic pulse exhaust times:
- 0~9 times
- Instrument classification:
- Class I, Class II
- Supply Ability:
- 1000 Unit/Units per Month
- Packaging Details
- Standard Export Wooden Package
- Port
- qingdao

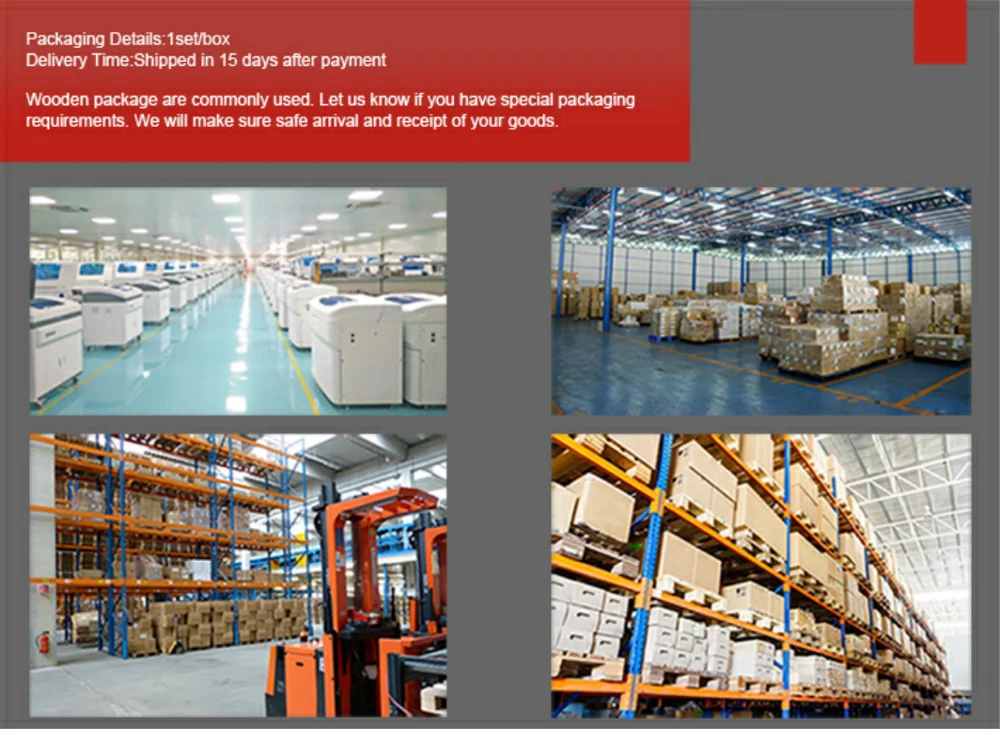

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 10 To be negotiated
- Description
1. Over pressure. Safety valve can automatically open to release pressure.
2. Over temperature. The system will power off automatically.
3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
5. Over current. over voltage or electric leakage protection apparatus-air switch.
6. Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.
- Technical Parameters
Model | BKQ-B50(II) | BKQ-B75(II) | BKQ-B100(II) | BKQ-B120(II) | BKQ-B150(II) | BKQ-B200(II) | |
Capacity | 50L | 75L | 100L | 120L | 150L | 200L | |
Chamber size(mm) | φ386*500 | φ386*682 | φ386*875 | φ386*1055 | φ500*760 | φ500*1000 | |
Chamber material | 304 medical stainless steel | ||||||
Max designed pressure | 0.28Mpa | ||||||
Max designed temp | 150℃ | ||||||
Working pressure | 0.175MPa | 0.217MPa | |||||
Working temp. | 105~136℃ | 50~134℃ | |||||
Temp. accuracy | ±0.1℃ | ||||||
Timing range | 0~999min | ||||||
Dynamic pulse exhaust times | 0~9 times | ||||||
Dynamic pulse exhaust temp. | 105~134℃ | ||||||
Dissolution temp. range | 60~100℃(programmable) | ||||||
Temp. holding range | 40~60℃(programmable) | ||||||
Power supply | 110/220V, 50/60Hz | 220V, 50/60Hz | 380V, 50Hz | ||||
Power consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW | 6KW | ||
SS basket | 1 pc | 2pcs | 2pcs | 3pcs | 3 pcs | 4pcs | |
External size(mm) | 550*640*970 | 550*640*1070 | 550*640*1270 | 550*640*1370 | 715*720*1350 | 715*720*1550 | |
Packing size(mm) | 780*690*1190 | 780*690*1130 | 780*690*1510 | 780*690*1590 | 760*800*1500 | 760*800*1690 | |
Gross weight(kg) | 115 | 123 | 136 | 151 | 230 | 260 | |
- Package
We are certificated by ISO9001, ISO3458, ISO14001, CE Mark, MET and NSF 49, EN 12469.
