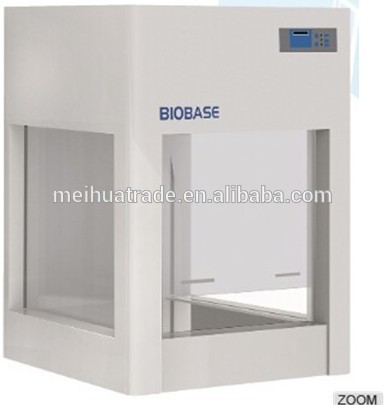

BIOBASE China BBS-V500 Desktop Small Mini Laminar Flow Cabinet
Advantage:
1. HEPA filter with efficiency:99.999% at 0.3um
2. Microprocessor control system, LED display
3. Air speed adjustable
4. Tabletop type, easy to carry and save space

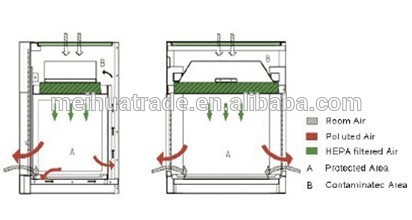

Air Flow Pattern:
TECHNICAL PARAMETERS
Model | BBS-V500 | BYKG-VII |
External Size(W*D*H) | 550*460*700 mm | |
Internal Size(W*D*H) | 480*340*370 mm | |
Display | LED Display | |
Airflow Velocity | 0.3~0.6m/s | ≥0.5m/s |
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
Work Table:304stainless steel | ||
Pre-filter | Polyester fiber, washable | |
HEPA Filter | 99.999%efficiency at 0.3um | |
Noise | <60dB | |
Front Window | Manual, 5mm toughened glass, anti UV | |
Max Opening | 310mm | |
Fluorescent Lamp | 8W*1 | |
UV Lamp | Emission of 253.7 nanometers | |
Consumption | 110W | |
Power Supply | 110/220V±10%; 60/50Hz | |
Standard Accessory | Fluorescent lamp*1, UV lamp*2 | |
BBS-H1300&BBS-H1800 Horizontal Laminar Flow Cabinet
TECHINICAL PARAMETERS
Model | BBS-H1300 | BBS-H1800 |
External Size(W*D*H) | 1300*825*2000mm | 1800*825*2010mm |
Internal Size(W*D*H) | 1200*500*570mm | 1700*500*570mm |
Work Surface Height | 720mm | |
Display | LCD Display , with air flow display and real time | |
Airflow Velocity | Average of 0.3~0.5m/s | |
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
Work Table:304 stainless steel | ||
Pre-filter | Polyester fiber, washable | |
HEPA Filter | 99.999% efficiency at 0.3um | |
Noise | <60dB | |
Front Window | Motorized ,Side and Front Window: 5mm toughened glass, anti UV | |
Max Opening | 520mm | |
Fluorescent Lamp | 28W*1 | 28W*1 |
UV Lamp | Emission of 253.7 nanometers | |
Consumption | 400W | 700W |
Caster | Universal caster with leveling feet | |
Waterproof socket | Two, total load≤500W | |
Power Supply | 110/220V±10%; 60/50Hz | |
Standard Accessory | Fluorescent lamp, UV lamp*2,Base stand, Tap, Waterproof socket*2 | |
Gross Weight | 165kg | 270kg |
Package Size(W*D*H) | 1470*1060*1600mm | 1960*1000*1600mm |
