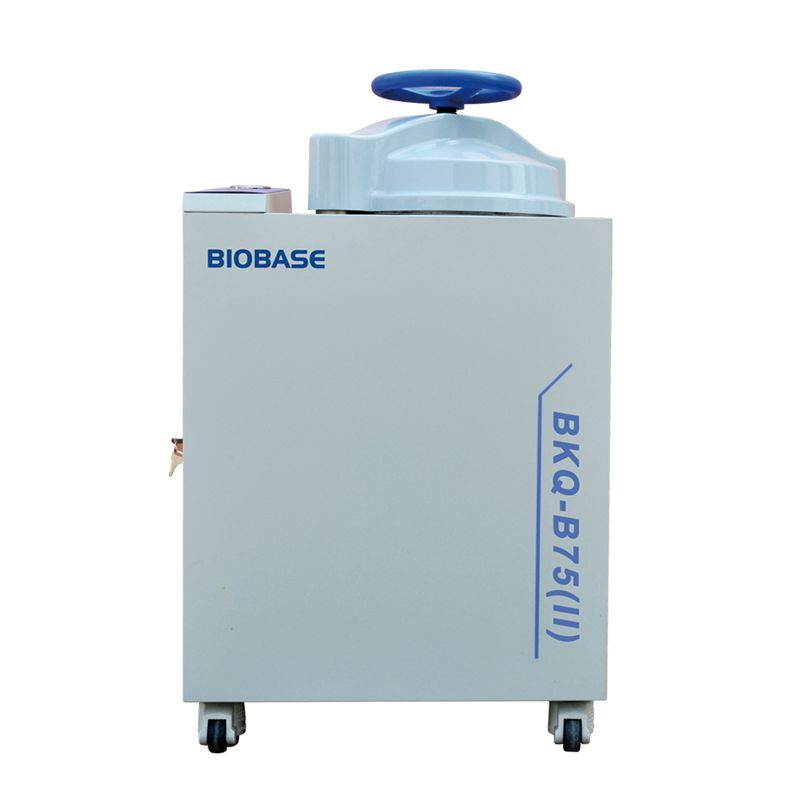

Factory Price 75L Hand Wheel Type High Pressure Steam Vertical Autoclave BKQ-B75II
(Skype:ruth.yang878)
Application range:
It is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.
Technical features:
1. Micro processor control system with various functions.
2. Hand wheel type of quick-open door structure.
3. Complete process of filling water, pulse exhaust, heating, sterilizing and drying run automatically.
4. LED display indicates inner temperature and time as well as error codes.
5. Over temperature&over pressure auto-protection
6. Positive pressurepulse exhaust the inner air, keeps steam saturation.
7. Preheating of chamber and drying after sterilizing to make sure complete sterilization and drying effect.
8. Inner water tank, water and steam circulate inside.
9. Self expanding silicon sealing ring.
10. Printer is optional.
11. Temperature can be set freely(50℃-126℃).
12. Time can be set freely(0-999 min).
13. Universal wheels with brake.
Safety feature:
1. Heating protection device.
2. Anti dry-out function.
3. Door interlocks with pressure.
4. Over temperature& pressure protection device.
5. Safety valve works when pressure exceeds.
6. Electricity protection.
Model | BKQ-B75II |
Capacity | 75L |
(φ391x695)mm | |
Chamber material | SUS304 medical stainless steel |
Rated working pressure | 0.175MPa |
Rated working temp | 130℃ |
Max pressure | 0.2Mpa |
Timing range | 0-999min |
Temp range | 50℃-126℃ |
Power consumption | 5.8KW |
Power supply | AC220V.50Hz |
Standard Accessories | Stainless steel basket*2pcs |
Outer size(mm) | 550x640x1300 |
Packing size(mm) | 610x700x1500 |
