Channel Automated Elisa Invitro Analyzer Machine BIOBASE2000
TECHNICAL FEATURES
Removable trays:modular racks to hold calibrators, controls and reagents for 10 methods on line
Elisa dilution cups:264 positions
Sample diluents:4 sample diluents on board
Microtiter plates:4 standard plates (12 x 8 well format) independently incubated at room temperature or from
37°to 45°C

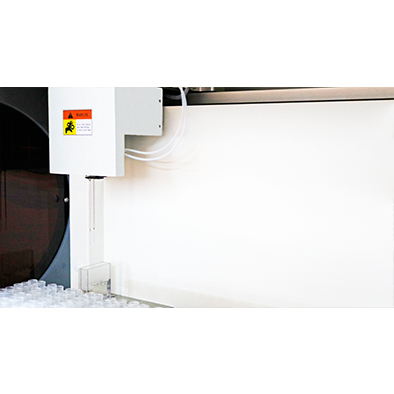

Liquid handling:2 probes for dilution and dispense
Dispensation:from 8 μl to 1000 μl by 1 μl step, inaccuracy ± 1% at 100 μl
Sample dispense time:8s with 1ml of washing solution
Plate washing:two 8 nozzle manifolds, one to dispense and the other one to aspirate; residual volume <3μl;
Plate washing inaccuracy:CV < 5 % at 300μl
Wash Buffers:4 wash buffers for microplates in external tanks
Reading system:8 independent photometric channels with mono and bichromatic reading capability
Interferential filters:2 precision filters (450 and 630 nm); 2 more on request (4 filters max, 400-700nm)
Reading:reading from 0.000 to 3.000 OD; inaccuracy ± 1% from 0.000 to 1.500 OD, ± 2% from 1.500 to 3.000 OD
Software:work list set up, patient reports and result filing; calibration curve storage for each carried out test
COMMON TECHNICAL FEATURES
Sample tray:169 sample tubes,13 mm or 130 sample tubes,16 mm Sample barcode reader built in sliding sample barcode reader
Syringes:1000 μl volume, 1μl step resolution
External liquid tanks:8 external tanks with level sensors
Connection:LIS interface capability, work list import from Host computer;
PC Minimum requirements: 250 MB free space hard disk; CDRom reader; 2 GB RAM; Intel
PentiumDual Core or equivalent; VGA 1024 x 768 16 million colours; 1 free USB 2.0 port; printer
Suggested requirements:4 GB RAM; Intel Core 2 Duo E6500 series processor or equivalent
Operative systems:Windows XP or Windows 7
Power requirements:230 or 115 VAC, 50-60 Hz, 350 W
Measurements:113 x 77 x 75 h
Weight:120 Kg
