China Clinical Analytical Instruments Medical Use Elisa Machine Manufacturer
TECHNICAL FEATURES
Removable trays:modular racks to hold calibrators, controls and reagents for 10 methods on line
Elisa dilution cups:264 positions
Sample diluents:4 sample diluents on board
Microtiter plates:4 standard plates (12 x 8 well format) independently incubated at room temperature or from
37°to 45°C

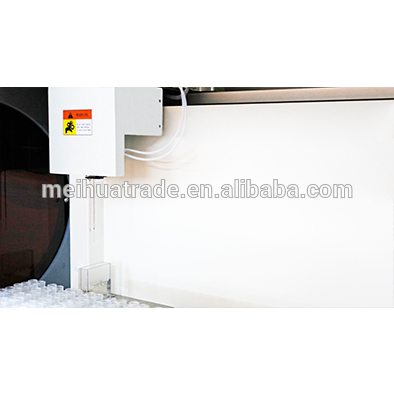

Liquid handling:2 probes for dilution and dispense
Dispensation:from 8 μl to 1000 μl by 1 μl step, inaccuracy ± 1% at 100 μl
Sample dispense time:8s with 1ml of washing solution
Plate washing:two 8 nozzle manifolds, one to dispense and the other one to aspirate; residual volume <3μl;
Plate washing inaccuracy:CV < 5 % at 300μl
Wash Buffers:4 wash buffers for microplates in external tanks
Reading system:8 independent photometric channels with mono and bichromatic reading capability
Interferential filters:2 precision filters (450 and 630 nm); 2 more on request (4 filters max, 400-700nm)
Reading:reading from 0.000 to 3.000 OD; inaccuracy ± 1% from 0.000 to 1.500 OD, ± 2% from 1.500 to 3.000 OD

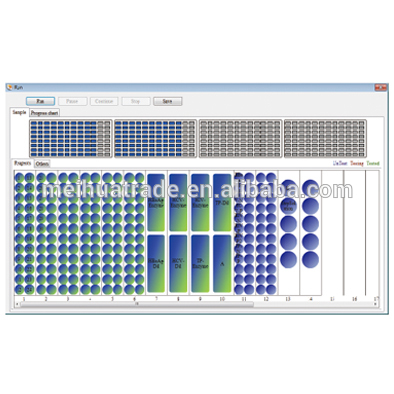

Software:work list set up, patient reports and result filing; calibration curve storage for each carried out test
COMMON TECHNICAL FEATURES
Sample tray:169 sample tubes,13 mm or 130 sample tubes,16 mm Sample barcode reader built in sliding sample barcode reader
Syringes:1000 μl volume, 1μl step resolution
External liquid tanks:8 external tanks with level sensors
Connection:LIS interface capability, work list import from Host computer;
PC Minimum requirements: 250 MB free space hard disk; CDRom reader; 2 GB RAM; Intel
PentiumDual Core or equivalent; VGA 1024 x 768 16 million colours; 1 free USB 2.0 port; printer
Suggested requirements:4 GB RAM; Intel Core 2 Duo E6500 series processor or equivalent
Operative systems:Windows XP or Windows 7
Power requirements:230 or 115 VAC, 50-60 Hz, 350 W
Measurements:113 x 77 x 75 h
Weight:120 Kg
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
