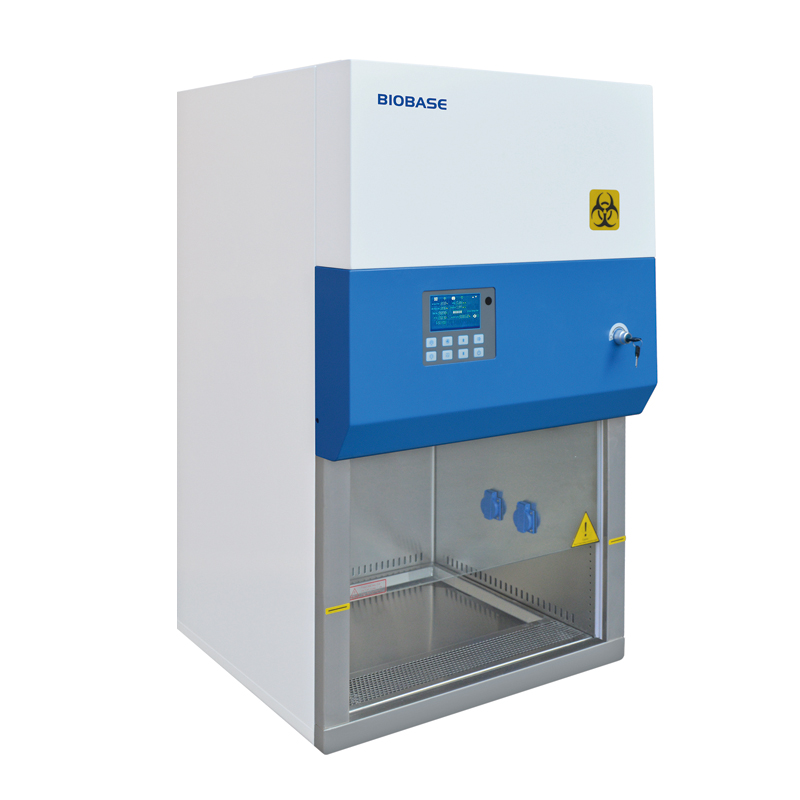

BIOBASE China Incubadora de laboratorio biological safety cabinet
Advantage:
1.small dimension,save space.
2.centrifugal fan, speed adjustable; H14 HEPA filter.

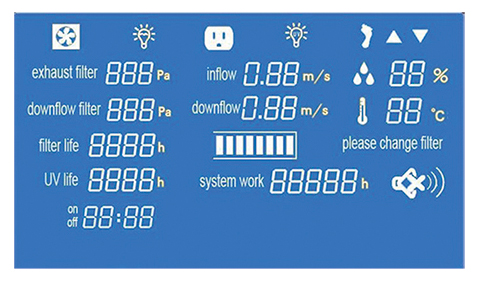

3.large LCD display: operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humility, filter pressure, UV working time and filter working time, filter life indicator etc.
4.time reserve function: this can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
5.remote control: each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
6.moterized front window: the front window is motorized for convenient, one-hand operation.
7.voice prompt function: airflow alarm, filter replacing alarm and front window height alarm.
Technical Parameters:
Model | 11231BBC86 | ||
ExternalSize(W*D*H) | 700*650*1230 mm | ||
Internal Size(W*D*H) | 600*500*540 mm | ||
Tested Opening | Safety Height ≤ 200 mm | Max Opening | 400 mm |
Inflow Velocity | 0.53±0.025 m/s | Downflow Velocity | 0.33±0.025 m/s |
HEPA Filter | Two, 99.999% efficient at 0.3 um. Filter life indicator. | ||
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. | ||
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB | ||
UV Lamp | 18W*1 | ||
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. | |||
Fluorescent Lamp | 14W*1 | ||
Illumination | ≥1000Lux | ||
Consumption | 500W | ||
Socket | Two, total load of two sockets: 500W | ||
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | ||
Control System | Microprocessor | ||
Airflow System | 70% air recirculation, 30% air exhaust | ||
Visual and Audio alarm | Filter replacement, window over height,abnormal air flow velocity. | ||
Material | Work Zone: 304 stainless steel | ||
Main Body: Cold-rolled steel with anti-bacteria powder coating. | |||
Work Surface Height | 750mm | caster (optional) | Universal caster with brake and leveling feet. |
Power Supply | 110/220V±10%, 60/50Hz | ||
Standard Accessory | Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2 | ||
Optional Accessory | Base stand | ||
Gross Weight | 110kg | ||
PackageSize(W*D*H) | 950*850*1430mm | ||
