Mindray Hematology Analyzer CE Oem Marked Clinical Chemistry Analyzer

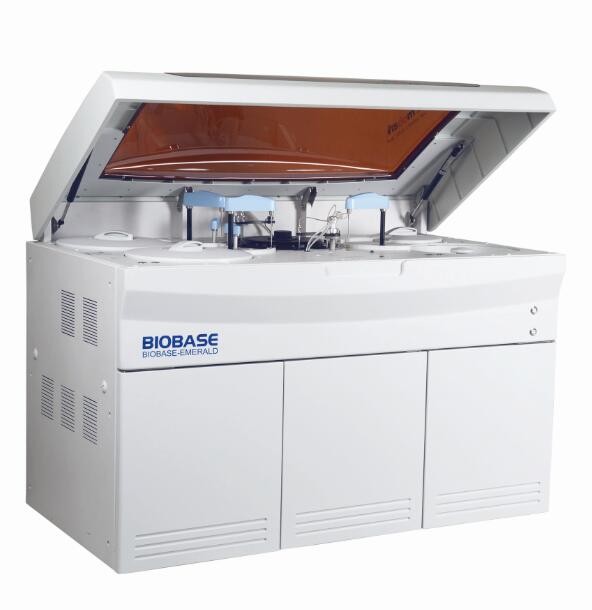

BIOBASE biochemistry analyzer is fully automatic,discrete,random access biochemistry analyzer.It is eupipped with:60 sample position,90 reagent position,and 120 reaction cuvettes.It is 400 test per hour,with both CE & FDA certified.
1.Sample unit:
Sample Settings: 60 sample positions, including calibration, quality control and emergency,
primary tubes and serum is available.
Sample Volume: 2ul ~50ul (0.1ul stepping).
2.Reagent unit:
Reagent Position: total 45 refrigerated reagent position.
Reagent Volume: R1:25~300ul, R2:10~150ul (1ul stepping), supporting reagent of different brand
Temperature Control: continuous cooling system working within 24 hours.
3. Reaction unit:
Cuvettes: 120 independent reaction cuvettes (optical path length 6mm)
Cleaning: automatic water cleaning and drying system.
Temperature Control: 37C±0.1
4.Calibration and QC:
Have reaction curve and curve graph to check.
Calibration: one-point, multi-point
Linear Range: 0.000~2.500Abs
Quality Control: inserting quality control at random
