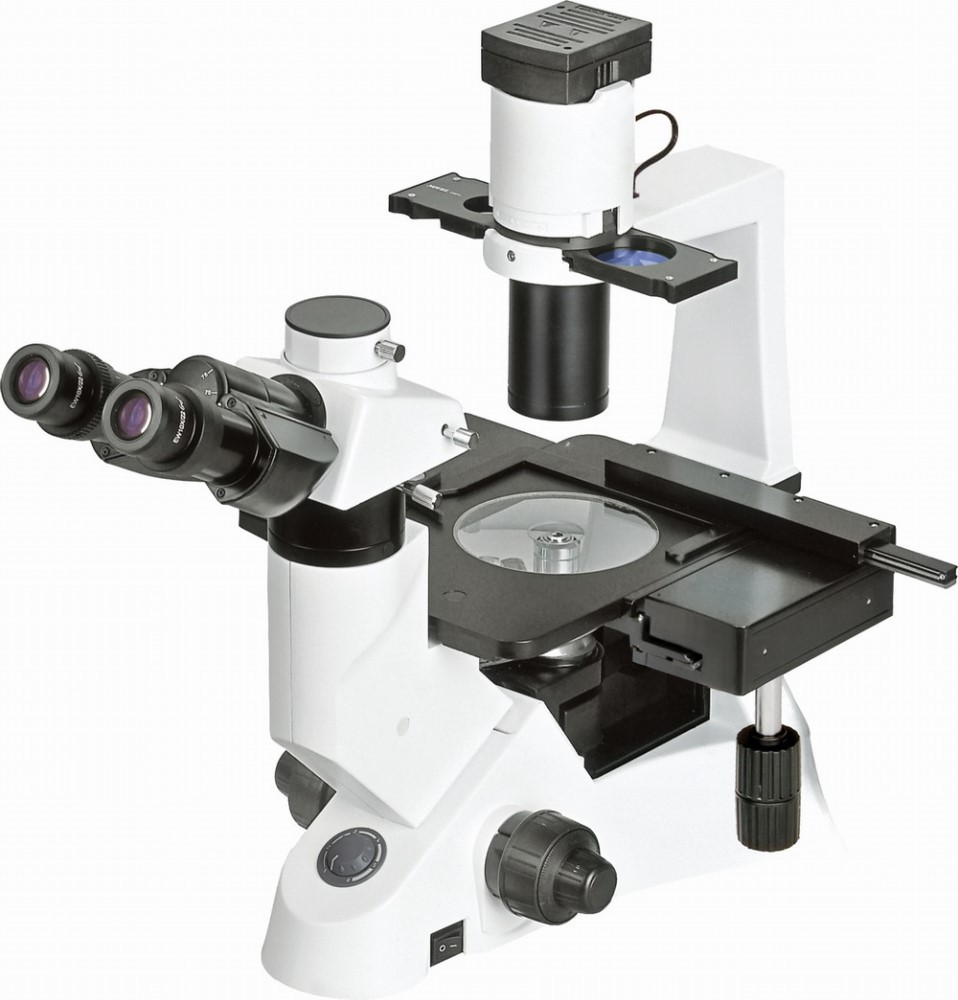

Trinocular Head Inclined Inverted Microscope
Viewing Head | Trinocular Head Inclined at 30°,Interpupillary distance 48-75mm |
Eyepiece | High point extra wide field eyepiece EW10X/22 |
Objective | Infinite plan objective 4X/0.1,WD18mm 10X/0.25,WD10mm 20X/0.4,WD5.1mm 40X/0.6,WD2.6mm Infinite plan phase objective PH10X/0.25,WD10mm PH20X/0.4,WD10mm PH40X/0.65,WD0.35mm
|
Nosepiece | Quintuple Nosepiece |
Condenser | ELWD Condenser NA0.3,LWD72mm(150mm without condenser) |
Centering | Centering Telescope (Φ30mm) |
Phase Annulus | 10X-20X,40X Pre-adjustable phase annulus plate 10X-20X,40X Adjustable phase annulus plate |
Stage | Plain stage 160*250mm Glass insert Attachable mechanical stage,X-Y coaxial control moving range 120*78mm Auxiliary stage 70*180mm Φ38mm Petri dish holder Φ54mm Slide glass holder |
Focusing | Coaxial coarse and fine adjustment,vertical objective movement Coarse stocke 37.7mm pet rotation,fine strok 0.2mm per rotation |
Illumination | Halogen lamp 6V/30W |
Filter | Diameter 45mm,Blue,Green,and frosted glass |
Accessories | Inverted Fluorescent Attachment Video Adapter with C mount |
Power Supply | AC110/220V±10%,50/60Hz |
Package Size | 350*250*508mm(XSD-403),468*397*665mm(NIB-100) |
Gross Weight | 15Kg(XSD-403)(NIB-100) |
