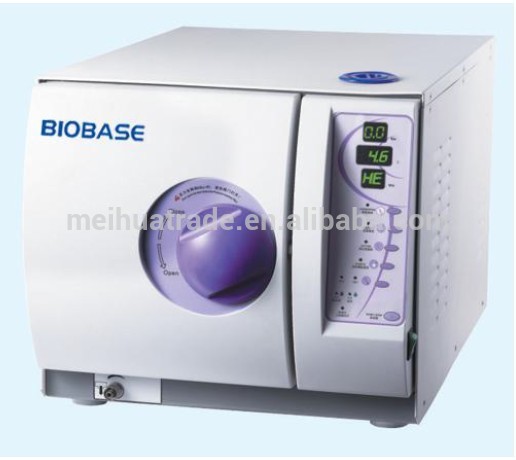

Dental autoclave Class N series 10L Mini Autoclave with heating dry
The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.
It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%.
Features
Stainless steel chamber
Stainless steel shelf and trays
LCD Control board
| Model | BKM-Z2N | BKM-Z7N | BKM-Z10N | BKM-Z12N | BKM-Z18N | BKM-Z24N |
| Sterilization Class | CLASS N | |||||
| Sterilization Temp. | 121℃, 134℃ | |||||
| Drying procedure | Heating dry | |||||
| Display | High-light LED tube display | |||||
| Testing System | Bowie&Dick, Steam penetration test | |||||
| Control Precision | Temperature: 1℃ | |||||
| Pressure: 0.1bar | ||||||
| Sterilization Data | Optional Mini printer | |||||
| Safety System | Relief valve | |||||
| Hand lock door | ||||||
| Pressure lock system | ||||||
| Pressure or temperature over load protection | ||||||
| Alarm system | ||||||
| Water Supply System | Build-in water tank easy to clean | |||||
| Tray Holder | SS basket, SS shelf | |||||
| Chamber | Medical stainless steel 304 | |||||
| Max working pressure:2.3bar | ||||||
| Min working pressure: -0.9bar | ||||||
| Max temperature: 145℃ | ||||||
| Operation Temp. | 5~40℃ | |||||
| Noise | <50db | |||||
| Water consumption in one cycle | 0.12L~0.16L | 0.16L~0.18L | ||||
| Power supply | 110/220V±10%, 60/50Hz | |||||
| Power consumption | 1200W | 1400W | 1400W | 1400W | 1500W | 1700W |
| Chamber Size(mm) | φ88*175 | φ170*320 | φ192*320 | φ192×340 | φ245×360 | φ245*470 |
| External Size(mm) | 350*284*376 | 540*370*360 | 540*370*360 | 560X450X400 | 560*450*400 | 670*450*400 |
| Packing Size(mm) | 415*345*441 | 615*440*425 | 615*440*425 | 660×525×495 | 660*525*495 | 770*525*495 |
| Net Weight | 26kg | 37kg | 40kg | 43kg | 47kg | 53kg |
1.Stainless steel shelf and trays
2.Built-in USB port, printer is optional
3. Plastic clamp
