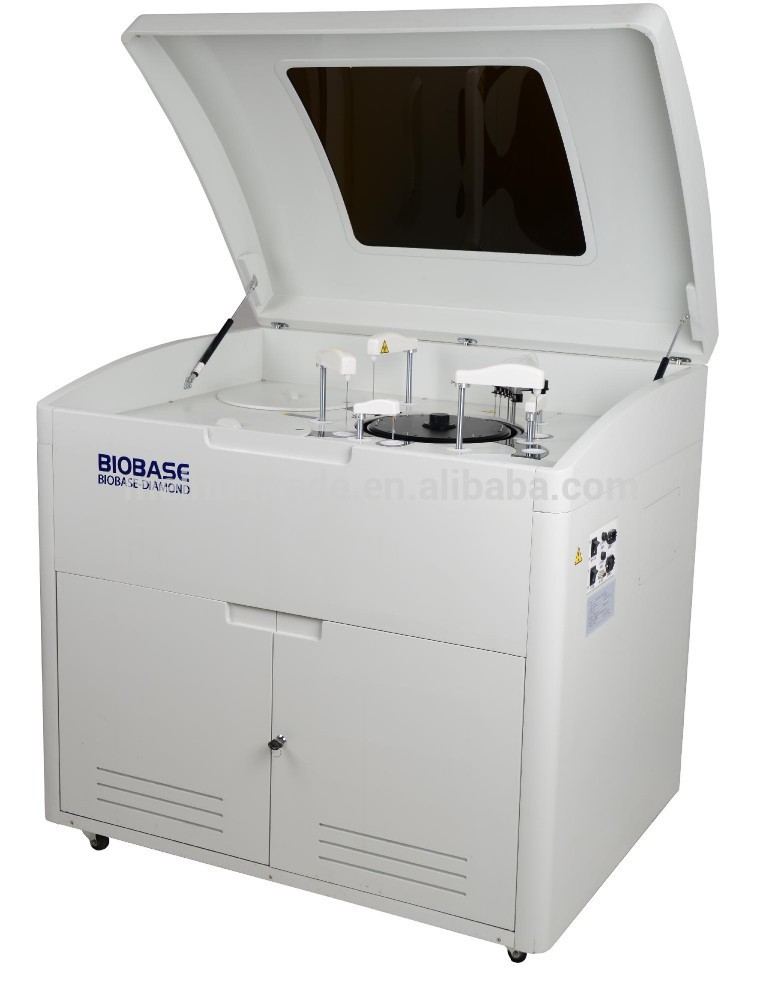

Click on the image to view the original image
1. Fully automatic, Discrete, Random access
2.400 T/H, 60/90 sample position and 120 reusable cuvettes.
3. 90 refrigerated reagent tray (R1:45 R2:45), 24 hour working.
4. Reversed optics and imported photo sensor, ensuring the precision of detection results.
5. Precision dispense pumps assures the accuracy of adding sample volmue, sample volume step by 0.1μl, reagent volume step by 1μl.
1. 400 test per hour.
2. 60/90 sample position.
3. 90 refrigerated reagent tray.
4. CE and FDA certified.
Overall Performance | Model | BIOBASE-DIAMOND | ||||
Type | discrete, fully automatic | |||||
Throughput | 400 T/H | |||||
Analysis Method | End-point, Fixed-time,Rate | |||||
Programming Items | programmable for any test items | |||||
Certification | CE, FDA, ISO9001, ISO14001, ISO13485 | |||||
Sample unit | Sample Settings | 60/90 sample positions, including calibration, quality control and emergency. | ||||
Sample Volume | 2ul ~50ul (0.1ul stepping) | |||||
Sample Probe | Having liquid level induction function. | |||||
Probe cleaning | Automatic washing both interior and exterior | |||||
Analysis Items | analyzing maximally 45 items at the same time | |||||
Reagent unit | Reagent Position | R1:45 R2:45 total 90 refrigerated reagent position | ||||
Reagent Volume | R1:25~300ul, R2:10~150ul (1ul stepping), supporting reagent from different brand | |||||
Temperature Control | continuous 2C~8Ccooling within 24 hours | |||||
Reagent Probe | Having liquid level induction function | |||||
Probe cleaning | Automatic washing both interior and exterior | |||||
Reaction unit | Reaction Time | 10 minutes | Temperature | 37C±0.1C | ||
Cuvettes | 120 reaction cuvettes (optical path length 6mm) | |||||
Mixer | after injecting reagent and sample, blending immediately | |||||
Cleaning | automatic water cleaning and drying system | |||||
System Adjustment | System record the blank value and get more accurate result by deducting blank base value of each cuvette | |||||
Optical System | Light Source | 12V/30W halogen-tungsten lamp, 2000 hours | ||||
Receiver | 8 precision photo receivers | |||||
Wavelength Range | 340,405,450,510,546,578,630,700mm | |||||
Calibration and QC | Calibration | one-point,multi-point | Linear Range | 0.000~2.500Abs | ||
Quality Control | Inserting quality control at random. | |||||
Software | Emergency Function | emergency sample can be arranged at any time | ||||
Software | Windows XP or 7, sample and easy to operate | |||||
Data Processing | Having reaction curve detection and data display function in whole process. | |||||
Others | Power Supply | AC220V+22V/50Hz+1Hz | ||||
Dimension | 1070mm×910mm×1230mm (W*D*H) | |||||
Weight | 180kg | |||||
Biobase Meihua Trading Co.,Ltd is the subsidiary of BIOBASE group. BIOBASE,
established in 1999,has been through high and stable development for 15 years,is now with revenues of one hundred million,1200employees in China and abroad offices.The products we manufacture extend
to most of the laboratory items and scientific analytical equipment,covering biological safety
cabinets,laminar flow cabinets,fume hoods,incubators,autoclaves,biochemistry analyzers,
ELISA microplate processors drying ovens,centrifuges,microscopes,biochemical reagents, etc.Our mission is to enable our customers to make the world healthier,cleanerand safer.
BIOBASE group invests in science and technology researches,aims to keep improving products
performance and quality as well as develops new products to meet customers"wide requirement.We satisfy our customers by offering comprehensive support,purchase convenience and we are ready to
serve more and more BIOBASE users.
BIOBASE group,serving global distributors and its loyal end users,is becoming one of the most
important scientific services supplier.
We have acquired ISO, CE, EN, NSF and FDA certificates.
Important information that you may concern about:
1. Pacakge: All the products wil be packed firmaly in standard wooden case/ carton to make sure that the product won"t be damaged during the delivery.
2. Delivery time: Generally, the delivery time is about 10-20 days. If the product is a hot-sale one and out of stock, that might be a bit longer but we will try our best to let our customers receive the products as soon as we can.
3. Warranty: The warranty is generally 12-month, during which the replacement of broken components are free. Accessories are available.
4. Payment: T/T in advance is preferred. West union is also accpted.
