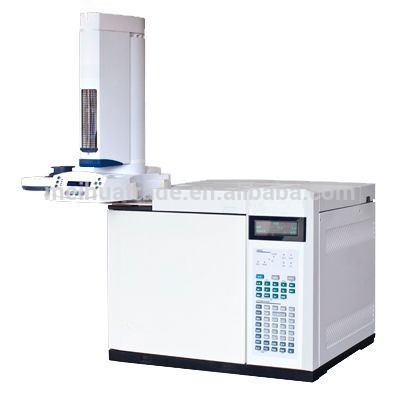

BK-GC Series Gas Chromatograph Gas Chromatographic Analyzer
Instrument characteristics
1,The first temperature-programmed steps in domestic which can set any functions greatly expand the range of analysis application.
2,New EPC / AFC gas system, control the pneumatic flexibly.
3,FID wide range design, A→ A extend the line range of sample analysis.
4,The outstanding large volume and high-temperature column oven which can get to 450 high-temperature control technology. Also it can achieve negative temperature operation, with liquid nitrogen / dry ice get to -80 ° C / -50 ° C.
5,Apply with highly-sensitive micro-thermal conductivity which can greatly improve the analytical sensitivity.
6,A variety of hardware configuration option projects which provide a flexible foundation for the development of a special analysis system.
7,Support multi-valve and multi-column switching technique which can turn the complex samples into simple analysis.
8,Support GC-MS technology
9,Introduce the foreign advanced PC control workstation software technology, which can support 5Q certificate and comply with the management of GMP / GLP and 21 CFR Part 11 regulations.
1. Detector System
Detector | Max operating temperature | Temp. control accuracy | Sensitivity |
FID | 450℃ | ±0.1℃ | ≤3.0×10-12g/s[Hexadecane] |
TCD | 400℃ | ≥10000mV.ml/mg[Hexadecane] | |
ECD | 400℃ | ≤1.5×10-14g/ml[γ-666] | |
FPD | 450℃ | P≤2.0×10-13g/s[Parathion-methyl]; S≤2.0×10-11g/s[Parathion-methyl] | |
NPD | 400℃ | N≤1×10-12; P≤5×10-13g/s[Malathion] |
2. Setup
Standard setup | Capillary inlet | Split/splitless capillary |
Packed inlet | Packed inlet | |
Workstation
| FL9720 or Clarity counter-control workstation | |
Optional sampling device
| Changeover valve | 6-way valve or 10-way valve |
Headspace sampler | HS-9A or HS-16 automatic headspace sampler | |
Heat analysis sampler
| RJX9700 with temp.-control or RJX9700 without temp.-control | |
Auto sampler | 10 or 110 |
3. Workstation feature
- 1. Multi-channel and multi-user universal workstation to control all parameter;
- 2. Can collect signal from 4 detectors via RS232 or USB;
- 3. Basic parameter: max sample-collecting frequency @100Hz/unlimited peak process quantity/integral sensitivity @1μV*s;
- 4. Batch processing makes machine control, auto sampling sequence collecting, auto integral correction much easier;
- 5. Fully support FDA-21CFR PART 11, SST AND IQ/OQ;
- 6. Powerful post-treatment facilitate chromatography comparing, re-correction and data input&output.
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
At present, we are dealing on laboratory equipment and medical analytical instruments, such as
biological safety cabinet, laminar flow clean bench, fume hood, refrigerator and freezer, incubator, oven, autoclave, freeze dryer, spectrophotometer, centrifuge, Elisa reader and washer, Semi&Auto biochemistry analyzer, biochemistry reagents etc.
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave anf Incubator.
We have more than 800 employees and 2000 square meters production base, our output per year is amount to 10000 units. Pursuing the highst quality is the tenet if BIOBASE. We hope everybody will enjoy BIOBASE service to keep away from the infectious disease.
Our advantages:
-We built an excellent research team which consists of 50 professional engineers
-We have 14 years production experience and a strong technical production team, we adopt high-tech and state-of-the-art production equipments from Italy, Japan and Switzerland, tec.
-We have a strong quality control team to inspect all production stage, from the purchased accesory to the finished products.
-We have full sets of advanced quality assurance equipments
We have ISO9001 quality management system; ISO14001 environmental managemnet system, ISO13485, CE mark, MET and NAF49 certificate.
We got EN12469 certificate for Biosafety Cabinet in 2013.
