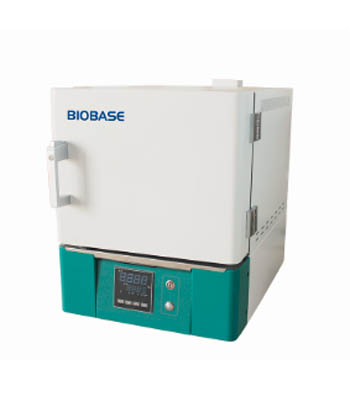

Ceramic Fiber Muffle Furnace (Ceramic Inner Chamber)
Features:
* External material: cold-rolled steel with anti-bacterial powder coating and internal material: imported high density ceramic fiber. All stainless steel glory hole,make sure the color not change.
* Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Heating rate is about 60℃/min.
* Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.
* PID micro digital screen controller,over-temperature alarming and auto-stop.
* Safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.
* Double-shell hollow thermal insulation,the shell not hot and the furnace internal cool quickly.
Model | MC2.5-12 | MC5-12 | MC10-12 | |
Max Temp. | 1200℃ | |||
Temp. Rising Time (Empty/min) | 20 | |||
Temp. Accuracy | ±1℃ | |||
Capacity(L) | 2 | 7.2 | 16 | |
Consumption(KW) | 2.5 | 5 | 6 | |
Power Supply | 110/220V±10%, 50/60Hz | 220V±10%, 50/60Hz | 220/380V±10%, 50/60Hz | |
Internal Size(W*D*H)mm | 200*120*80 | 300*200*120 | 400*250*160 | |
External Size(W*D*H)mm | 620*412*570 | 720*522*650 | 820*584*700 | |
Package Size(W*D*H)mm | 700*500*700 | 810*650*760 | 900*710*810 | |
Gross Weight(Kg) | 45 | 60 | 98 | |
