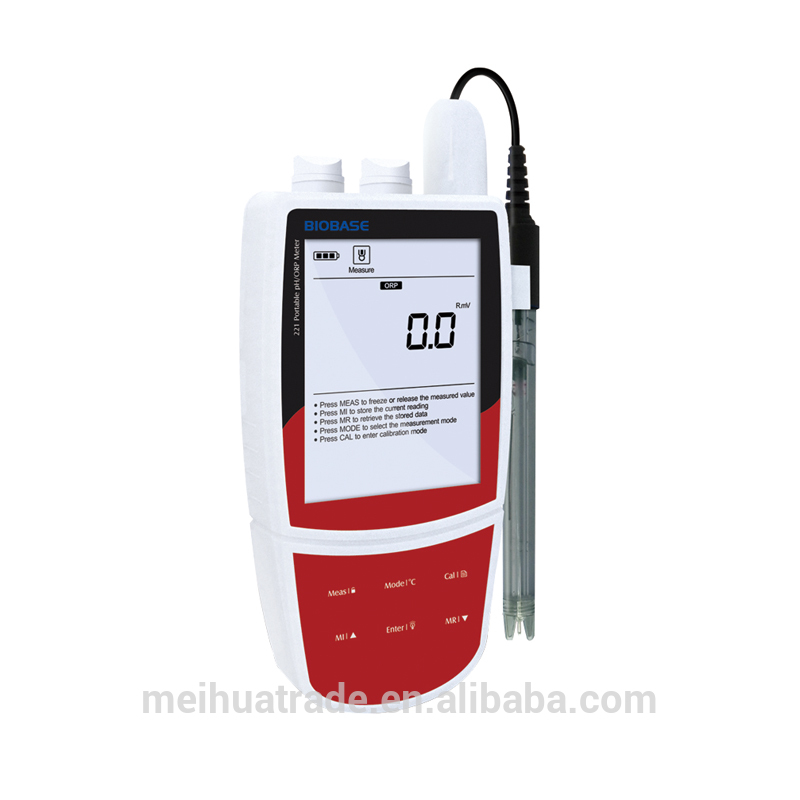

PH320 Portable pH/ORP/Ion/°C/°F Meter
Mian types of pH meter
Features:
- During the pH mode, Up to 5 points push-button calibration with auto-buffer recognition.
- selectable pH buffer standards and temperature units.
- Automatically calculates and displays electrode slope after calibration.
- During ORP mode, Single point offset calibration allows user adjusts displayed value to a known standard.
- Absolute or Relative millivolt (R.mV) measurement provides accurate ORP readings.
- During the ion mode, 2 to 5 points push-button calibration from low to high concentrations.
- selectable multiple concentration units, including ppm, mg/L and mol/L.
- Direct readout ion concentration simplifies the elaborate measurement process.
- Automatic Temperature Compensation (ATC) ensures highly accurate measurements over the entire range.
- Automatic endpoint function freezes the stable measured values for easy reading and recording data.
- Calibration due reminder prompts you to calibrate the meter regularly.
- Manual temperature calibration provides accurate temperature value.
- Help message as a operational guide to helps you understand how to use meter.
- Setup menu lets user customizes buffer standards, calibration points, stability conditions, resolution, measurement units, date and time to meet measurement requirements.
- Reset function can resumes all settings to factory default values.
- Expanded memory stores and recalls up to 500 readings.
- Built-in real-time clock stamps stored data to meets GLP standards.
- Stored data can be transferred into computer via USB communication interface.
PH320 is a multi-parameter ion meter used for measuring the
ion concentration and pH value of liquids. The meter is equipped
with a BNC connecter that can connects various combination
Ion selective Electrodes.
Model | PH320 |
pH Range | -2.000~20.000pH |
pH Accuracy | ±0.002pH |
Resolution | 0.001, 0.01, 0.1pH, selectable |
Calibration Points | Up to 5 points |
Calibration Solutions | USA(pH1.68/4.01/7.00/10.01/12.45), NIST(pH1.68/4.01/6.86/9.18/12.45), DIN(pH1.09/4.65/6.79/9.23/12.75) |
IonConcentrationRange | 0.001~19999ppm, mg/L or mol/L (Depending on measuring range of Ion selective Electrode) |
Ion Concentration Accuracy | ±0.5% Full Scale (Monovalent), ±1% Full Scale (Divalent) |
Calibration Points | 2 to 5 points |
Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mol/L, mg/L |
mV Range | -1999.9~1999.9mV |
mV Accuracy | ±0.2mV |
Resolution | 0.1, 1mV, selectable |
TemperatureRange | 0~105°C, 32~221°F |
Temperature Accuracy | ±0.5°C, ±0.9°F |
Temperature Calibration | Manual |
Temperature Compensation | 0~100°C, 32~212°F, Automatic or Manual |
Auto-Off | Manual or Automatic (10, 20, 30 minutes after last key pressed, selectable) |
Hold Function | Manual or Automatic |
Stability Conditions | Low or High, selectable |
Calibration due reminder | 0 to 30 days |
Reset Function | Yes |
Memory | 500 data sets with Date/Time stamping |
Output | USB Communication Interface |
Connector | BNC |
Power Requirements | 3×1.5V "AA" Batteries |
BatteryLife | Approximately 150 hours |
Dimensions | 170(L)×85(W)×30(H)mm |
Weight | 300 grams |
