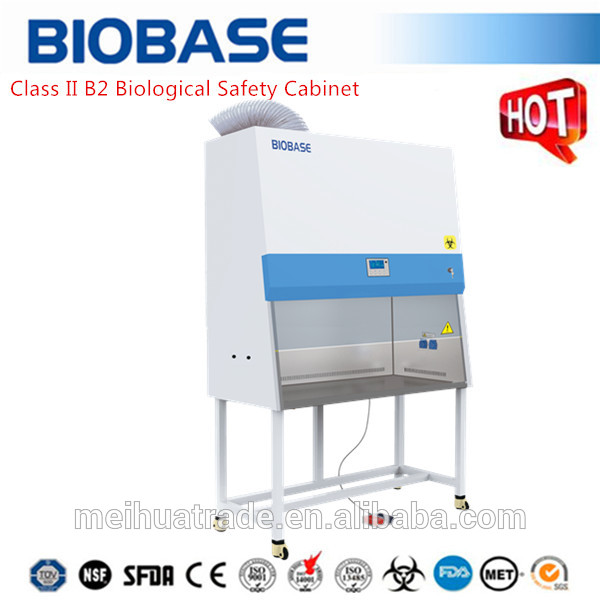

BSC-1800IIB2-X Class II B2 Biological Safety Cabinet/biohazard safety cabinet/microbiological safety cabinet
Features
LCD Display
Large digital display is easy to monitor all the safety parameters at a glance and ergonomically
sized control panel improves user interface.
Work Zone
Work zone, made of 304 stainless steel, is surrounded by negative pressure.
Remote Control
All functions can be realized with it, making the operation much easier and more convenient.
UV lamp
Emission of 253.7 nanometers for most efficient decontamination.
Front Window
Two-layer laminated toughened glass>5mm, anti UV
Footmaster Caster
Universal caster with brake and leveling feet.
Foot Switch
Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm
movement.
Waterproof Socket
2 waterproof sockets are located in the side wall, for optimum convenience of using small devices inside the cabinet.
Exhaust Blower
Centrifugal fan, speed adjustable.
Standard Accessory
Fluorescent Lamp 1pc
UV lamp 2pcs
Base Stand 1pc
Remote control 1pc
Foot switch 1pc
Exhaust blower 1pc
Exhaust duct 1pc
Drain valve 1pc
Waterproof sockets 2pcs
Pipe strap 2pcs.
Optional Accessory:
Water and gas tap
Advantage:
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.
8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
Model | BSC-1100IIB2-X | BSC-1300IIB2-X | BSC-1500IIB2-X | BSC-1800IIB2-X | ||||
Internal Size(W*D*H) | 940*600*660mm | 1100*600*660mm | 1350*600*620mm | 1600*670*630mm | ||||
External Size(W*D*H) | 1100*750*2250mm | 1300*850*2200mm | 1500*750*2250mm | 1800*840*2275mm | ||||
Tested Opening | Safety Height ≤200 mm | |||||||
Inflow Velocity | 0.53±0.025 m/s | |||||||
| Max Opening | 400 mm | |||||||
| Downflow Velocity | 0.33±0.025 m/s | |||||||
Pre-filter | Washable | |||||||
| HEPA Filter | Two, 99.999% efficient at 0.3 um. Filter life indicator. | |||||||
Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV | |||||||
Noise | EN12469≤58 dB / NSF49≤61dB | |||||||
UV Lamp | 30W× 1 | 18W× 1 | 40W× 1 | 40W× 2 | ||||
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. | ||||||||
Fluorescent Lamp | 21W× 2 | 21W× 2 | 28W× 2 | 35W× 2 | ||||
Illumination | ≥1000Lux | |||||||
Consumption | 1050W | 1350W | 1550W | 1900W | ||||
Waterproof Sockets | Two, total load of two sockets: 500W | |||||||
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time,inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | |||||||
Control System | Microprocessor | |||||||
Airflow System | 0 Air Recirculation, 100% Air Exhaust | |||||||
Visual and audio alarm | Filter replacement, window over height, abnormal air flow velocity. | |||||||
Exhaust Duct | 4 meters PVC duct, Diameter:300mm | |||||||
Material | Work Zone: 304 stainless steel | |||||||
Main Body: Cold-rolled steel with anti-bacteria powder coating. | ||||||||
Work Surface Height | 750mm | |||||||
Caster | footmaster caster | |||||||
Power Supply | 110/220V±10%, 60/50Hz | 220V±10% ,60/50Hz | ||||||
Standard Accessory | Fluorescent Lamp, UV lamp*2 ,Base Stand, Remote control, Foot switch , Exhaust blower, Exhaust duct, Drain valve, Waterproof sockets*2, Pipe strap*2. | |||||||
Optional Accessory | Water and gas tap | |||||||
Gross Weight | 350kg | 360kg | 440kg | 470kg | ||||
Package | Main Body | 1250*1050*1870mm | 1450*1050*1870mm | 1640*1050*1860mm | 1940*1050*1860mm | |||
Blower | 1060*970*580mm | 1060*970*580mm | 1060*970*580mm | 1060*970*580mm | ||||
