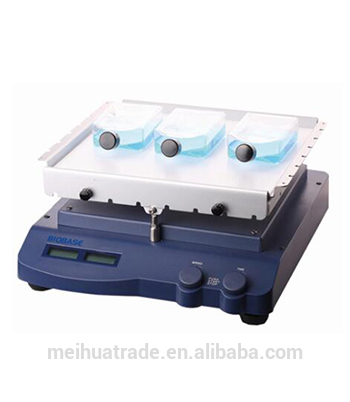

Laboratory shaker
Feature:
- Orbital and Linear Digital Shakers provide smooth and quiet motions for mixing in culture dishes, flasks and beakers.
- Rocking shaker is suitable for mixing applications in wide fields including, gel staining and destaining, washes,
- hybridisations, immune precipitation and Western blots etc
- 3D shaker are suitable for mixing applications in wide fields including, gel staining and destaining, washes, hybridisations, immune precipitation and Western blots etc.
Orbital and Linear Shak
- Compact, orbital and Linear shakers with ideal shaking motion, for a maximum shaking weight of 7.5kg and 2.5kg
- LCD displays speed and timer. Speed, timer and operating mode can be viewed simultaneously
- Wide range of platforms for use with a variety of vessels
- Electronic time switching clock controls time or continuous operation mode
- DC brushless motor, long service life and maintenance free
- Over speed detection and protection
- Free software ShakerPC, computer can control and document all operation values via RS232 interface
Rocking shaker
- Smooth see-saw rocking motion with fixed angle 9°
- Load up to 10kg
- Speed range of 10-70rpm
- DC brushless motor provides reliable and quiet running, maintenance free
- Designed for continuous or timed operation
- Digital speed control and LCD display, speed and timer can be viewed simultaneously
- Wide range of accessory platform to be used for variable size vessels, and non-slip mat holds vessels prevent slipping
3D shaker
- Gentle 3D motion with fixed angle 9°
- Load up to 5kg
- Speed range of 10-70rpm
- DC brushless motor provides reliable and quiet running, maintenance free
- Designed for continuous or timed operation
- LCD display for speed and timer adjustment. Speed and timer can be viewed simultaneously
- Wide range of accessory platform to be used for variable size vessels, and non-slip mat holds vessels prevent slipping
Technical Parameters
Model | SK-O330-Pro SK-L330-Pro | SK-O180-Pro SK-L180-Pro |
Power supply | 110/220V, 50/60Hz | |
Consumption | 30W | |
Shaking movement | Orbital /Linear | |
Orbital diameter [mm] | 10 | 4 |
Max. shaking weight (with attachment) [kg] | 7.5 | 2.5 |
Motor type | External rotor brushless motor | |
Motor rating input [W] | 28 | |
Motor rating output [W] | 15 | |
Speed range [rpm] | 100-500 (Orbital) | 100-800 (Orbital) |
100-350 (Linear) | 100-350 (Linear) | |
Speed display | LCD | |
Timer | Yes | |
Timer display | LCD | |
Time setting range [min] | 1-1199 | |
Run type | Timing / Continuous operation | |
Size [W*H*D mm] | 420*370*100 | 340*300*100 |
Weight [kg] | 13.5 | 8.1 |
Permissible ambient temp. | 5-40℃ | |
Permissible relative humidity | 80% | |
Protection class acc. DIN EN60529 | IP21 | |
RS232 interface | Yes | |
Model | SK-D3309-Pro | SK-R330-Pro |
Power supply | 110/220V, 50/60Hz | |
Power | 40W | |
Motor type | DC motor | |
Rocking motion | 3D orbital | See-saw rocking |
Tilt angle [o] | 9o | 9o |
Max. load capacity (with platform) [kg] | 5 | 10 |
Speed range [rpm] | 10-70 | |
Speed display | LCD | |
Timer | Yes | |
Timer display | LCD | |
Time setting range [min] | 1-1199 | |
Operation type | Continuous/ timed operation | |
Dimensions [D*W*H mm] | 430*360*106 | 410*360*200 |
Weight [kg] | 9 | |
Permissible ambient temperature [℃] | 5-40 | |
Permissible relative humidity | 80% | |
Protection class acc. To DIN EN60529 | IP21 | |
