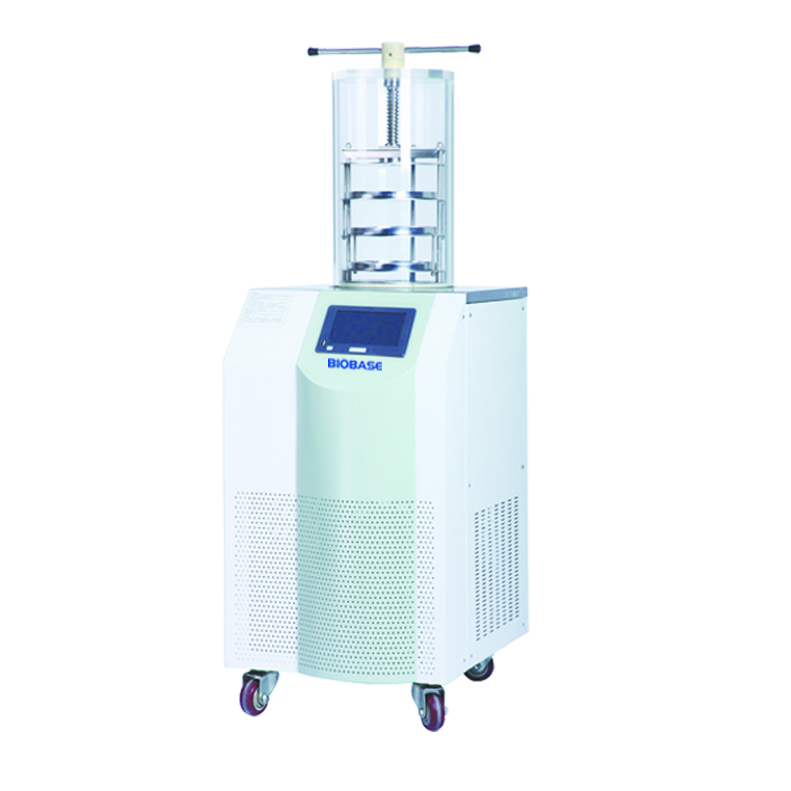

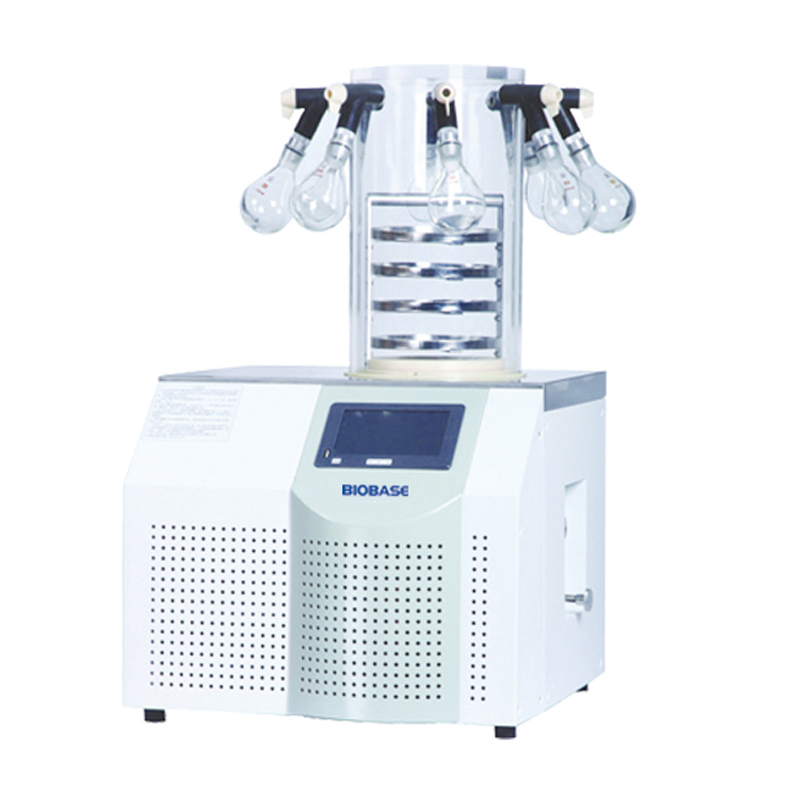

BIOBASE China Factory Price Lab Vacuum Freeze Dryer
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Features of lab vacuum freeze dryer:
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements
TECHINICAL PARAMETERS:
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering 8 port manifold | |||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||
Tray | 4 pcs | 3 pcs | |||||||
Height Between Trays | 50mm | 68mm | |||||||
Cold Trap Temperature | ≤-56℃ | ||||||||
Cold Trap Capacity | 9.5L | ||||||||
Cold Trap Size (Diameter*H) | Φ215*260mm | ||||||||
Vacuum Degree | <10 Pa | ||||||||
Water Capture Capacity | 3 Kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||
Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||||||
Total Qty. Of Vial Φ22 | 260 | 195 | |||||||
Total Qty. Of Vial Φ16 | 480 | 360 | |||||||
Total Qty. Of Vial Φ12 | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Cooling System | Air cooling | ||||||||
Power Supply | 220V/50Hz,60Hz (single phase) 110V/60Hz (single phase) | ||||||||
Power Consumption | 1.3KW | ||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Cold trap defrosting Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump | ||||||||
External Size (W*D*H), mm | 640*610*550/810 | 640*610*550/950 | 640*610*550/990 | ||||||
Package Size(W*D*H),mm/Gross Weight | Main Body | 720*705*730(83kg) | |||||||
Drying Chamber /Vacuum Pump | 590*705*530 (40kg) | 590*705*530 (44kg) | 590*705*530 (50kg) | 590*705*530 (53kg) | |||||
| 1.Why do we cooperate with BIOBASE? |
| BIOBASE group, founded in 1999 and been through high and stable development for 15 years.The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer. |
| 2.How about BIOBASE payment term? |
| T/T in advance & L/C & Weatern Union(40% deposit,the balance before shipment). |
| 3.How about BIOBASE delivery time? |
| 10-15 days after we receive prepayment. |
| 4.How about the package? |
| Plywood case or carton or standard export wooden case. |
5.What"s the loading port? |
FOB to Qingdao port China or as customer"s request |
