600L,800L,1000L Large steam sterilizer Autoclave for sterilize SURGICAL INSTRUMENTS
Name | Large steam sterilizer |
No. of Doors | Double Doors, motorized door |
Chamber | ≥6mm Stainless steel |
Jacket | Carbon steel |

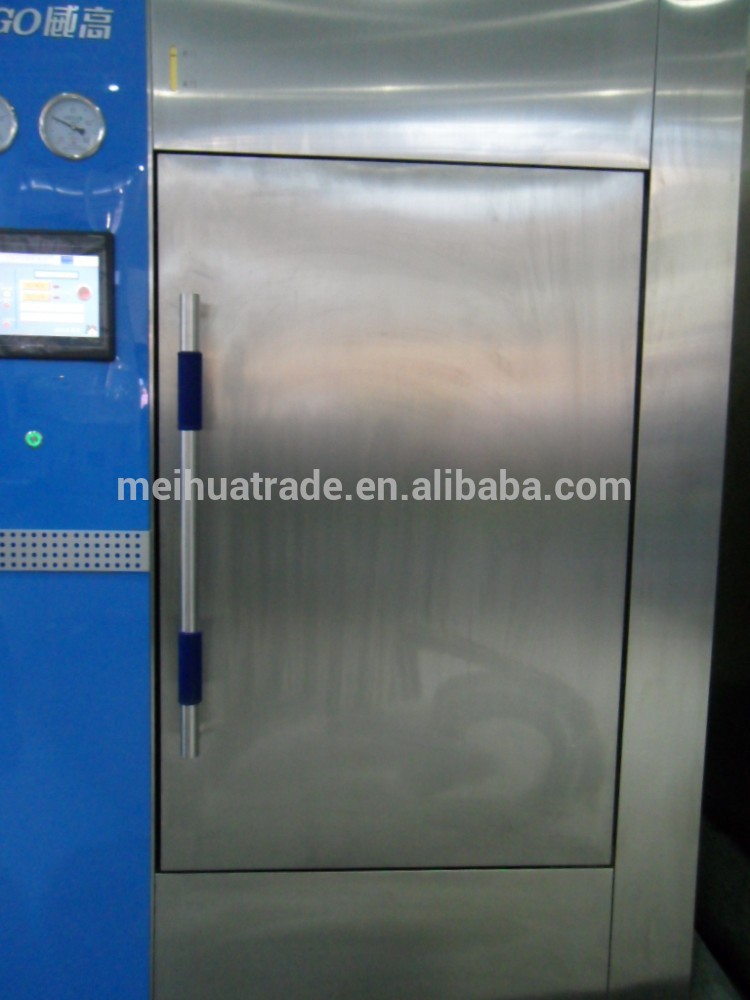

Sealing Door | Stainless steel door plank + Carbon steel rack stiffener |
Cabinet frame | Carbon steel |

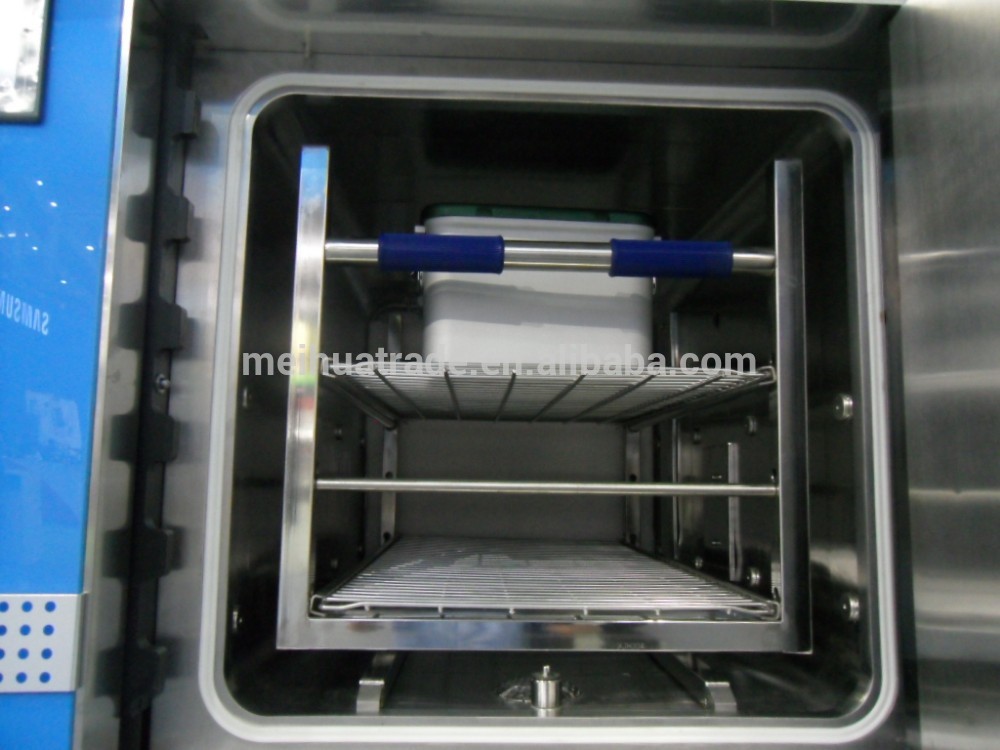

Trolley | Stainless steel trolley inside+ two carbon steel transfer trolley outside |
Outer cover | Stainless steel drawing board |
Piping | Carbon steel |
Vacuum pump | Water-ring vacuum pump |
Control system | Major controller adopts high cost performance programmable controller (OMRON), which has a powerful function, stability and reliability. |
Door structure | The safe, simple, and reliable electricity-lifted sealing door has a pneumatic sealing structure. Door gasket mechanical damage is zero. Driving system failure close is zero.Easy to maintenance,heat preservation,energy-saving. |
Safety feature | Mechanical pressure relief safety valve for chamber and jacket Over-pressure protective device of chamber Over-temperature protective device of chamber Fault self-checking device of temperature sensor Fault self-checking device of pressure sensor Overload protective device of door motor Overload protective device of vacuum pump Protective measure device of door safety Interlock function device of double door Phase sequence detection function device of power network Losing electricity protection function device of door seal Undervoltage detection device of compressor |
Designed working pressure of main body | 0.35MPa |
Designed working pressure of jacket | 0.25MPa |
Started pressure of safety valve | 0.25MPa |
Max.working pressure | 0.23MPa |
Designed temperature | 150℃ |
Max.working temperature | 138℃ |
Temperature range | 105℃~138℃ |
Pulse times range | 0~99 times |
Sterilization time range | 0~9999 seconds |
Drying time range | 0~9999 seconds |
Model | Door | Steam generator | Trolley | Power source |
|
BK-A600 (600L) | Double doors | Without steam generator | One trolley inside and two trolley outside | 380V,50HZ,Three-phase |
|
BK-A800 (800L) | Double doors | Without steam generator | One trolley inside and two trolley outside | 380V,50HZ,Three-phase |
|
BK-A1000 (1000L) | Double doors | Without steam generator | One trolley inside and two trolley outside | 380V,50HZ,Three-phase |
|
Packaging & Shipping:
Mainly packed by Wooden package or other common security package, you also can give us
your special requirments about it. We will try our best to make sure the goods arrive safely.
