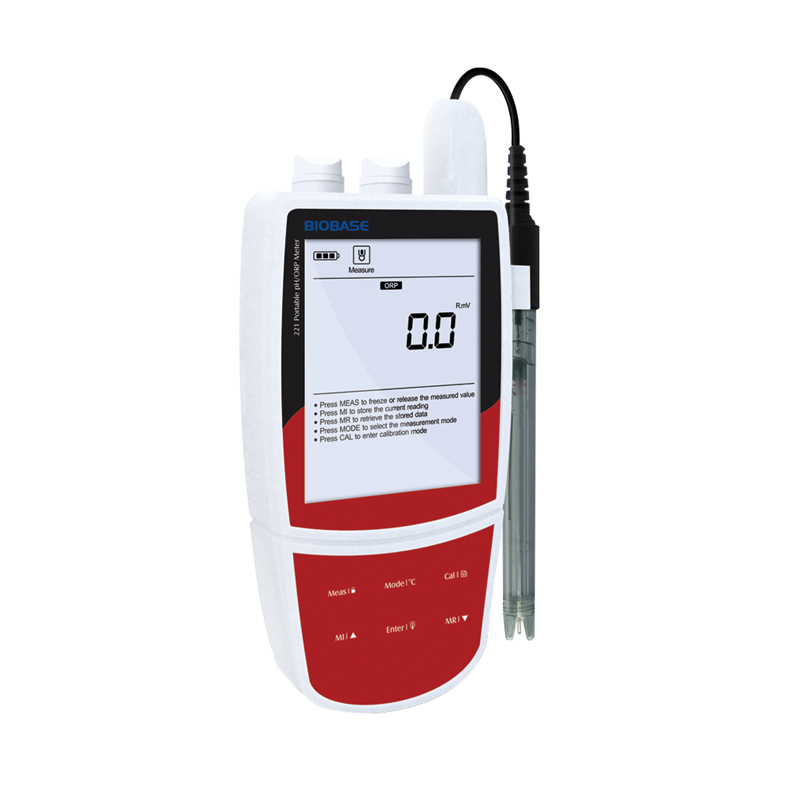

BIOBASE usb interface portable multiparameter meter, pH/ ORP/ Ion meter
Features:
During the pH mode, Up to 5 points push-button calibration with auto-buffer recognition.
selectable pH buffer standards and temperature units.
Automatically calculates and displays electrode slope after calibration.
During ORP mode, Single point offset calibration allows user adjusts displayed value to a known standard.
Absolute or Relative millivolt (R.mV) measurement provides accurate ORP readings.
During the ion mode, 2 to 5 points push-button calibration from low to high concentrations.
selectable multiple concentration units, including ppm, mg/L and mol/L.
Direct readout ion concentration simplifies the elaborate measurement process.
Automatic Temperature Compensation (ATC) ensures highly accurate measurements over the entire range.
Automatic endpoint function freezes the stable measured values for easy reading and recording data.
Calibration due reminder prompts you to calibrate the meter regularly.
Manual temperature calibration provides accurate temperature value.
Help message as a operational guide to helps you understand how to use meter.
Setup menu lets user customizes buffer standards, calibration points, stability conditions, resolution, measurement units, date and time to meet measurement requirements.
Reset function can resumes all settings to factory default values.
Expanded memory stores and recalls up to 500 readings.
Built-in real-time clock stamps stored data to meets GLP standards.
Stored data can be transferred into computer via USB communication interface.
PH320 is a multi-parameter ion meter used for measuring the
ion concentration and pH value of liquids. The meter is equipped
with a BNC connecter that can connects various combination
Ion selective Electrodes.
Technical parameters:
Model | PH320 |
pH Range | -2.000~20.000pH |
pH Accuracy | ±0.002pH |
Resolution | 0.001, 0.01, 0.1pH, selectable |
Calibration Points | Up to 5 points |
Calibration Solutions | USA(pH1.68/4.01/7.00/10.01/12.45), NIST(pH1.68/4.01/6.86/9.18/12.45), DIN(pH1.09/4.65/6.79/9.23/12.75) |
IonConcentrationRange | 0.001~19999ppm, mg/L or mol/L (Depending on measuring range of Ion selective Electrode) |
Ion Concentration Accuracy | ±0.5% Full Scale (Monovalent), ±1% Full Scale (Divalent) |
Calibration Points | 2 to 5 points |
Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mol/L, mg/L |
mV Range | -1999.9~1999.9mV |
mV Accuracy | ±0.2mV |
Resolution | 0.1, 1mV, selectable |
TemperatureRange | 0~105°C, 32~221°F |
Temperature Accuracy | ±0.5°C, ±0.9°F |
Temperature Calibration | Manual |
Temperature Compensation | 0~100°C, 32~212°F, Automatic or Manual |
Auto-Off | Manual or Automatic (10, 20, 30 minutes after last key pressed, selectable) |
Hold Function | Manual or Automatic |
Stability Conditions | Low or High, selectable |
Calibration due reminder | 0 to 30 days |
Reset Function | Yes |
Memory | 500 data sets with Date/Time stamping |
Output | USB Communication Interface |
Connector | BNC |
Power Requirements | 3×1.5V "AA" Batteries |
BatteryLife | Approximately 150 hours |
Dimensions | 170(L)×85(W)×30(H)mm |
Weight | 300 grams |
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I,II,III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Referigerator, Air Shower and Incubator.
-We built an excellent research team which consists of 50 professional engineers
-We have 13 years production experience and a strong technical production team, we adopt hih-tech and state-of art production equipments from Italy, Japan, and Switzerland, etc.
-We have a strong quality control team to inspect all production stage, from the purchased accessory to the finished products.
-We have full sets of advanced quality assurance equipments.
-Certificates: ISO9001;ISO13485;ISO14001; CE; MET; NSF 49.
-We are and will continue to be supplier of the most categaries of laboratory.
