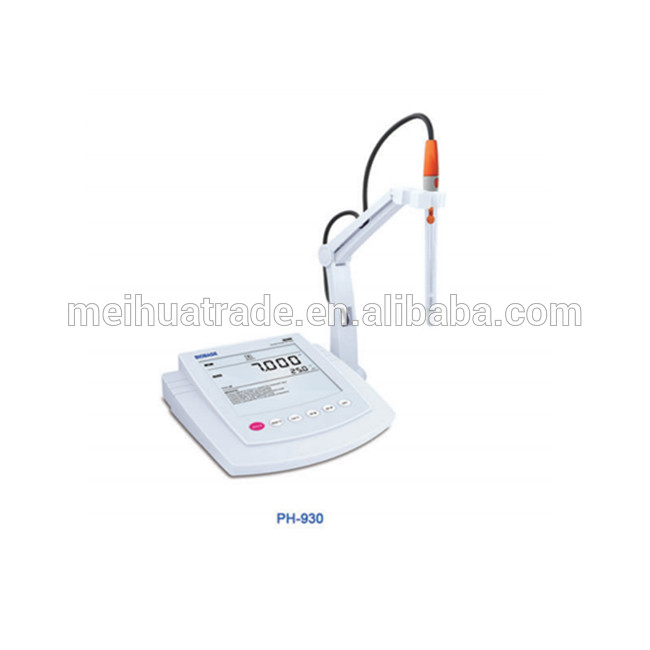

LCD Display 5 points calibration ubs interface PH930 Precision pH/ORP/Ion Meter
Features:
- During the pH mode, Up to 5 points push-button calibration with auto-buffer recognition.
- selectable pH buffer standards and temperature units.
- Automatically calculates and displays electrode slope after calibration.
- During ORP mode, Single point offset calibration allows user adjustsdisplayed value to a known standard.
- Absolute or Relative millivolt (R.mV) measurement provides accurateORP readings.
- During the ion mode, 2 to 5 points push-button calibration from low tohigh concentrations.
- selectable multiple concentration units, including ppm, mg/L and mol/L.
- Direct readout ion concentration simplifies the elaborate measurementprocess.
- Automatic Temperature Compensation (ATC) ensures highly accuratemeasurements over the entire range.
- Automatic endpoint function freezes the stable measured values foreasy reading and recording data.
- Calibration due reminder prompts you to calibrate the meter regularly.
- Manual temperature calibration provides accurate temperature value.
- Help message as a operational guide to helps you understand howto use meter.
- Setup menu lets user customizes buffer standards, calibration points,stability conditions, resolution, measurement units, date and time tomeet measurement requirements.
- Reset function can resumes all settings to factory default values.
- Expanded memory stores and recalls up to 500 readings.
- Built-in real-time clock stamps stored data to meets GLP standards.
- Stored data can be transferred into computer via USB communication interface.
PH930 is a high accuracy meter used for measuring the ion concentration, ORP and pH values of liquids. The meter widely used in environmental studies, chemical labs, swimming pools,spas to monitor the chemical reaction of water
Technical parameters:
Model | PH930 |
pH Range | -2.000~20.000pH |
pH Accuracy | ±0.002pH |
Resolution | 0.001, 0.01, 0.1pH, selectable |
Calibration Points | Up to 5 points |
Calibration Solutions |
USA(pH1.68/4.01/7.00/10.01/12.45), NIST(pH1.68/4.01/6.86/9.18/12.45),DIN(pH1.09/4.65/6.79/9.23/12.75 |
IonConcentrationRange | 0.001~19999ppm, mg/L, mol/L (Depending on measuring range of Ion selective Electrode) |
Ion Concentration Accuracy | ±0.5% Full Scale (Monovalent), ±1% Full Scale (Divalent) |
Calibration Points | 2 to 5 points |
Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm |
mV Range | -1999.9~1999.9mV |
mV Accuracy | ±0.2mV |
Resolution | 0.1, 1mV, selectable |
TemperatureRange | 0~105°C, 32~221°F |
Temperature Accuracy | ±0.5°C, ±0.9°F |
Temperature Calibration | Manual |
Temperature Compensation | 0~100°C, 32~212°F, Automatic or Manual |
Auto-Off | Manual or Automatic (10, 20, 30 minutes after last key pressed, selectable) |
Hold Function | Manual or Automatic |
Stability Conditions | Low or High, selectable |
Calibration due reminder | 0 to 30 days |
Reset Function | Yes |
Memory | 500 data sets with Date/Time stamping |
Output | USB Communication Interface |
Connector | BNC |
LCD Display | Custom dual-display LCD (130×110mm) |
Power Requirements | DC5V, using AC adapters, 220VAC/50Hz |
Dimensions | 210(L)×188(W)×60(H)mm |
Weight | 1.2kg |
