Click on the image to view the original image
- Applicable Industries:
- Laboratory
- Application:
- Medicine Processing, Chemicals Processing
- Condition:
- New
- Type:
- Freeze Drying Equipment
- Place of Origin:
- Shandong, China
- Brand Name:
- BIOBASE
- Voltage:
- AC220V/110V
- Power(W):
- 1.3W
- Dimension(L*W*H):
- 590*705*530
- Weight:
- 40KG
- Certification:
- ISO, CE
- Warranty:
- 3 years
- After-sales Service Provided:
- Online support, Video technical support
- Key Selling Points:
- Eco-friendly
- Cold Trap Capacity:
- 9.5L
- Installation:
- Engineer Guide
- Cold Trap Temperature:
- lower -56
- Cooling System:
- Air cooling
- Supply Ability:
- 200 Unit/Units per Month
- Packaging Details
- wooden package
- Port
- Qingdao

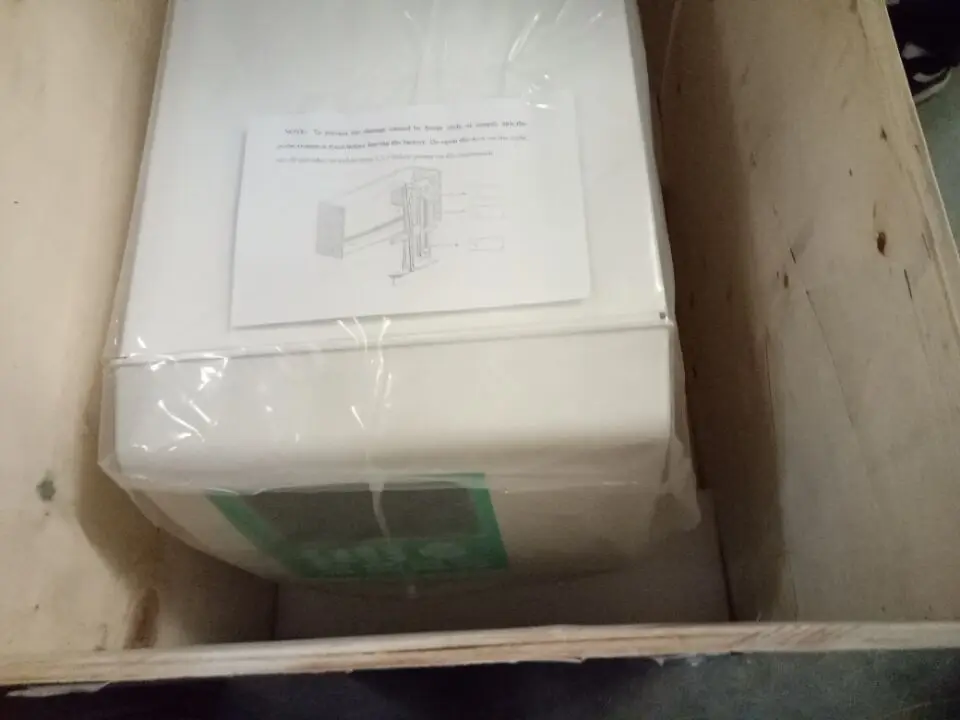

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 25 To be negotiated

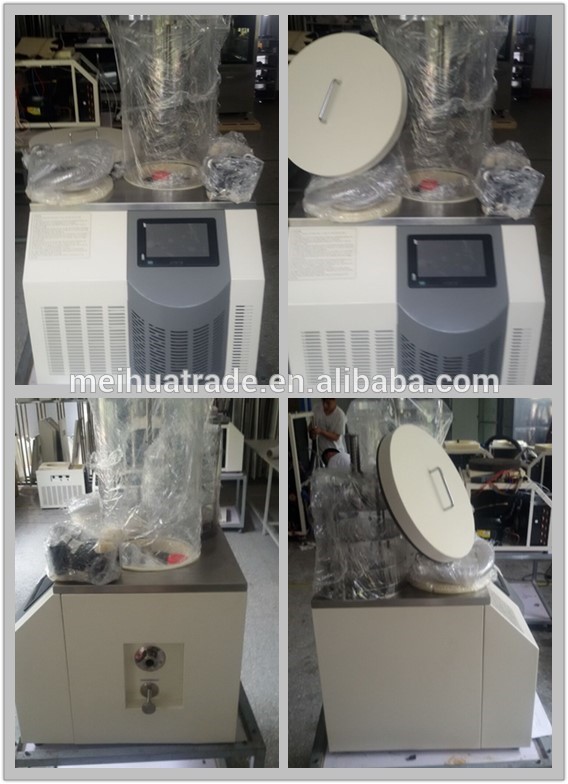

Laboratory Vacuum Freezer Dryer Price & lyophilizer price
The Freezer Dryer is suitable for freeze drying test of laboratory biomedical samples,widely used drugs,biological products,chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines,blood products, hormones and other biological tissue enzymes,freeze-drying technology is applied ...
1.The LCD display panel,which is for English language,it shows drying curve,cold trap temperature, running time,vacuum degree etc.
2.Large opening trap,no coil inside,with samples pre-freeze function
3.Cascade refrigeration technology,imported compressor which is low noise,;large cooling capacity
and high capacity fo water-capture.
4.The pre-freezer shelf can be used as guide barrel to speed up the drying rate.
5.Cold trap and operation pane are made by stainless steel,corrosion-resistant and easy to clean.
6.Transparent bell-cap drying cabinet is visual and safe
7.The sample shelves are stainless steel,which can be adjustable can be adjustable as per the requirement.
8. Valve with Nitrogen is optional
Model | BK-FD10S | BK-FD10T |
Cold Trap Temp (°C) | -55/-80 | -55/-80 |
Vacuum Degree(Pa) | < 10 | < 10 |
Cold surface area for freeze drying (m2) | 0.12 | 0.075 |
Water Capture Capability (kg/24) | 3 | 3 |
Load materials(ml) | 1200 | 750 |
Layer | 4 | 3 |
Plate load materials/shelf(ml) | 300 | 250 |
| Material tray size( Φ*h) | 200*20 | 180*20 |
Freezer drying time(h) | 24 | 24 |
External Dimmention(mm) | 582*625*530 | 582*625*960 |
Power Supply | 110V/220V,50/60Hz | 110V/220V,50/60Hz |
Vacuum Freezer Dryer Optional Accessories:
1.Communication interface
2.Imported vacuum pump
3.Freeze-dried vials
4.Heating functions of shelves
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
If you want to learn more about our company, please click here to see more.
