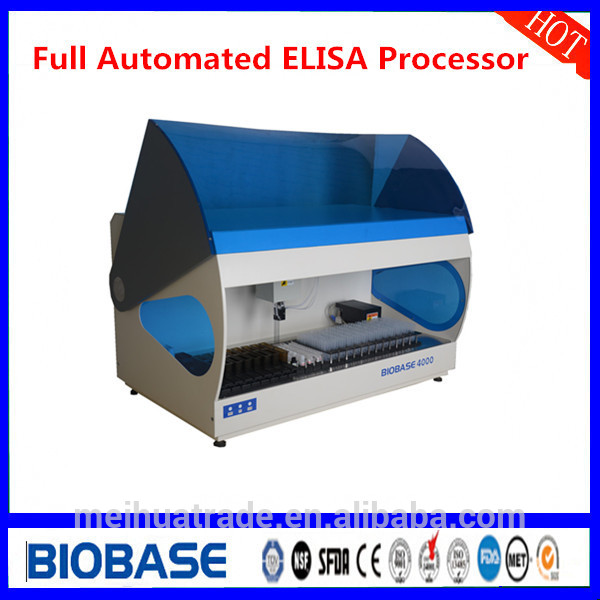

Biobase1000A fully automated ELISA analyzer is a 2 micro-plate fully automated processor able to operate the dispense, incubation, reading, data processing and storage of results.
Its user friendly approach for both software and hard ware allows the operator to start working with the instrument as soon as it is out of the box, no pre-adjustments or calibrations required.
Model | Biobase1000A |
Type | Fully automated ELISA analyzer |
Sample racks | 60 or 80 – 12 mm sample tubes or 40 - 16 mm sample tubes |
Dilution rack | 92 positions |
Reagents holder | modular racks to hold calibrators, controls and reagents for 8 methods on line |
Liquid reservoirs | external tanks equipped with level sensors; 2 washing buffer |
Microtiter plates | 2 plates (96 wells) with incubation capability, from room temperature to 45 °C |
Dispensing system | 1 aspirating-dispensing probe with X-Y-Z movement; dilution system with a syringe of 1000 μl, continuous flow washing station |
Washing system | two 8 nozzle on line manifolds with automatic adaptation for the different micro-plates height |
Washing Residual volume | < 3μl |
Washing inaccuracy | CV < 5 % with 300 μl |
Readingsystem | 8 independent photometric channels for mono and bichromatic reading |
Optical filters | 2 filters (450 and 630 nm); 2 more on request (max 4 filters) |
Readinginaccuracy | ± 1% from 0.000 to 1.500 OD ± 2% from 1.500 to 3.000 OD |
Dispensation | from 8 ml to 1000 ml with 1μl resolution; inaccuracy ±1% with 100 μl |
Software | Windows 98 and XP operating system, to set up the work list, patient reports and results filing; calibration curves storage for each carried-out test |
Connection | LIS interface capability, work list set up from Host computer. Capability of connecting more instruments to a single PC. |
Power Supply | 200/110 VAC, 50-60 Hz |
Dimension | 620 x 820 x 720 |
Weight | 80 Kg |
OPTIONAL: | Sample Bar Code Reader |
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
At present, we are dealing on laboratory equipment and medical analytical instruments, such as
biological safety cabinet, laminar flow clean bench, fume hood, refrigerator and freezer, incubator, oven, autoclave, freeze dryer, spectrophotometer, centrifuge, Elisa reader and washer, Semi&Auto biochemistry analyzer, biochemistry reagents etc.
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave anf Incubator.
We have more than 800 employees and 2000 square meters production base, our output per year is amount to 10000 units. Pursuing the highst quality is the tenet if BIOBASE. We hope everybody will enjoy BIOBASE service to keep away from the infectious disease.
Our advantages:
-We built an excellent research team which consists of 50 professional engineers
-We have 14 years production experience and a strong technical production team, we adopt high-tech and state-of-the-art production equipments from Italy, Japan and Switzerland, tec.
-We have a strong quality control team to inspect all production stage, from the purchased accesory to the finished products.
-We have full sets of advanced quality assurance equipments
We have ISO9001 quality management system; ISO14001 environmental managemnet system, ISO13485, CE mark, MET and NAF49 certificate.
We got EN12469 certificate for Biosafety Cabinet in 2013.
Contact: Helen Li
