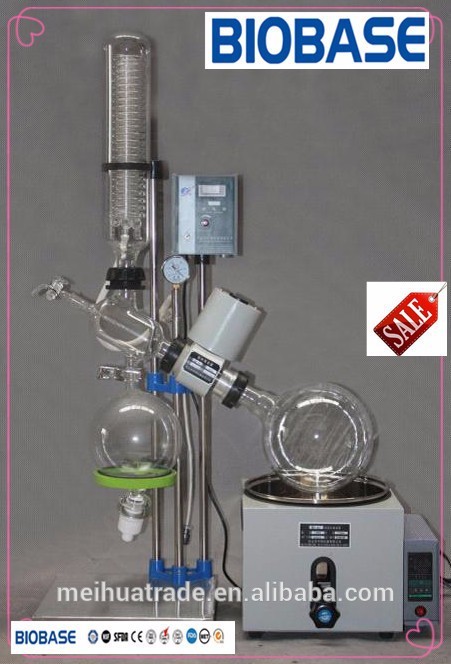

RE-201D/301/501 Rotary Evaporator
1.Easy to read large digital LCD screen displays heating temperature ,
Rotation speed and timing
2.Large 5L water-oil heating bath with heating temperature range of RT to 180℃
3.Speed range from 20 to 280 rpm
4.Heating bath with precise temperature control and adjustable safety circuit
5.Designed a detachable operating panel allows remote control
6.Patented condenser (cooling surface 1500 cm2) with excellent cooling effect
7.Motorized lift with quick-action,automatic release evaporating flask to top position in case of power failure
8.Adjustable final position recognition to protect operator and sample against breakage
9.Evaporating flask with an ejector,convenient to remove
10.Available with timer function to precise control processing
11.Chemical-resistant double PTFE system and patented pressure spring provide excellent sealing
12.PC can control and document all parameters via RS232 interface (USB)
Voltage | 100-240 |
Frequency | 50/60 |
Power | 1400 |
Motor Principle | DC brushless motor |
Speed Range(rpm) | 20-280 |
Speed Display | LCD |
Reversible Direction of Rotation | Yes |
Heating Temperature Range(℃) | RT-180 |
Heat Control Accuracy(℃) | ±1 |
Heat Output(W) | 1300 |
Temperature Display | LCD |
Lift | Motor |
Stroke(mm) | 150 |
Timer | Yes |
Timer Display | LCD |
Timer Setting Range(min) | 1-999 |
Overall Dimensions(D*W*H mm) | 420*100*580 |
Weight(kg) | 20 |
Permissible Ambient Temperature(℃) | 5-40 |
Permissible Relative Humidity | 80% |
Protection Class acc.To DIN EN60529 | IP20 |
RS 232 Interface | Yes |
