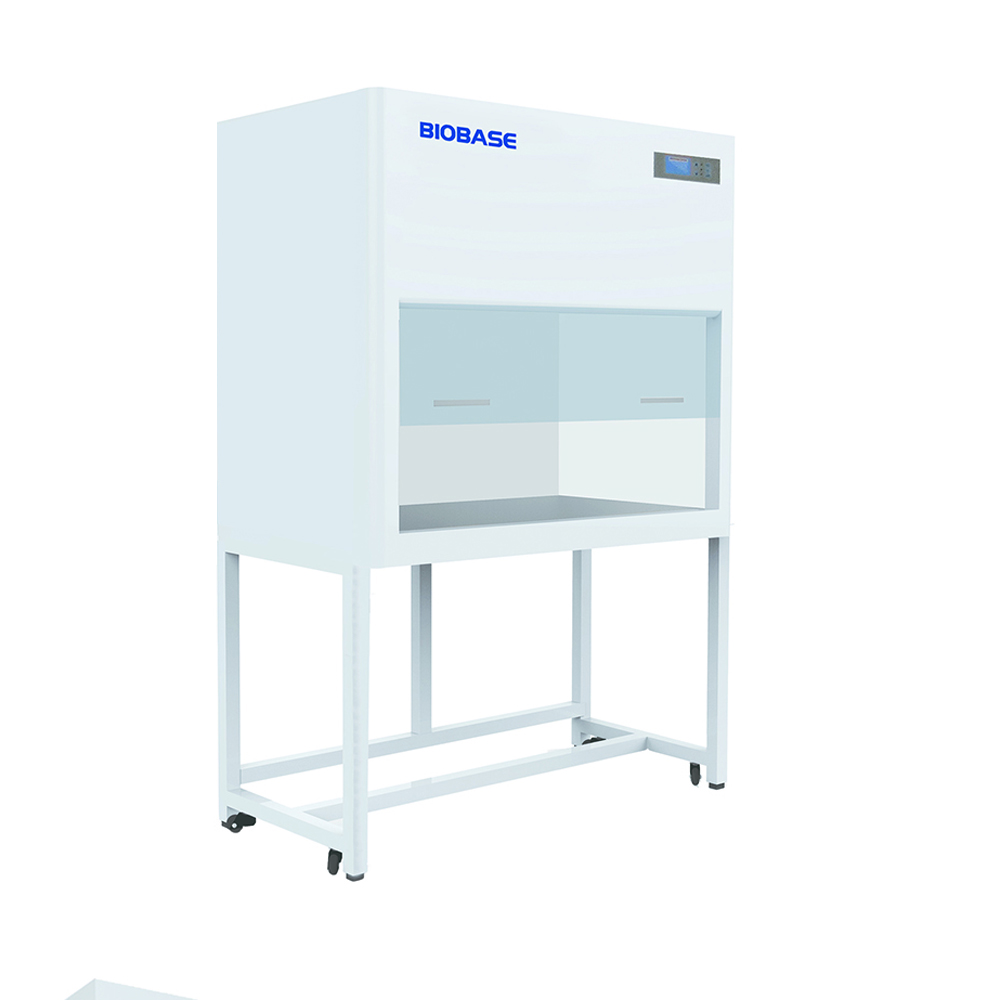

Laminar Flow Cabinet-product protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Standard Accessory
Fluorescent lamp 1pc
UV lamp 2pcs
Base stand 1pc
Technical Parameters:
| Model | BBS-V800 | BBS-DDC | BBS-SDC |
| External Size(W*D*H), mm | 802*615*1575 | 1040*600*1730 | 1440*600*1730 |
| Internal Size (W*D*H), mm | 800*600*540 | 940*580*540 | 1340*580*540 |
| Work Surface Height | 660mm | 730mm | 730mm |
| Display | LED Display | ||
| Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable. | ||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||
| Work Table: 304 stainless steel | |||
| Pre-filter | Polyester fiber, washable | ||
| HEPA Filter | 99.999% efficiency at 0.3um | ||
| Noise | <60dB | ||
| Front Window | Manual,5mm toughened glass, anti-UV | ||
| Max Opening | 490mm | 350mm | |
| Fluorescent Lamp | 14W*1 | 21W*1 | 28W*1 |
| UV Lamp | Emission of 253.7 nanometers | ||
| Consumption | 350W | 350W | 600W |
| Waterproof Socket | No | ||
| Caster | Universal wheel with leveling feet | ||
| Power Supply | 110/220V±10%;60/50Hz | ||
| Standard Accessory | Fluorescent lamp, UV lamp*2 ( for all models ) Base stand | ||
| Gross Weight | 120kg | 150kg | 210kg |
| Package Size (W*D*H), mm | 960*770*1800 | 1200*780*1350 | 1600*780*1350 |
