BIOBASE China Biosafety Cabinet 11236BBC86
11236BBC 86 is a Class II A2 biological safety cabinet. Biobase is the only factory passed American NSF standard in China.
Advantage:
1. LCD Display
It shall work no less than 30, 000 hours continually.
2. Negative pressure plenum surrounds contaminated positive pressure plenum; No fabric bags are used.
3. One-piece removable worksurface easy to clean.
4. Frameless sash, easy to clean.
5. Filter, Blower and Fluorescent lamp working time check.
According to the performance criteria:
1 US Standard ANSI/NSF49: 2002
2 European Standard EN12469: 2000
3 Chinese Standard YY0569-2005
Optional Accessory

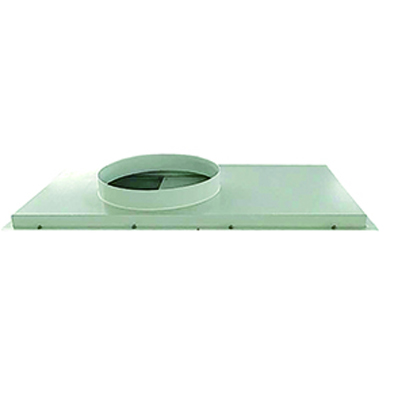

1. Exhaust system (exhaust collar, exhaust blower and duct)
2. Air curtain tester
3. Formalin Fumigation sterilizer and Ammonnium Hydrogen Carbonate Neutralizer(filter changing tools)
| Models | 11235BBC86 ( 3") | 11228BBC86 ( 4") | 11236BBC86 ( 6") |
| External Dimensions (W x D x H) | 1100x740x2380mm 43.3""x29.1""x93.7"" | 1421x850x2180mm 55.9""x33.4""x85.8"" | 1886×750×2335 74.3""x29.5""x91.9"" |
| Internal Dimensions (W x D x H) | 914x600x610mm 36""x23.6""x24"" | 1220x665x650mm 48""x26.1""x25.6"" | 1700x600x610mm 66.9""x23.6""x24"" |
| Working Opening | 200mm ( 8"") | ||
| Average Airflow Velocity | inflow: 0.53 m/s (105 fpm) downflow:0.35 m/s (70 fpm) | inflow: 0.53 m/s (105 fpm) downflow:0.35 m/s (70 fpm) | inflow: 0.53 m/s (105 fpm) downflow:0.35 m/s (70 fpm) |
| Airflow Volume | inflow: 349 m3 / h (205 cfm) downflow 61%:550 m3 / h (323 cfm) exhaust 39% :349 m3 / h (205 cfm) | inflow:465 m3 / h (275 cfm) downflow 67%:956 m3 / h (571 cfm) exhaust 33% :465 m3 / h (275 cfm) | inflow: 649 m3 / h (382 cfm) downflow 61%:1006 m3 / h (592 cfm) exhaust 39% :649 m3 / h (382 cfm) |
| HEPA Filter | >99.999% for particle size >0.3 microns | ||
| Sound Emission | NSF / ANSI 49: 61 dBA | ||
| EN 12469 : 58 dBA | |||
| Fluorescent Lamp Intensity | >800Lux | ||
| Cabinet construction | working area:1.5mm 304stainless steel | ||
| Frame: cold-rolled stel sheets with electrostatic coating | |||
| Motors | one ECM motor | ||
| speed adjustable, high efficiency and low power consumption, 110V & 220V acceptable | speed adjustable, high efficiency and low power consumption, 110V & 220V acceptable | speed adjustable, high efficiency and low power consumption, 110V & 220V acceptable | |
| Glass control | manual | motor control | manual |
| Display Screen | LCD | VFD | LCD |
| UV | 30W germicidal UV lamp | ||
| emission of 253.7 nanometers for most efficient decontamination | |||
| power socket | one, waterproof type, 5 holes,500W | ||
| adjustable base stand | height range:630mm-845mm | ||
| petcock | two ( air, gas vacuum) | two ( air, gas vacuum) | two ( air, gas vacuum) |
| Filter Guard Type | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |
| Ground resistance | < 0.10 Ω | < 0.10 Ω | < 0.10 Ω |
| Voltage resistance | 2 seconds no breakdown with DC1200V | 2 seconds no breakdown with DC1200V | 2 seconds no breakdown with DC1200V |
| Electrical | AC220V-110V,50Hz/60HZ, Full load Amps:9A, BTU/Hr. 1689 | AC110V,60HZ, Full load Amps:9A, BTU/Hr. 1689 | AC220V-110V,50Hz/60HZ, Full load Amps:9A, BTU/Hr. 1689 |
| Standard Accessory | one spare UV lamp, 5m Power cord, fuse tube(six),power key | ||
| package size (LxWxH ) | 1250x915x1890(mm) | 1600x1050x1870mm | 2040x915x1920(mm) |
| Gross weight(kg) | 300 | 380 | 400 |
