BIOBASE China Vacuum Lyophilizer / Freeze Dryer for lab or food
BK-FD12 /18 Series Vacuum Freeze Dryer-Upright
BK-FD12/18 Series Vacuum Freeze Dryer (Upright Type)
Purpose:
The machine is suitable for freeze drying test of laboratory biomedical samples.
Series:
The product has 4 series: Standard(S), Top-press(T), Multi-pipeline(P) and top-press(PT).
Specification:
The LCD display panel can display drying curve, cold trap temperature, running time, vacuum degree, etc;
Large capacity Ice condenser trap and without coil inside, it can be used for samples pre-freeze function;
Cascade refrigeration technology, famous brand compressor which is low noise, large cooling capacity;
The pre-freeze shelf can be used as guide barrel to speed up the drying rate;
Ice condenser trap and operation panel are made by stainless steel, corrosion-resistant and easy to clean;
Drying cabinet is visual and safe, which is easy to check the drying procedure;
The sample shelves are stainless steel, which can be adjustable as per the requirement;
Valve with Nitrogen is optional
| Model | BK-FD12S | BK-FD12T | BK-FD12P | BK-FD12PT |
| Ice Condenser Temp(°C) | 0.625 | |||
| Vacuum Degree(Pa) | <10 | |||
| Freeze Drying Area(m2) | 0.12~0.18 | 0.075 | 0.12~0.18 | 0.075 |
| Water Capture Capacity(Kg/24h) | 4 | 4 | 4 | 4 |
| Material Loading Capacity(ml) | 1200~1800 | 750 | 1200~1800 | 750 |
| Material Loading Capacity/shelf(ml) | 300 | 250 | 250 | 250 |
| Tray specification(*h mm) | 200*20 | 180*20 | 180*20 | 180*20 |
| Quantity of Tray | 4~6 | 3 | 4~6 | 3 |
| Freeze drying time(h) | 24 | |||
| Multi-Pipeline and bottles(unit) | / | / | 8 | 8 |
| bottle 20 | 260 | 165 | 165 | 165 |
| bottle 18 | 480 | 285 | 285 | 285 |
| bottle12 | 920 | 560 | 560 | 560 |
| Exterior dimension(W*D*H)mm | 480*655*915/1345 | |||

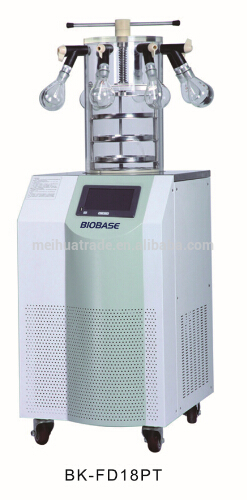

| Model | BK-FD18S | BK-FD18T | BK-FD18P | BK-FD18PT |
| Ice Condenser Temp(°C) | 0.625 | |||
| Vacuum Degree(Pa) | <10 | |||
| Freeze Drying Area(m2) | 0.18~0.27 | 0.12 | 0.18~0.27 | 0.12 |
| Water Capture Capacity(Kg/24h) | 6 | 6 | 6 | 6 |
| Material Loading Capacity(ml) | 1800-2700 | 900 | 1800-2700 | 900 |
| Material Loading Capacity/shelf(ml) | 450 | 300 | 300 | 300 |
| Tray specification(*h mm) | 240*20 | 200*20 | 200*20 | 200*20 |
| Quantity of Tray | 4~6 | 3 | 4~6 | 3 |
| Freeze drying time(h) | 24 | |||
| Multi-Pipeline and bottles(unit) | / | / | 8 | 8 |
| bottle 20 | 360 | 270 | 270 | 270 |
| bottle 18 | 740 | 555 | 555 | 555 |
| bottle12 | 1320 | 990 | 990 | 990 |
| Exterior dimension(W*D*H)mm | 560*660*955/1470 | |||
