BIOBASE China Customized PVC anti-static Soft Wall Class 100 medical laboratory Pharmaceutical clean room/ FFU clean booth
Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.

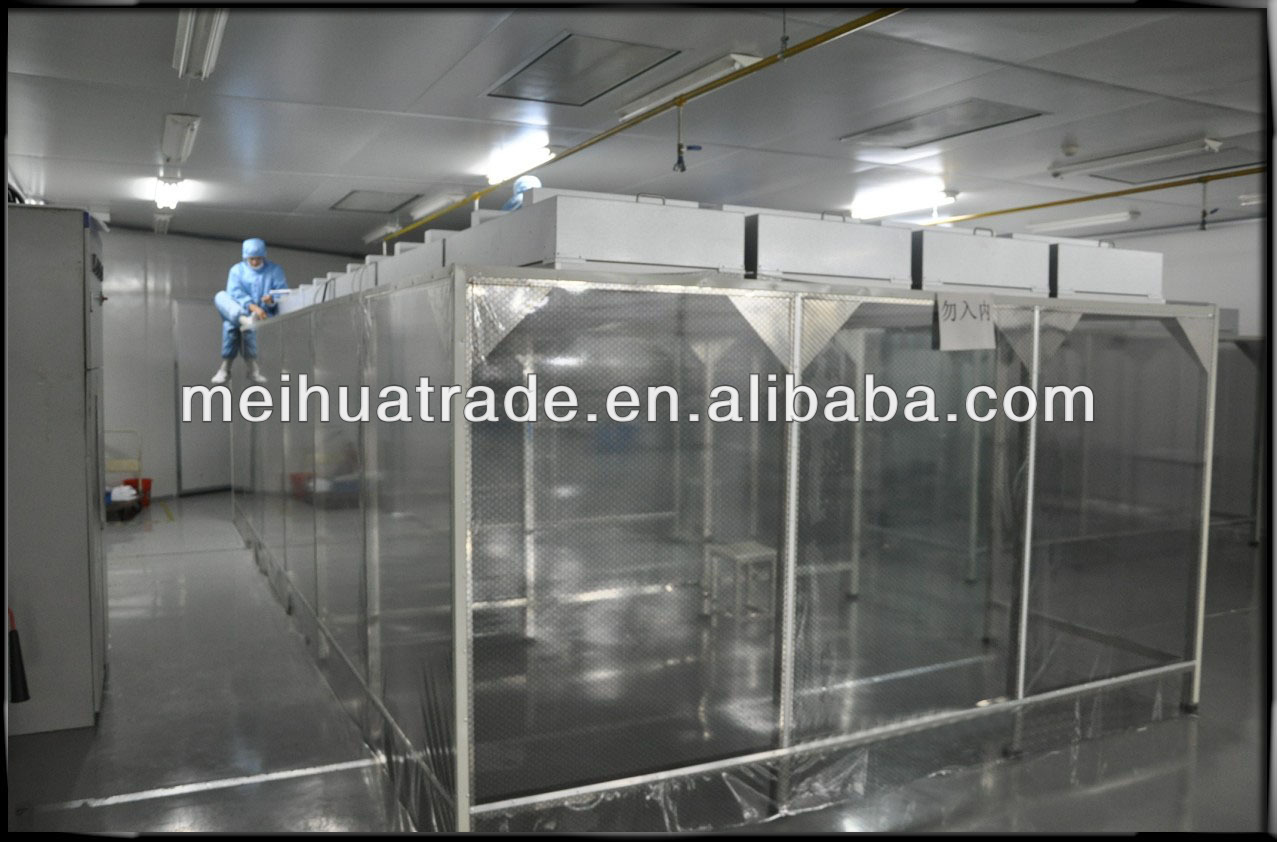

Reference picture

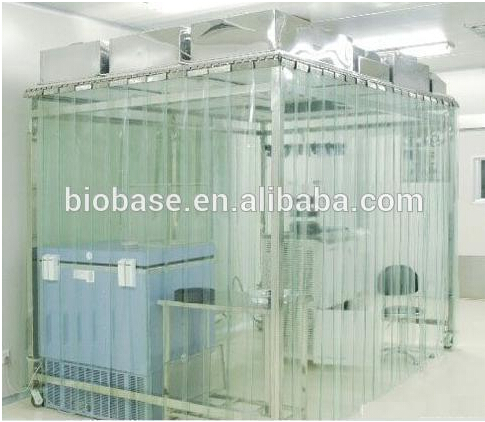

Reference picture
FFU(Fan Filter Unit), which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for clean room applications.
Microprocessor Control Panel
Users can control the fan, light, UV and adjust the air velocity with it.
Design drawing
Soft Wall Material
PVC anti-static dustproof curtain.
Features
1. It can be used singly or combined.
2. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
3. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement( Universal wheel can be installed)
4. Customized design is welcome.
Model | BKCB-1500 | BKCB-2000 | BKCB-3000 | BKCB-5000 |
External Size (W*D*H) mm | 1500*2000*2500 | 2000*3000*2500 | 3000*4000*2500 | 5000*5000*2500 |
HEPA Filters | 99.999% efficiency at 0.3 um | |||
Consumption | 500W | 800W | 1000W | 1600W |
Weight | 350kg | 420kg | 570kg | 820kg |
FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
Clean Level | ISO 5 (Class 100), Class A | |||
Control System | Microprocessor control system | |||
Rectangular Tube Material | Stainless steel/ aluminum/ painting steel sheet | |||
Wall Material | Anti-static dustproof curtain | |||
Blower | Built-in centrifugal blower; speed adjustable | |||
UV Lamp | Emission of 253.7nm, with UV timer | |||
Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
Noise | ≤58db | |||
Power Supply | 110/220V±10%, 50/60HZ | |||
Customized design for clean level, size or material is available | ||||
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
