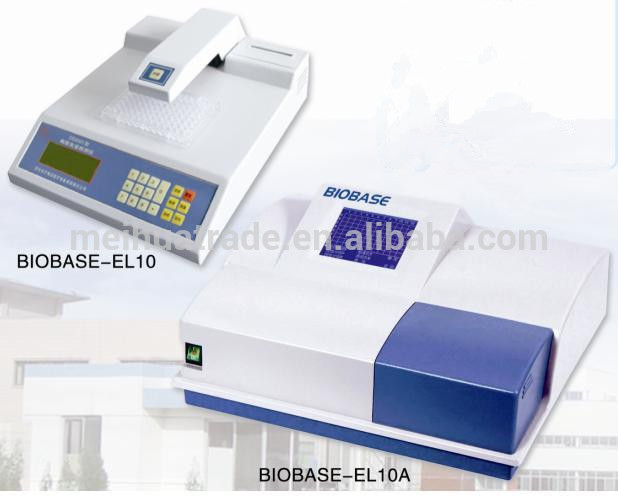

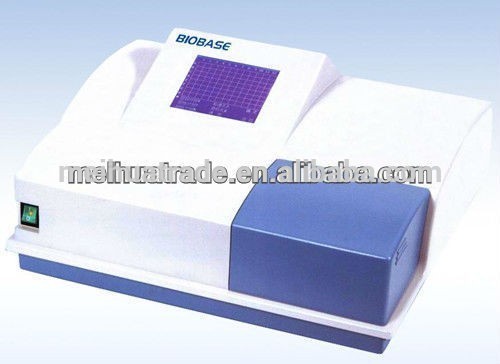

Biobase-EL10 Semi auto ELISA Microplate Reader and Biobase-EL10A Full auto Elisa Reader for hospital/clinic/antibody detection
BIOBASE EL-10 enzyme-linked immune ELISA reader has excellent performance of accuracy; stability. It is widely used in the fields of hospital clinical diagnosis, immune pathology testing, microbial antigen and antibody detection, parasitic diseases diagnosis, blood disease diagnosis, endocrine disorder measure, plant diseases and insect pets Studies etc.
Features:
1. Medical Fields: (Elisa method testing items)
Hepatitis test series: HAV, HBV, HCV, HDV, HEV, HGV,AIDS (HIV), Syphilis (TP), TORCH, Thyroid hormone series, Sex hormone test series
2. Food and feed Fields:
Chloramphenicol, Aflatoxin, Melamine, Pesticide residue, etc.
3. Laboratory Fields:
The ingredient content of lab experiment items, etc.
Model | BIOBASE-EL10 |
Light source | Tungsten halogen lamp(6V 10W)Average lifespan≥5000h |
Detector | Photomultiplier Tube |
Mocrotiter plate | Any format |
Wavelength range | 400-700nm |
Filter | 450,492,630nm,accuracy:±2nm, width≤7nm,other wavelength(410-600nm) optional |
Reading range | 0.000-3.000Abs |
Measurement Method | Manual single-wavelength(vertical single-optical-channel) |
Computing Model | Qualitative(S/CO,P/N,N/P,Inhibitory rate, etc)and Quantitative analysis |
Repeatability | Standard coefficient of variation CV≤1% |
Stability | ≤±1% |
Resolution | 0.001Abs(display, print); inner calculating 0.0001Abs |
Operating model | Membrane keypad |
Display | 4*12 LCD display |
Printer | Built-in |
Power supply | AC220V±22v,50Hz |
