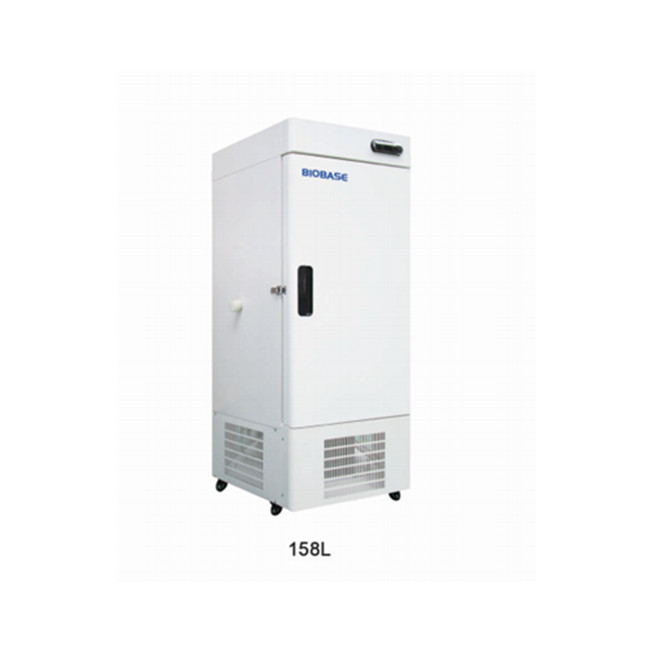

BIOBASE -86 degree alarm function Ultra low Temperature deep Freezer
It is suitable for blood banks, hospitals, sanitation and anti epidemic stations,
electronic industries, university laboratories, military industries, and pelagic fishery companies.
1. Audio and visual alarm.
2. Double Danfoss compressors with Germany EBM fan motor (only for BDF-86V348 & BDF-86V950)
3. Stainless steel inner chamber with round angel structure, easy for cleaning.
4. Double-layer door design, protecting air leakage.
5. Front door with safety lock.
Model | BDF-86V50 | BDF-86V158 | BDF-86V398 | BDF-86V598 | BDF-86V950 | ||
External Size (W*D*H)(mm) | 540*620*1115 | 700*700*1580 | 850*930*1950 | 940*950*1920 | 1500*1000*2000 | ||
Internal Size (W*D*H)(mm) | 361*429*406 | 460*455*800 | 550*630*1140 | 700*680*1255 | 1000*700*1336 | ||
Capacity | 50L | 158L | 398L | 598L | 950L | ||
Type | Vertical | ||||||
Temp. Range | -40℃~-86℃ | -40℃~-86℃ | |||||
Controlling Precision | 0.1℃ | ||||||
Control System | Microprocessor control, keyboard lock function | ||||||
Display | LED display | ||||||
Alarm | Temperature higher/lower alarm, filter inspection alarm, ambient temperature alarm | Temperature higher/lower alarm, filter inspection alarm, ambient temperature alarm | |||||
Refrigeration Type | Direct refrigeration | ||||||
Refrigerant | Mixture refrigerant, composed of R134a, R404a, R23, R410A, N2, CFC free | ||||||
Compressor | Danfoss compressor with Germany EBM fan motor | ||||||
1set | 1set | 1set | 1set | 2sets | |||
Condenser & Evaporator | Material is cupreous | ||||||
Construction | Unibody design, two-times foaming technology, 100-155 mm foaming insulation, with VIP+ | ||||||
Material | Internal | 304 Stainless steel | |||||
| External | Cold-rolled steel coated with anti-bacteria powder | |||||
Door | Front opening lockable door with full height handle, with vacuum release port | ||||||
Chamber with Inner Door | 1 | 3 | 4 | 4 | 3 | ||
Shelves | 1 adjustable SS304 | 2 adjustable SS304 | 3 adjustable SS304 | ||||
Test Port | 1, Φ18mm | 1, Φ18mm | 1, Φ18mm | ||||
Remote Alarm Port |
Optional |
Optional | Optional | ||||
Caster | 4 universal casters with brake and leveling feet | ||||||
Consumption | 450W | 630W | 720W | 990W | 1600W | ||
Power Supply | 220V±10%; 50Hz/60Hz | ||||||
Optional Accessory | Chart recorder, storage racks, storage boxes. | ||||||
Package Size (W*D*H)(mm) | 760*685*1170 | 870*860*1800 | 1025*1080*2170 | 1070*1030*2150 | 1350*1080*2150 | ||
Gross Weight | 95kg | 150kg | 248kg | 318kg | 330kg | ||
