BIOBASE new design Hand wheel vertical autoclave for lab and medical use price

Click on the image to view the original image

Product：	views：3BIOBASE new design Hand wheel vertical autoclave for lab and medical use price
Branch：	BIOBASE
Type：	Pressure Steam Sterilization Equipments
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:40

Product Details

Overview

Quick Details

Type:: Pressure Steam Sterilization Equipments

Brand Name:: BIOBASE

Model Number:: BKQ-Z50II

Place of Origin:: Shandong, China

Instrument classification:: Class I

Chamber material:: SUS304 medical stainless steel

Rated working pressure:: 0.175MPa

Rated working temp:: 130℃

Max pressure:: 0.2Mpa

Timing range:: 0-999min

Temp range:: 50-126℃

Consumption:: 5.8KW

Power supply:: 110/220V,50/60Hz

Standard accessories:: Stainless steel basket*2

Packing size:: 610*700*1500mm

Supply Ability

Supply Ability:: 200 Unit/Units per Month

Packaging & Delivery

Packaging Details: standard export package

Port: Qingdao

Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	10	To be negotiated

BIOBASE special design Hand wheel vertical autoclave for waste, dressings, equipment, rubber, culture medium

Product Description

It is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.

Advantages

1.Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying run automatically.

2.LED screen displays all steps of full process as well as error codes.

3.Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.

4.Adopting certain temperature (98~102℃)exhaust method and dynamic pulse exhaust method to completely empty the cold air inside chamber for ensuring steam saturability.

5.Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.

6.Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.

7.Independent knock-down service window, easy for repairing and maintenance.

8.Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.

Safety feature:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will power off automatically.

3. Sensor at door closing position, to check the door status. If door is open, operation will stop.

4. Anti dry-out function. If water level is too low, system will power off and error code displays on screen.

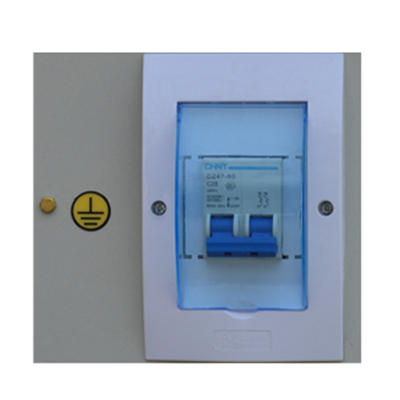

5. Over current, over voltage or electric leakage protection apparatus-air switch.

6. The door is covered with safety shell which is made of thermal insulation material to protect operator from burning by heat and looks nice.

Model	BKQ-B50II	BKQ-B75II	BKQ-B100II
Capacity	50L	75L	100L
Chamber material	304 medical stainless steel
Max designed pressure	0.28Mpa
Max designed temp	150℃
Working pressure	0.22MPa
Working temp range	105~136℃
Temp accuracy	±0.1℃
Timing range	0-999min
Dynamic pulse exhaust times	0~9 times
Dynamic pulse exhaust temp	105~132℃
Dissolution temp range	60~100℃(programmable)
Temp holding range	40~60℃(programmable)
Power supply	AC220V,50/60Hz; 22A
Standard Accessories	Stainless steel basket*2pcs
Chamber size	φ386*50mm	φ386*682mm	φ386*875mm
Power consumption	4.4KW	4.7KW	5.2KW
Outer size (WDH)	550640980mm	5506401080mm	5506401260mm
Net weight	70KG	85KG	105KG
