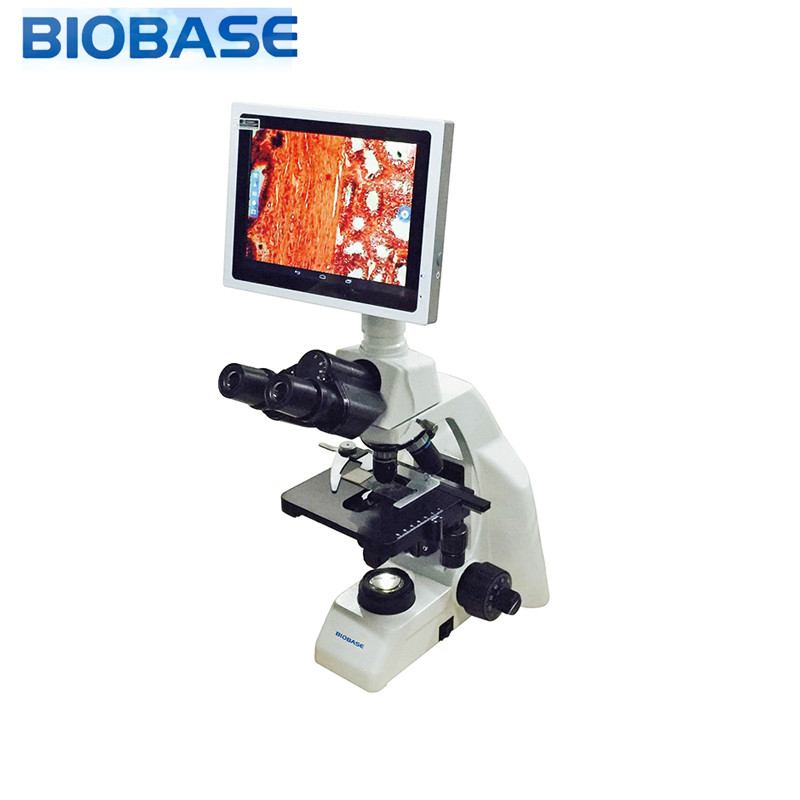

LCD Digital Video Screen Detection Instrument Biological Microcirculation Microscope with CE
[Features]
1,in 5 seconds can be observed in the microvascular circulation, simple operation and fast
2,the microscopic image is stable, clear, do not shake
3, 400 times the microcirculation of a dedicated high-resolution lens of the microscope
4,handheld ultra-lightweight design, so that the observation of more mobility
5,with micro-focus wheel, free to adjust the focus length, the use of more convenience
6,lens built-in LED cold light source, accurate projection illumination on an object
7,using non-invasive way, to observe the microcirculation of human body in time
8 ,observing the microcirculation for any part of human body
[Application]
1,nail wall distal microcirculation observation
2,cutaneous distal microcirculation observation
3,tongue microcirculation observation
4, the auricle distal microcirculation observation
5,lips microcirculation observation
6, the other parts of the microcirculation observed
7,sweat glands observed
8,hair follicles observed
9,bamboo charcoal commodity microcirculation efficiency testing
10 ,far- infrared commodity microcirculation efficiency testing
11 , the germanium titanium micro-circulation of goods performance detection
12 ,ore commodity micro-cycle efficiency detection
LCD Digital Biological Microscope--Biobase Meihua, the most professional laboratory and medical products supplier.
Model | DM-125 | DM-126 | |
Optical System | Infinite Optical System |
| √ |
Finite Optical System | √ |
| |
Eyepiece | WF10X/18 | √ |
|
WF10X/20 |
| √ | |
Viewing Head | Monocular Head Inclined at 30° |
|
|
Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 48-78mm | √ | √ | |
Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 48-78mm |
|
| |
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi |
|
| |
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS |
|
| |
Achromatic Objective | 4X N.A=0.1 WD=17 | √ |
|
10X N.A=0.25 WD=7 | √ |
| |
40X N.A=0.65 WD=0.53 | √ |
| |
100X N.A=1.25 WD=0.13 | √ |
| |
Infinite Semi-Plan Achromatic Objective | 4X N.A=0.1 WD=18 |
| √ |
10X N.A=0.25 WD=7.4 |
| √ | |
40X N.A=0.4 WD=0.7 |
| √ | |
100X N.A=0.6 WD=0.13 |
| √ | |
Nosepiece | Backward Quadruple Nosepiece | √ | √ |
Stage | Double Layers Mechanical Stage 140x140mm, Moving Range 75X50mm | √ |
|
Reckless Double Layers Mechanical Stage 150X139mm, Moving Range 75X25mm |
| √ | |
Condenser | NA 1.25 Abbe Condenser | √ | √ |
Dark Field Condenser (Dry, Oil) |
|
| |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Division 25mm | √ | √ |
Illumination | S-LED Illumination |
|
|
S-LED Illumination with Recharger | √ | √ | |
Kohler Illumination |
|
| |
ECO Function |
|
| |
Plane-cancave Mirror |
|
| |
Fluorescent Attachment | Fluorescent Illumination, LED Lamp |
|
|
Fluorescent Illumination, 100W HBO Lamp |
|
| |
Polarization Set |
|
|
|
Phase Contrast Kit |
|
|
|
Package Size | 370*260*465mm | √ | √ |
Gross Weight | 8.5kg | √ | √ |
