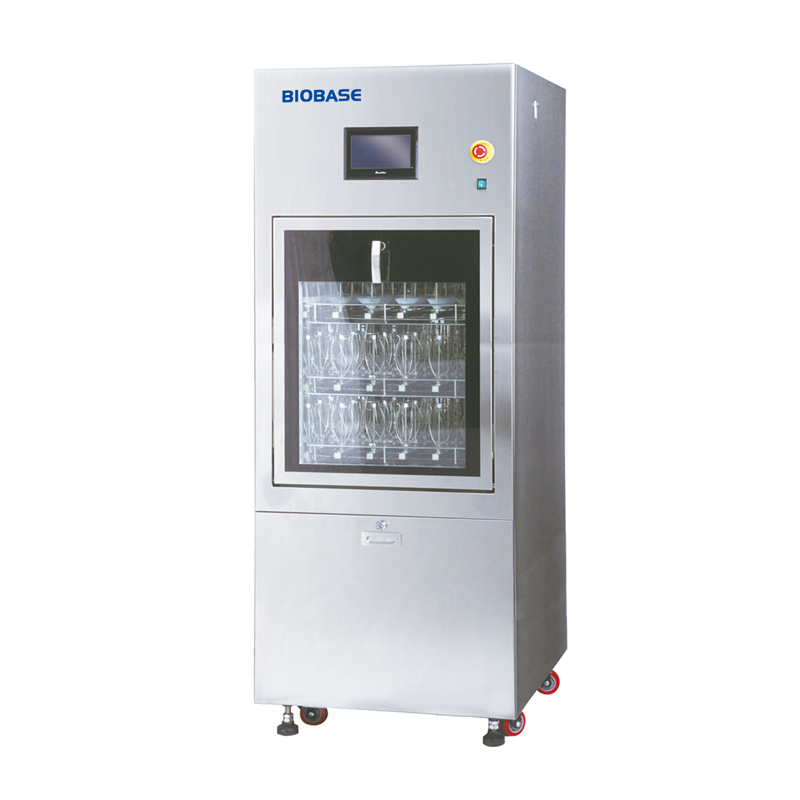

<h2>High Quality BK-LW 320 Lab Automatic Glassware Washer </h2>
Features
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program .
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process .
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃ .
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process .
5.PLC touch screen control with preset 6 programs(including one customized program) .
6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch .
Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying
All cleaning racks can be removed completely, convenient to washing rack pipeline
Model | BK-LW120 | BK-LW220 | BK-LW320 | BK-LW420 |
Capacity | 120L | 220L | 320L | 420L |
Water Consumption/Cycle | 15L | 25L | ||
Inlet Water Pressure | 0.3 ?I.OMpa | |||
Noise | <50dB | <55dB | ||
Material | Stainless steel | |||
Overall Power Consumption | 6KW | 6.5/16.5KW | 6.5/18KW | 18kW |
Power Consumption-Water Washing | 0.75KW | 1.5 KW | 2.8KW | |
Power Consumption-Water Heating | 5KW | 5/15KW | 15KW | |
Power Consumption-Drying | 2.1 KW | 3.6KW | ||
Power Supply | AC220V, 50Hz | AC220V, 50Hz; 380V, 50Hz | 380V, 50Hz | |
Cleaning Racks | 1 pcs | 2 pcs | 3 pcs | 2 pcs |
Standard Cleaning Racks | BKIR36*1 | BKIR36*2 | BKIR36*3 | BKIR36*2 |
Standard Accessories | One bucket RBS A 150 leaner (1 L), One bucket RBS A 375 neutralizer (1 L) | |||
Optional Accessories | USB interface, printer, Cleaning racks | |||
Washer Chamber Size(W*D*H)mm | 600*629*465 | 600*629*658 | 600*629*820 | 688*700*703 |
External Size(W*D*H)mm | 960*740*850 | 780*690*1760 | 790*690*1950 | 1100*900*2165 |
Package Size(W*D*H)mm | 1100*950*1050 | 1000*850*2100 | 1000*840*2180 | 1270*1025*2240 |
Gross Weight(kg) | 145 | 330 | 350 | 400 |
