BIOBASE Biochemical Analysis System Semi auto biochemical analyzer, biochemistry analyzer
Semi-auto biochemistry analyzer (BIOBASE-Silver)

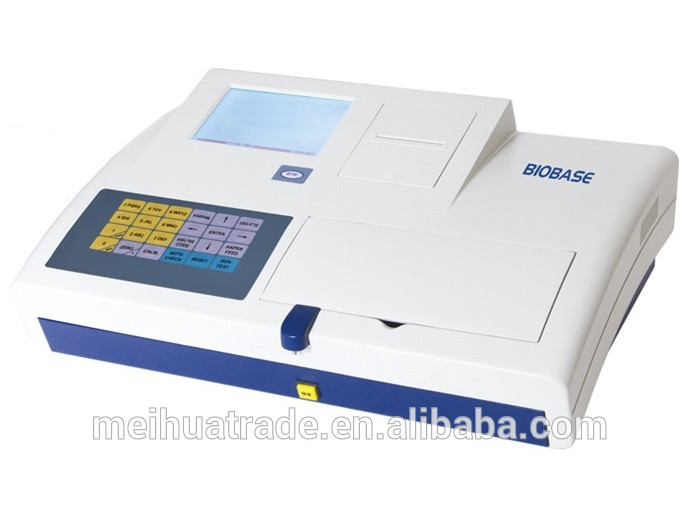

Semi-auto biochemistry analyzer Picture Show
Semi-auto biochemistry analyzer Product Description
Semi-auto biochemistry analyzer Biobase-silver is a high performance semi auto biochemistry analyzer. It enables the user to program the analyses up to 200, and divides them into 10 parts. Each part can be arranged by the chemist to be more efficient.
Semi-auto biochemistry analyzer Biobase silver can analyze absorbance, linear concentration, end point, kinetic, fixed time ,two point kinetic and non-linear concentration.
Semi-auto biochemistry analyzer Features
1.Reasonable software, programmable biochemical test menu, 200 test
programmes can be saved.
2. 10000 patients test data can be saved.
3. Clock CMOS chip inserted.
4. Hermetic solid-state optical system, low contamination of dust and
dampness,long life time of hard membrane filters.
5. Back spectro photometry, eight hard membrane filter, separate signal
process circuit for each wavelength, filters select completed electronically,no mechanical movement.
6. Titanium alloy flow cell with small capacity and mini cross-contamination.
7. Back-light LCD monitor and display character and curve simultaneously
8. Self-test program, test error<1%, CV<3%.
Working Environment:Temperature :0℃-40℃ ; Humidity: 5-80%
Semi-auto biochemistry analyzer Parameters
Technical paremeters:
1. Analysis method: kinetics, end point, two point, etc.
2. Power supply: 20w/12V halogen light, life time: 2000hr
3. Optical system: 340-800nm, 8 hard membrane filter: 340, 380, 405, 492, 510, 546, 578,630nm(wavelength).
Accuracy±2nm
4. Abs range: -2.500—2.5Abs, resolution:0.001Abs.
5. Flow cell: titanium quartz alloy, 33uL; optical path: 10mm.
6. Temperature: PELTIER elements, 25,30,37 0.1±℃
7. Precision: error<1%, drift<5mAbs/hr
8. 200 test programmes can be saved
9. 58mm thermal printer, no noise, high speed, easy maintenance.
10. Keyboard: 24 keys touch keyboard
11. Power supply: 220V±15%, 50Hz, 70VA
12. Interface: standard RS232 serial interface
13. Dimensions : 460(L)x380(W)x200(H)mm
14. Weight: 13Kg(net), 15Kg(gross)
Semi-auto biochemistry analyzer Accessories
Name | Unit | Quantity |
Halogen lamp | One | 1 |
Flow cell | Package | 1 |
Fuse wire | One | 2 |
Cleaning fluid | One | 1 |
