Introduction
Specifications:
Test method: magnetic ball method;sample consumption: aa200uL; reagent consumption: 50uL~200uL

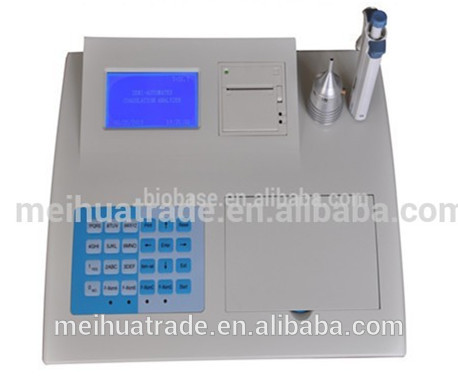

BK202 Coagulometer adopts the world approved coagulation test method; the CPU adopts ARM
technology to measure the motion of the magnetic ball to work out the coagulation time.
It can perform multiparameters simultaneously with better accuracy, precision and repitition.
Performance:
1. Double magnetic route, stable performance , not liable to interference.
2. Dot-matrix LCD monitor
3. 100 assay parameters and 1000 test results can be saved
4. touch keyboard
5. thermal printer
6. Reagent-open, less consumption ( ≤200uL)
7. Clock CMOS chip inserted
8. Standard 232 serial interface
9.Power supply: 220V±15%, 50Hz, 80VA
10.Dimensions : 420(L)x300(W)x170(H)mm
11. Weight: 5Kg(net), 7Kg(gross)
Parameter:
1. Test method: magnetic ball method
2. sample consumption: ≤200uL
3. reagent consumption: 50uL~200uL
4. Temperature: 37°C±0.5°C
5. adding sample: by a timing linkage
6. precision: ±10%; CV ≤10%
7. speed: ≤300s(depend on setting)
8. channel: 4/2/1
9. sample warming up position: 16/8/8
10. reagent warming up position: 6/6/6
Test Itmes:
Main test:
PT,APTT,TT,FIB
Others:
Hep,ProC,ProS
Coagulation factor II,V,VII,VIII,IX,X,XI,XII
AT-III,AT,RepT,RVVT,RVVCT,RVVRT,LA
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.

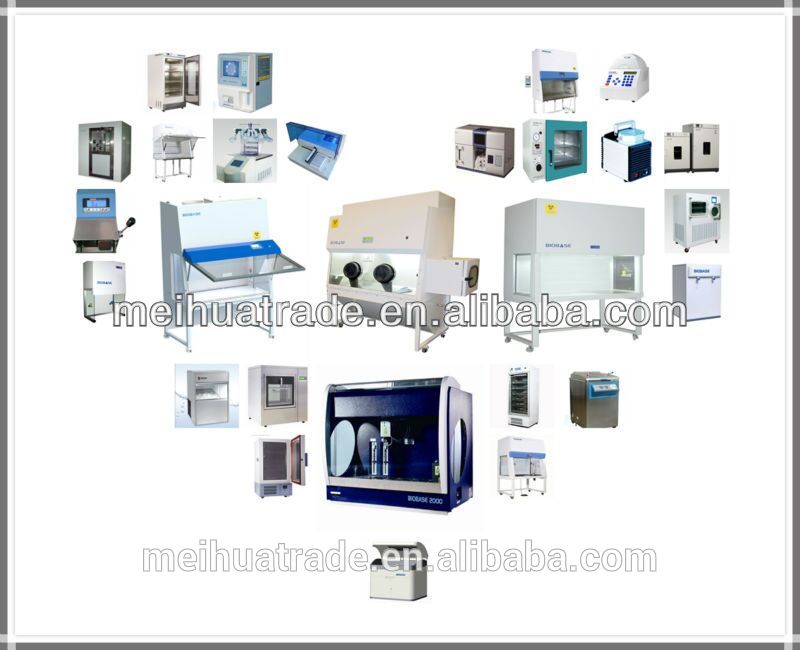

At present, we are dealing on laboratory equipment and medical analytical instruments, such as
biological safety cabinet, laminar flow clean bench, fume hood, refrigerator and freezer, incubator, oven, autoclave, freeze dryer, spectrophotometer, centrifuge, Elisa reader and washer, Semi&Auto biochemistry analyzer, biochemistry reagents etc.
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave anf Incubator.
We have more than 800 employees and 2000 square meters production base, our output per year is amount to 10000 units. Pursuing the highst quality is the tenet if BIOBASE. We hope everybody will enjoy BIOBASE service to keep away from the infectious disease.
Our advantages:
-We built an excellent research team which consists of 50 professional engineers
-We have 14 years production experience and a strong technical production team, we adopt high-tech and state-of-the-art production equipments from Italy, Japan and Switzerland, tec.
-We have a strong quality control team to inspect all production stage, from the purchased accesory to the finished products.
-We have full sets of advanced quality assurance equipments
We have ISO9001 quality management system; ISO14001 environmental managemnet system, ISO13485, CE mark, MET and NAF49 certificate.
We got EN12469 certificate for Biosafety Cabinet in 2013.
Please contact me with the information below to get more details:
Contact: Ray Liu
