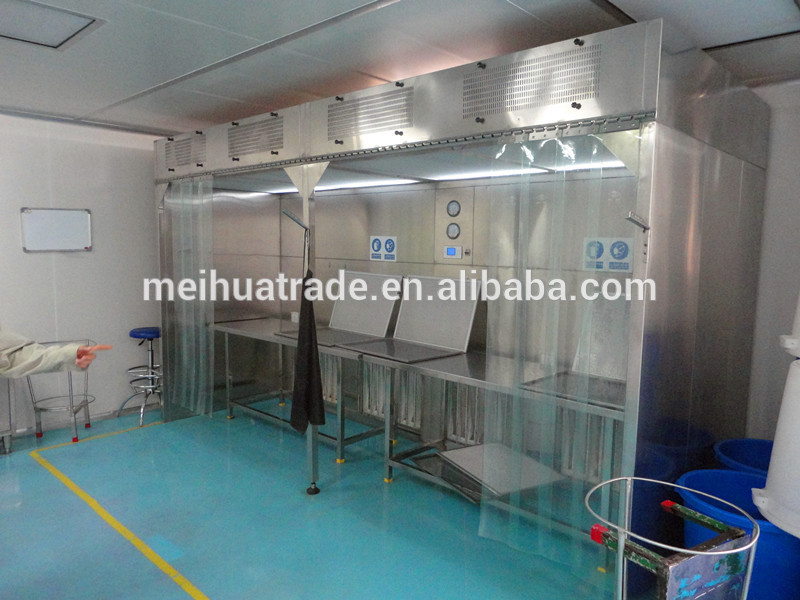

BIOBASE China sampling or weighing booth/dispensing booth design for pharmaceutical/filter cleaning booth
Features
1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.

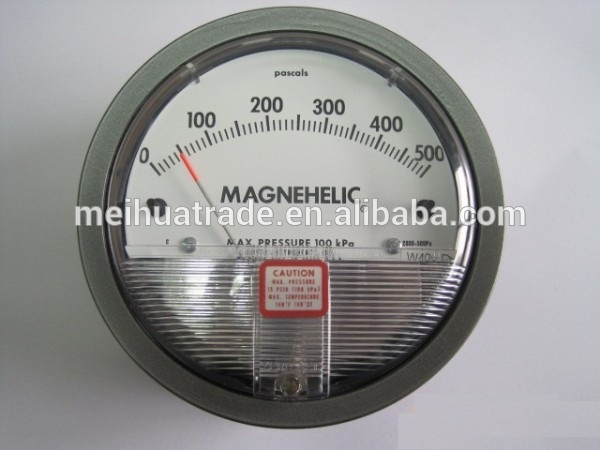

4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
Model | BKDB-1200 | BKDB-1800 | BKDB-2400 | |
Clean Level | ISO 5 (Class 100), Class A | |||
HEPA Filters | 99.999% efficiency at 0.3 um | |||
Air volume | Supply air volume: ≤7500m3/h, Exhaust air volume: ≤2250m3/h; Adjustable | |||
Material | Fully stainless steel | |||
Air Velocity | 0.35~0.65m/s, adjustable | |||
Noise | ≤75db | |||
Illumination | ≥800lux | |||
UV Lamp | Emission of 253.7nanometers, with UV timer | |||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Consumption | 400W | 800W | 800W | |
Weight | 150kg | 200kg | 250kg | |
Work Area Size (W*D*H) | 1200*1200*2000mm | 1800*1800*2000mm | 2400*1800*2000mm | |
Gross Weight | 420kg | 750kg | 840kg | |
Package Size (W*D*H) | 1500*2000*2650mm | 2040*1680*2180mm 2040*1400*600mm 2040*1940*1060mm | 2600*800*2150mm 2600*700*400mm 2600*1900*550mm | |
Customized design for clean level, size or material is available | ||||
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
