Operating Principles

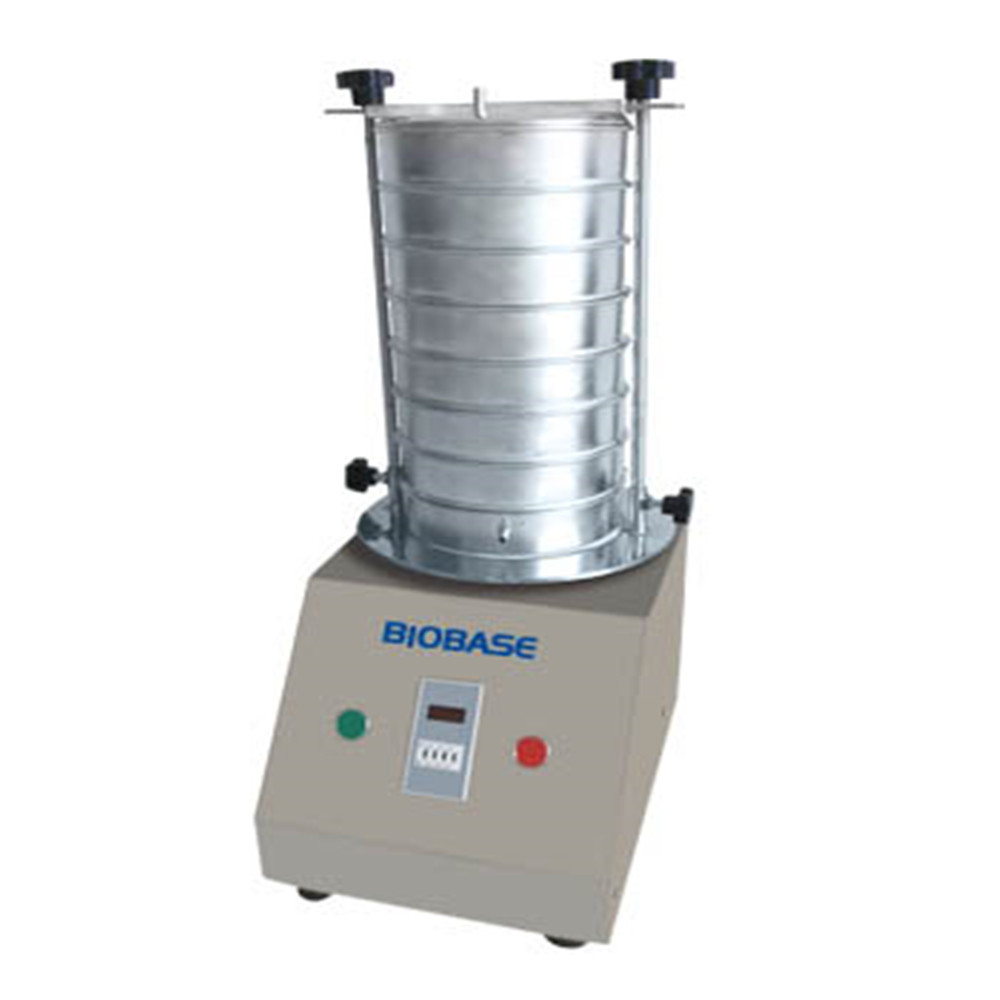

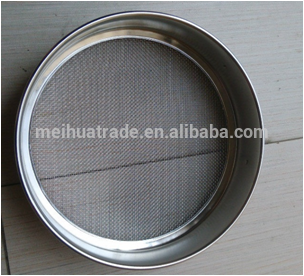

Motor type laboratory sieve shaker uses vibration motor as the vibration source. The vibration motor drives the base of sieve shaker, and then pass the shaking to the test sieves which are put on the base from coarse to fine, causing the sieves vibration up and down with high frequency. Meanwhile the vibration motor mounted on the lower part(or reciprocating structure) enable the material spread out. Shaking on the sieve surface, the materials, which particle size are smaller than the aperture of test sieve, fall into the lower test sieve. Through layers of screening in the same principle, there will be the same particle size material in each sieve. So that two aims can be achieved, the separation of different particle size material, and the grain composition.
Applications
* Used for the testing, screening, classification, particle size analysis, impurity content analysis of solid, powdery, slurry material;
* Widely used in R&D institution, laboratory, production control, in food, pharmaceutical, chemical, abrasive, paint, mining, metallurgy, geology, ceramic, defense industry, etc.
Main Features
* Prior and durable design with high efficiency to screen any powder and mucilage
* High screening efficiency-the smallest particle size is 45 micron(325 mesh)
* It is can be placed maximum7 layer test sieves (including the sieve pan and cover); the materials can be separated into 2-6 particle sizes at the same time;
* Small size and light weight, less occupying space and easy moving; platform operation without fixed device; low noise
* Easy operation, automatic timing device.
No. | Name | Unit | Parameters |
1 | Suitable Sieve Diameter | (mm) | 200mm /203mm(8")/300mm |
2 | Quantity of Placed Sieve | (piece) | 1-7(including sieve pan&cover) |
3 | Measuring Range | (mm) | 45 micron-25mm |
4 | Noise | (dB) | <60 dB |
5 | Amplitude | (mm) | 1-5mm |
6 | Automatic Timing Control | (min) | 0~99mins59secs |
7 | Motor Vibration Frequency | (r/min) | 1400 r/min |
8 | Power | (v;Hz) | 220v, single phase, 50Hz, 0.12kw |
