- Applicable Industries:
- Building Material Shops, Farms, Food & Beverage Shops
- Application:
- Medicine Processing, Chemicals Processing, Food Processing
- Condition:
- New
- Type:
- Vacuum Drying Equipment
- Place of Origin:
- Shandong, China
- Brand Name:
- BIOBASE
- Voltage:
- 110V/220V
- Power(W):
- 50/60HZ
- Dimension(L*W*H):
- 700*570*1050mm
- Weight:
- 135kg
- Certification:
- ISO CE
- Warranty:
- 1 years
- After-sales Service Provided:
- No after-sales service, Free spare parts
- Key Selling Points:
- Easy to Operate
- Ice Condenser Temp.:
- -55℃ or -80℃
- Vacuum Degree:
- <10Pa
- Freeze Drying Time:
- 24h
- Material LoadingCapacity/Shelf:
- 300ml
- Power Supply:
- 110V/220V, 50Hz/60Hz
- Gross Weight:
- 135Kg
- Shelves:
- 4
- USB Interface:
- YES
- Control System:
- Microprocessor,touch screen
- Drying Chamber:
- Transparent acrylic
- Supply Ability:
- 500 Set/Sets per Month
- Packaging Details
- wooden package
- Port
- Qingdao
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 45 To be negotiated

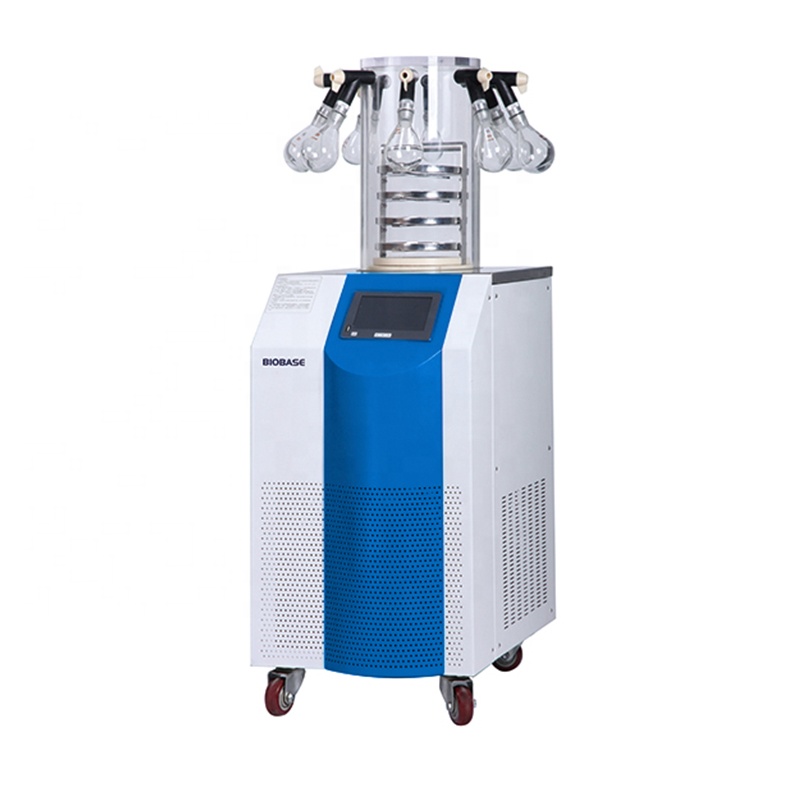

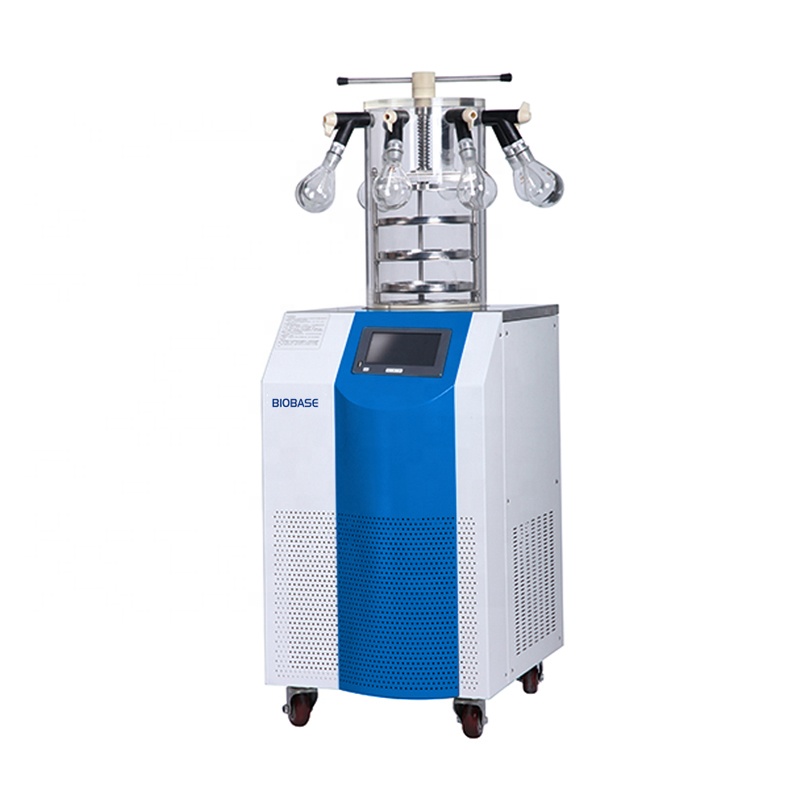

The table top type and vertical type Freeze Dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Advantages:
1.The 7 inch LCD display panel
2.Cascade refrigeration technology
3.With historical data inquiry function
4.Drying cabinet is transparent which is visual and safe
5.Large capacity ice condenser trap and without coil inside
6.The machine is equipped with USB interface on control panel
7.Ice condenser trap and operation panel are made by stainless steel
8.The pre-freeze shelf can be used as guide barrel to speed up the drying rate
Model | BK-FD12S | BK-FD12T | BK-FD12P | BK-FD12PT | |
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering chamber with 8 port manifold | |
Ice Condenser Temp. | -55℃ or -80℃ | ||||
Vacuum Degree | <10Pa | ||||
Ice Condenser Capacity | 4Kg/24h | ||||
Freeze Drying Time | 24h | ||||
Shelves | 4 | 3 | 4 | 3 | |
Freeze Drying Area | 0.12m2 | 0.09m2 | 0.12m2 | 0.09m2 | |
Material Loading Capacity | 1200ml | 900ml | 1200ml | 900ml | |
Material Loading Capacity/Shelf | 300ml | ||||
Manifold | / | / | 8 pieces | 8 pieces | |
USB interface | YES | ||||
Drying Chamber(standard) | Transparent acrylic | ||||
Vacuum Pump(standard) | Model:2XZ-2,speed:2L/s | ||||
Control System | Microprocessor, touch screen | ||||
Power Supply | 220V,50/60Hz | ||||
External Size | 480*620*920/1370mm | ||||
Package Size | Main Body | 700*570*1050mm | |||
Drying Cabinet | 350*350*570mm | ||||
Vacuum Pump | 570*370*190mm | ||||
Gross Weight | 130kg | 135kg | 135kg | 135kg | |
Standard Accessory | Main body x1 pc, Vacuum Pump x1 pc, Standard drying cabinet x1 pc | Main body x1 pc, Vacuum Pump x1 pc, Manifold drying cabinet x1 pc, Drying bottles x8 pcs | Main body x1 pc, Vacuum Pump x1 pc, Top-press drying cabinet x1 pc | Main body x1 pc, Vacuum Pump x1 pc, Manifold and top-press drying cabinet x1 pc, Drying bottles x8 pcs | |
