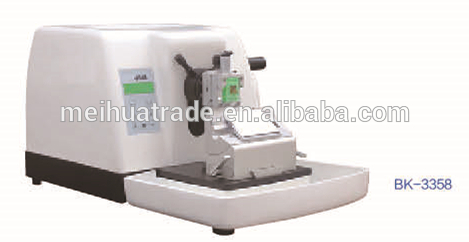

Manual Rotary Microtome
Features:
§ Ideal sectioning for using disposable blade
§ Large-volumeremovablewaste tray on the top of housing, convenient to use;
§ Imported cross-roller guide rails andhigh-precision screw motion mechanism
§ Advanced high-precision micro-drive feed system enableseven and high-precision sectioning;
§ Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
§ The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment;
§ Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning
§ Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration
§ The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade;
§ Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments);
§ Cassette holder can be locked at any position alongeach of the three axes,enabling easy adjustment of the specimen sectioning angle;
Model | BK-MT268M | BK-MT260M | BK-MT258M |
Function | Sectioning, trimming, fast forward, fast backward, quick conversion; | ||
Specimen Retraction | 60μm (on/off) | / | / |
Sectioning Thickness Range | 0-60μm 0–20μm increment 1μm 20–60μm increment 5μm | 0 - 60μm 0–10μm increment 1μm 10–20μm increment 2μm 20–60μm increment 5μm | 0 - 60μm 0 - 2μm increment 0.5μm 2 - 10μm increment 1μm 10 - 20μm increment 2μm 20 - 60μm increment 5μm |
Trimming Thickness Range | 0-60μm | 0-60μm | 1-60μm |
Mini. Sectioning Thickness | 1μm | 0.5μm | |
Max. Specimen Size | 60*50mm | ||
Precision | ±5% | ||
Specimen Horizontal Feed | 28mm | 25mm | |
Specimen Vertical Stroke | 70mm | 60mm | 52 mm |
Specimen Orientation | XY – 8° | ||
External Size (W*D*H) | 590*500*330mm | 570*440*290mm | 565*440*285mm |
Package Size (W*D*H) | 690*590*500mm | 620*530*450mm | 620*530*450mm |
Gross Weight | 54kg | 40kg | 40kg |
