rapid diagnostic test device auto biochemistry analyzer

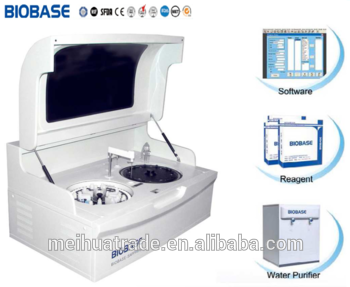

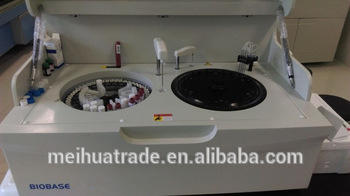

BIOBASE-Sapphire Bench-top auto biochemistry analyzer
1. Benchtop type,Fully automatic, Discrete, Random access
2.200 T/H,46 sample position and 59 reusable cuvettes.
3. 90 refrigerated reagent tray (R1:45 R2:45), 24 hour working.
4. Reversed optics and imported photo sensor, ensuring the
precision of detection results.
Accessories:
Name | Unit | Quantity |
Sample cup | One | 1 |
Cuvettes | Pack(120 units) | 1 pack |
Reagent Probe | One | 1 |
Sample Probe | One | 1 |
Mixer probe | One | 1 |
Fuse | One | 1 |
Halogen lamp | One | 1 |
Features
1. Benchtop type,Fully automatic, Discrete, Random access
2.200 T/H,46 sample position and 59 reusable cuvettes.
3. 90 refrigerated reagent tray (R1:45 R2:45), 24 hour working.
4. Reversed optics and imported photo sensor, ensuring the precision
of detection results.
5. Precision dispense pumps assures the accuracy ofadding sample volmue,
sample volume step by 0.1ul, reagent volume step by 1ul.
Model | BIOBASE-SAPPHIRE |
Dimensions (W x D x H) | 900*500*400mm |
Analysis method | End point, two points, kinetic method, turbidimetry |
Wavelength range | 340, 405, 510, 546, 578, 600, 660, 700(three of them can be defined by the users), adopting reversed optics |
Reagent volume | R1: 25-300ul; R2: 10-150ul(step by 1ul), support reagent from different countries |
Receiver | 8 imported photo receivers |
Sample volume | 3 ul-50ul (step by 0.1ul), high precision injector (dilution vessel) is prepared |
Cuvette | 120 independent reaction cuvettes(optical path length 6mm) |
Calibration | one-point, multipoint |
Test/H | 150 |
Shipping Dimensions, | 1100*600*500mm |
Software | Windows 2000 professional or windows XP. Have plenty of functions of inquiries, convenient to use |
Printout | user can modify the printing format by his own |
Electrical | AC220V + 22V 50Hz + 1Hz |
Certification | CE, ISO9001, ISO14001, ISO13485, FDA |
| Q: Why choose BIOBASE? |
(1) More than 20 years history of manufacturing |
| Q: How about BIOBASE payment term? |
| A: T/T in advance & L/C & Weatern Union(40% deposit,the balance before shipment). |
| Q: How about BIOBASE delivery time? |
| A: 10-15 days after we receive prepayment. |
| Q: How about the package? |
| A: Plywood case or carton or standard export wooden case. |
Q: What"s the loading port? |
A: FOB to Qingdao port China or as customer"s request |
