Home > Products > BIOBASE Laboratory Universal Portable Plate Stand Overhead Stirrer

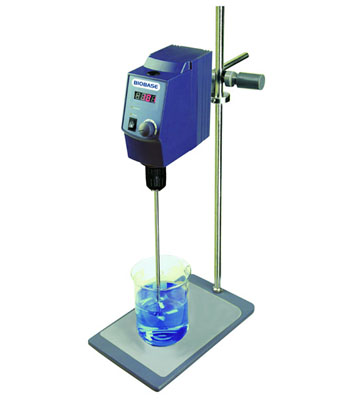

BIOBASE Laboratory Universal Portable Plate Stand Overhead Stirrer

Click on the image to view the original image

Product：	views：3BIOBASE Laboratory Universal Portable Plate Stand Overhead Stirrer
Branch：	BIOBASE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:41

Product Details

Overview

Quick Details

Classification:: Laboratory Heating Equipments

Brand Name:: BIOBASE

Model Number:: OS40-S

Place of Origin:: Shandong, China

Max. stirring quantity [H2O] [L]:: 40

Motor rating input [W]:: 120

Motor rating output [ W]:: 100

Power supply:: 110/220V, 50/60Hz

Speed range [rpm]:: 0-2200

Speed display:: LED

Max. torque [Ncm]:: 600mN.M

Dimension [W x H x D] [mm]:: 83*186*220mm

Weight [kg]:: 5.5kg

Ambient Temp.:: 5-40

Supply Ability

Supply Ability:: 400 Unit/Units per Month Overhead Stirrer

Packaging & Delivery

Packaging Details: wooden box

Port: Qingdao

BIOBASE Laboratory Universal Portable Plate Stand Overhead Stirrer

Other Models

OS40-S/OS20-S OS40-S/OS20-S OS40-Pro/OS20-Pro OS40-Pro/OS20-Pro

LED Overhead Stirrer with universal plate stand LCD Overhead Stirrer with universal plate stand

Product Description

Overhead stirrer is suitable for mixture of high viscosity liquid or solid-liquid. Widely used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other fields.

Technical Parameters

Model	OS40-S	OS20-S	OS40-Pro	OS20-Pro
Max. Stirring Capacity	40L	20L	40L	20L
Motor Input	120W	60W	120W	60W
Motor Output	100W	50W	100W	50W
Speed Range	0~2200rpm		50~2200rpm
Speed Display	LED		LCD
Speed Display Accuracy	/		±3rpm
Speed Display Resolution	±1rpm
Max. Torque	600mN.M	400mN.M	600mN.M	400mN.M
Torque Display	/		LCD
Overload Protection	Visual alarm, motor automatic stop
Motor Protection	LED flicker, motor automatic stop
Max. Viscosity	50000mPas	10000mPas	50000mPas	10000mPas
Chuck Diameter Range	0.5-10mm
Protection Type	IP42
Ambient Temp.	5-40℃
Relative Humidity	80%
Interface	/		RS232
Power Consumption	130W	70W	130W	70W
Power Supply	AC110/220V±10%, 50/60Hz
External Size(WDH)	83186220mm
Package Size(WDH)	205335475mm
Gross Weight	5.5kg
