General Use Chemical Fume Hood Price
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
1. Double-layer structure: 1.2 mm sheet metal surface, melamine board inward.
2. Microprocessor control system, LED display.
3. Adjustable air speed: 6 levels.
4. Motorized front glass window.
5. UV Lamp for sterilization.
6. Built-in centrifugal blower.

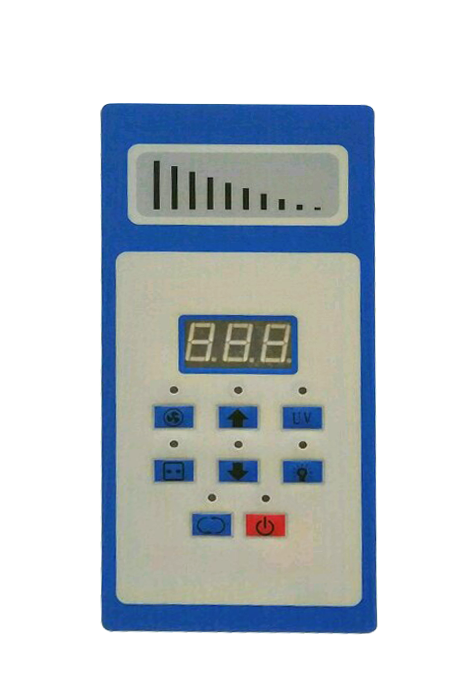

LED Display
Digital LED Display: Airflow Level
Water & Gas Tap Water Sink
Foot switch
Use foot switch to adjust the height of front window.
Back Side Air Compensation
TO avoid turbulence in work area.
Observation Window
Transparent side glass windows maximize light and cisibility inside the cabinet.
Model | FH1000 | FH1200 | FH1500 | FH1800 | |||
External Size (W*D*H) | 1000*750*2320mm | 1200*800*2345mm | 1500*800*2345mm | 1800*800*2345mm | |||
Internal Size (W*D*H) | 820*620*750 mm | 1020*670*750mm | 1320*670*750mm | 1620*670*750mm | |||
Work Surface Height | 850mm | ||||||
Max Opening | 520mm | 570mm | 570mm | 570mm | |||
Air Velocity | 0.3~0.8m/s | ||||||
Protection Class | Class I | ||||||
Protection Type | IP 20 | ||||||
Noise | ≤60dB | ||||||
Exhaust Duct | PVC, Standard length: 4 meters. | ||||||
Φ300mm | |||||||
Pipe Strap | 1 pc | ||||||
Fluorescent Lamp | 14W*1 | 21W*1 | 28W*1 | 36W*1 | |||
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||
Blower | Built-in centrifugal blower; Speed adjustable. | ||||||
Front Window | 5mm toughened glass; Motorized; Height adjustable. | ||||||
Power Supply | 110/220V±10%, 60/50Hz | ||||||
Consumption | 400W | 400W | 500W | 500W | |||
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating. | |||||
Interior | High grade melamine board with good acid and alkali resistance function | ||||||
Work table | Solid chemical resistant physiochemical board | ||||||
Stand Accessory | UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. | ||||||
Total load of 2 waterproof sockets: 1000W | |||||||
4 meters PVC exhaust duct | |||||||
Optional Accessory | Active carbon filter or HEPA filter | ||||||
Gross Weight | 230kg | 270kg | 370kg | 420kg | |||
Package | Main Body | 1140*900*1850 mm | 1340*940*1890mm | 1640*940*1890mm | 1940*940*1890mm | ||
Base Cabinet | 1140*900*900mm | 1340*940*900mm | 1640*940*900mm | 1940*940*900mm | |||
