BIOBASE China BK-FD12/18 Series Mini Benchtop Vacuum Freeze Dryer for home /lab
Biobase is a professional manufacture of laboratory products from 1999.
We supply a lot kinds of laboratory equipment and medical material.

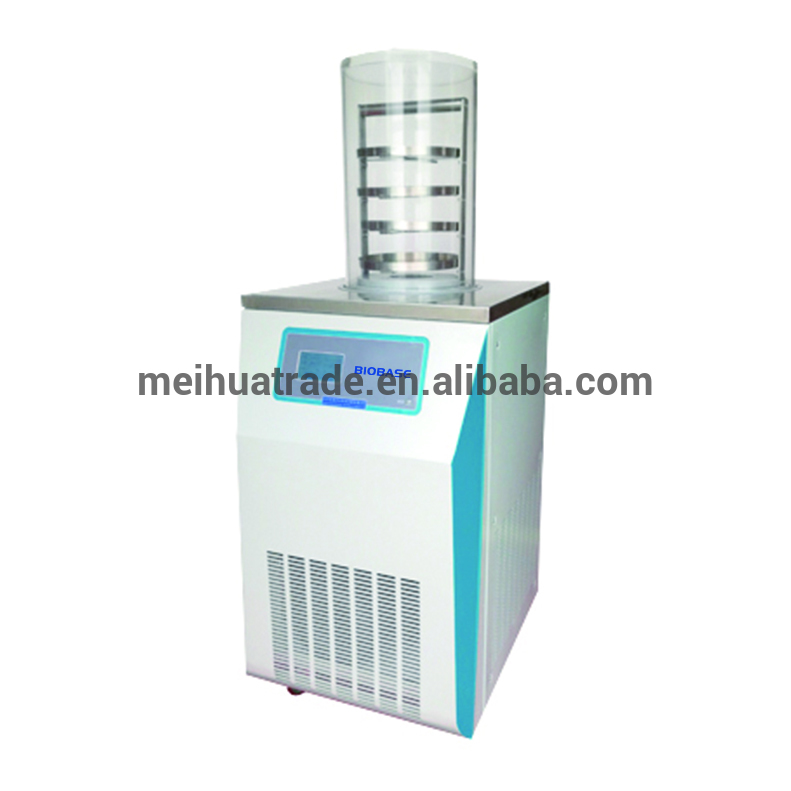

BK-FD12 /18 Series Vacuum Freeze Dryer-Upright
Feature
1. The 7 inch LCD display panel.
2. With historical data inquiry function.
3. The machine is equipped with USB interface on control panel.
4. Large capacity Ice condenser trap and without coil inside.
5. Cascade refrigeration technology.
6. The pre-freeze shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying cabinet is transparent which is visual and safe.
9. The shelves are stainless steel, which can be adjustable per the requirements.

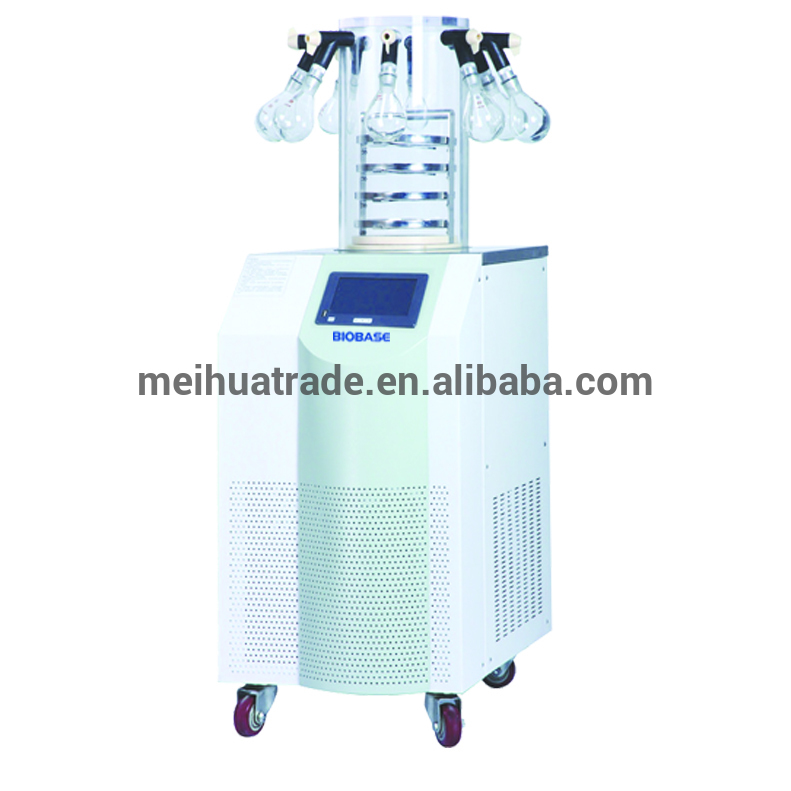

Model | BK-FD18S (Standard) | BK-FD18P (Multi-pipeline) | BK-FD18T (Top-press) | BK-FD18PT (Multi-pipeline and Top-press) | |
Type | Vertical type | ||||
Ice Condenser Temp. | -55℃ or -80℃ | ||||
Vacuum Degree | <10Pa | ||||
Water Capture Capacity | 6Kg/24h | ||||
Freeze Drying Time | 24h | ||||
Freeze Drying Area | 0.18~0.27m2 | 0.14m2 | |||
Material Loading Capacity | 1800~2700ml | 1400ml | |||
Material Loading Capacity/Shelf | 450ml | ||||
Tray Specification (*h) | 240*15mm | ||||
Quantity Of Tray | 4~6pcs | 3pcs | |||
Multi-Pipeline And Bottles | / | 8pcs | / | 8pcs | |
Capacity For Penicillin Bottle (22) | 360 | 270 | |||
Capacity For Penicillin Bottle (16) | 740 | 550 | |||
Capacity For Penicillin Bottle (12) | 1320 | 990 | |||
Consumption | 1500W (-55 degree) or 2000W (-80 degree) | ||||
Power Supply | 110V/220V, 50Hz/60Hz | ||||
External Size (W*D*H) | 560*710*945/1390mm | ||||
Package Size | Main Body | 700*850*1240mm | |||
Drying Cabinet | 350*350*510mm | ||||
Vacuum Pump | 570*225*330mm | ||||
Gross Weight | 140~150Kg | ||||
Standard Accessory | Main body x1 pc, Vacuum Pump x1 pc, Standard drying cabinet x1 pc | Main body x1 pc, Vacuum Pump x1 pc, Manifold drying cabinet x1 pc, Drying bottles x8 pcs | Main body x1 pc, Vacuum Pump x1 pc, Top-press drying cabinet x1 pc | Main body x1 pc, Vacuum Pump x1 pc, Manifold and top-press drying cabinet x1 pc, Drying bottles x8 pcs | |
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
