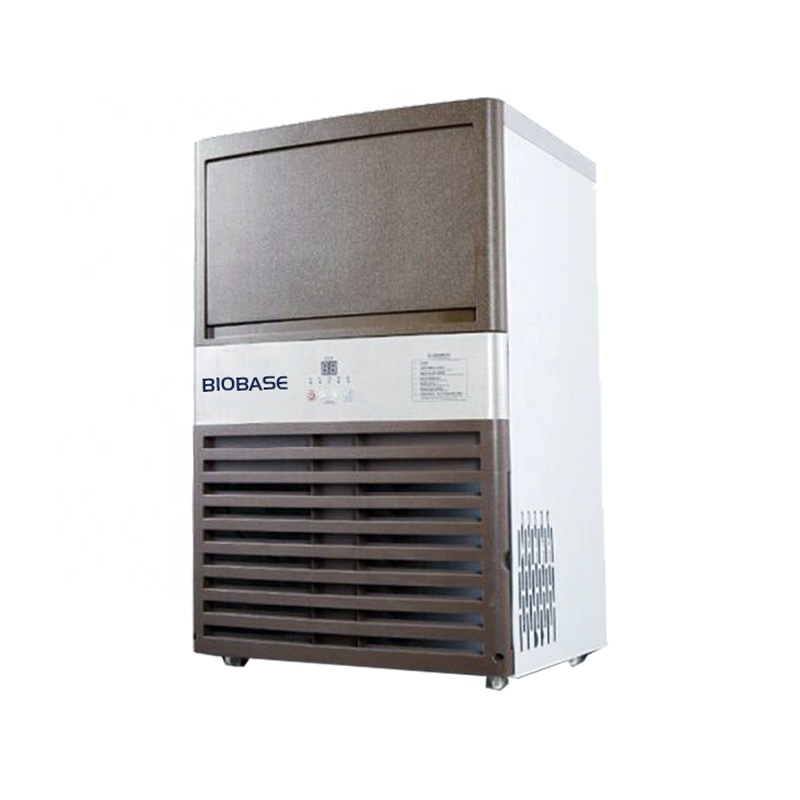

BIOBASE China 40kg luxury type tube ice machine,ice making machine
Features
1. High-quality stainless steel is used for their shells, they are anti-corrosive and durable, and the all-in-one independent structure makes them simple and compact and space-saving.
2. Their boxes are protected with fluorine-free foam thermal cover featuring good insulation effect. Their internal bladders are of fluorine-free bacterial inhibitory-type. They are both energy-saving and environmental friendly.
3. High quality and efficient use of fluorine-free R134a compressors, parts and components have passed relevant safety certifications, and they are safe and reliable.
4. The ice-making process is fully computer controlled, using imported computer chips to make control reliable and operation steady.
5. The use of Italian Haitec two-stage reducer and Korean GGM motor makes noise reduced, operation smooth and reliable. Cooling holes and blower fans are deployed on top of ice makers to ensure that the motor of reducer can operate reliably even under harsh conditions at high temperature.
6. The use of the patented technology,line of chip ice-making chamber separated from the evaporator makes high cooling efficiency and large ice-making capacity.
7. The screw extrusion hob-style ice-making type makes a compact structure, realizing ice and water automatic separation. The optimal design of skate blade makes the shape of ice small and applicable.
8. The unique float-type water tank water inflow system ensures that there is no residual water, no ice clearance process, no water wasting, and makes them water and energy saving.
9. They have ice full display, water deficiency display, overcooling protection display and malfunction warning display, etc. for shutdown protection. The stop automatically in case of ice full or water deficiency and start automatically when power or water supply is resumed. They have automatic reminiscence function.
10. The ice made is small shaped, amorphous granular flake chipped ice, which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect. It is specially designed for laboratories.
11. There are power switch and function indicators deployed in the front with detailed instructions. It is intuitive and easy to use. Various safety performance indicators have passed electrical tests, they are safe and reliable
Technical Parameters:
Item No. | LIM40-S | LIM80-S | LIM210-S |
Ice making capacity(kg/24h) | 40 | 80 | 210 |
Ice storage capacity(kg) | 15 | 40 | 145 |
Ice shape | Square ice | ||
Input current(w) | 380 | 460 | 860 |
Ambient Temp. | 5~35℃ | ||
Water Temperature | 10~25℃ | ||
Power Supply | AC220V,50/60HZ | ||
Refrigeration type | Air cooling | Air cooling / Watercooling | |
Water input Type | Automatic water tap | ||
Tank shell | Stainless steel | ||
Compressor | CFC-free | ||
Refrigerant | R22 | R22 | R22 |
Standard Accessories | Water inlet pipe*1, Drainage pipe*1, Ice spoon*1,Filter | Water inlet pipe*1, Drainage pipe*1, Ice spoon*1,Filter | |
Net weight(kg) | 36 | 59 | 75 |
Gross weight(kg) | 53 | 74 | 85 |
External Size(W*D*H)mm | 500*460*790 | 660*670*890 | 560*830*1580 |
Package Size(W*D*H)mm | 580*540*860 | 770*750*920 | 710*640*630(Head size) 850*630*950(Ice tank size) |
Applicable area | Pubs, dance halls, gyms, cold drinks shops, cafes and convenience stores. | ||
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
