BIOBASE Portable Environmental Air Quality Analyzer
BK-KA
Overview
BK-KA Portable Environmental Air Quality Analyzer consists of SO2 analyzer, NOX (NO2/NO) analyzer, O3
analyzer, CO analyzer, PM10 analyzer, VOC analyzer, THC analyzer and meteorological multi parameter monitor, etc.
The basic equipment only has the function to detect SO2, NO2, PM10 or PM2.5 three parameters, but can extend to detect other gases as the customers’ requirement.
BK-KA Portable Environmental Air Quality Analyzer is developed with international electronic technique and
network communication based on the fixed electric potential electro-analysis principle, monitoring of polluted gas, light scattering principle and β ray method.
Features
A. Rational design, easy to be used as a portable or automatic continuous online monitoring instrument;
B. Easy to monitor all Gas parameters and PM10 whose value will be shown on the screen as well;
C. Automatic sampling and analyzing continuously when it used as back pack instrument;
D. High-sensitivity sensor, rapidly response, high resolution ratio, Detecting inferior limit can be
achieved ppb;
E. Measured concentration value can be realized through switchover among mg/m3,ppm,ppb with trends graphs;
F. Display with graph screen, directly shows all kinds of inspection data, graphs and machine status, providing friendly man-machine talk interface;
G. SCM( singlechip microcomputer) mixed with internet communication along with the function of data storage, providing convenient way of data inquiry, also can transfer the data to computer by
USB, its daily average value, monthly average value, and pollute index can be auto-calculated
by upper computer software, printed in different kinds of graphic data.
H. Lithium battery or outer A.C., if power-off, the battery can be worked for 8 hours continuously.
I. Stable, high-accuracy, easy to use and maintain protection when power-off.
Technical Parameters:
Operating Temp. | 5-40ºC | Storage Temp. | -20-40ºC |
Operating Humidity | ≤15%-85%RH no condensation | Linearity | ±2%F.S |
Accuracy | ±2%F.S | Zero Drift | ±2%F.S |
Response Time | <150s | Range Drift | ±2%F.S |
Flow of Gas Sample | 300ml/min | Working Life of Sensor | >2 Years |
Way of Sampling | Absorb Pump | Flow of Dust Sample | 5.0L/min or 600ml/min |
Communication Interface | RS485 and USB Interface | Power Supply Mode | Lithium battery(3.6V*) Outer A.C.(AC220V 50Hz 1.0A) |
Operating Life of Battery | Continuous 8 hours | Charging Time | 10 hours |
Size | 300 x 260 x 490mm | Weight | 15kg |
Screen | Touch Screen | Language | Chinese& English Available |
Gas Monitoring Parameters:
Monitoring Parameters | Monitoring Range | Resolution Ratio |
SO2 | 0-2ppm | 0.001ppm |
NO2 | 0-2ppm | 0.001ppm |
O3 | 0-5ppm | 0.001ppm |
CO | 0-50ppm | 0.1ppm |
H2S | 0-2ppm | 0.01ppm |
HF | 0-2ppm | 0.01ppm |
Other Gas | Customer-made | |
Parameters of monitoring particulate matter what can be absorbed:
Monitoring Range | Resolution Ratio |
0-100mg/m3(optional) | 0.01 mg/m3 |
0-10mg/m3(optional) | 0.001 mg/m3 |
PM10,PM5 and PM2.5 Cutter for choice | |
Application Field:
Urban atmospheric environment monitoring, Corporate environmental monitoring, Non-organizational pollution gas emission monitoring, Environmental assessment monitoring.
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
At present, we are dealing on laboratory equipment and medical analytical instruments, such as
biological safety cabinet, laminar flow clean bench, fume hood, refrigerator and freezer, incubator, oven, autoclave, freeze dryer, spectrophotometer, centrifuge, Elisa reader and washer, Semi&Auto biochemistry analyzer, biochemistry reagents etc.
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave anf Incubator.
We have more than 800 employees and 2000 square meters production base, our output per year is amount to 10000 units. Pursuing the highst quality is the tenet if BIOBASE. We hope everybody will enjoy BIOBASE service to keep away from the infectious disease.
Our advantages:
-We built an excellent research team which consists of 50 professional engineers

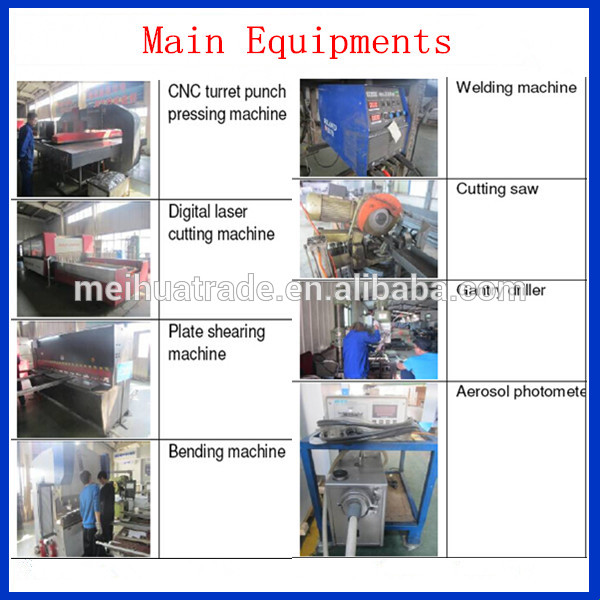

-We have 14 years production experience and a strong technical production team, we adopt high-tech and state-of-the-art production equipments from Italy, Japan and Switzerland, tec.
