High Quality Laboratory Heating Equipments Classification Vacuum Induction Melting Vacuum Furnace/Muffle Furnace

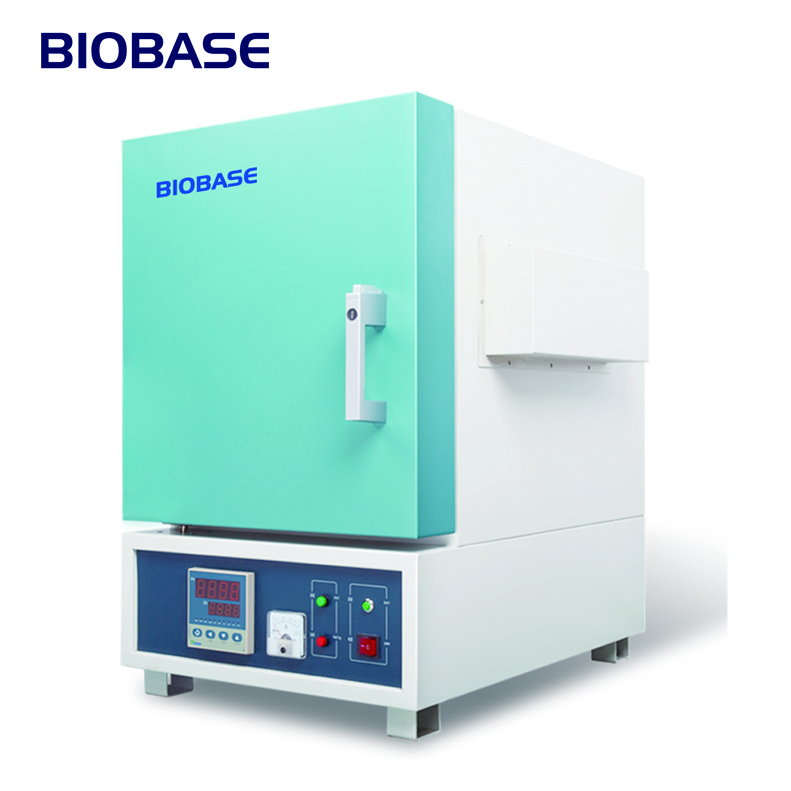

MR-12/17TP series chamber electric furnace, as research-based product,
adopts modern integrated double-layer furnace body structure. Its hearth is
made of new type fireproofing material---ceramic fiber, fast rate of temp.
increase, great thermal insulation property, energy saving, environmental
protection, and long service life.
Model | 2.5-12TP | 5-12TP | 6-12TP | 8-12TP | 4-17TP | 8-17TP |
Hearth Dimension(cm) | 20*12*8 | 30*20*12 | 30*20*20 | 40*30*30 | 16*15*15 | 25*15*15 |
Hearth Volume(L) | 2 | 7.2 | 12 | 36 | 3.6 | 5.6 |
Hearth Material | Imported high thermal density ceramic fiber | |||||
Design Temperature | 1200℃ | 400-1700℃ | ||||
Temperature-controlled instrument | PLC control system | |||||
Temp.control accuracy | ±1℃ | |||||
Heating Rate | ≤60℃/Min | |||||
Heating Element | Aludirome heater strip | U shaped solicon aluminum bar | ||||
Rated Power(kw) | 2.5 | 4 | 4 | 8 | 4 | 8 |
Overall Dimension(cm) | 59*39*64 | 69*52*66 | 69*52*78 | 95*72*92 | 59*62*90 | 59*62*92 |
BIOBASE is a professional manufacturer of laboratory products from 1999. Our main products are Biosafety Cabinet (Class I,II,III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Referigerator, Air Shower and Incubator.
-We built an excellent research team which consists of 50 professional engineers
-We have 13 years production experience and a strong technical production team, we adopt hih-tech and state-of art production equipments from Italy, Japan, and Switzerland, etc.
-We have a strong quality control team to inspect all production stage, from the purchased accessory to the finished products.
-We have full sets of advanced quality assurance equipments.
-Certificates: ISO9001;ISO13485;ISO14001; CE; MET; NSF 49.
-We are and will continue to be supplier of the most categaries of laboratory.
Mainly wooden and carton ,special demands also can be met.
