BJPX-1102C Single Door Double Layer Large Capacity Vertical Type Shaking Incubator

Click on the image to view the original image

Product：	views：4BJPX-1102C Single Door Double Layer Large Capacity Vertical Type Shaking Incubator
Branch：	BIOBASE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:41

Product Details

Overview

Quick Details

Classification:: Laboratory Thermostatic Devices

Brand Name:: BIOBASE

Model Number:: BJPX-1102C

Place of Origin:: Shandong, China

Rotary Speed:: 40~300rpm

Rotary Accuracy:: ±1rpm

Power supply:: 220V±10%,50/60HZ

Temp Uniformity:: ±1℃

Timing Range:: 0~500 hours

Temp. Range:: RT+5℃~60℃

Shaking Plate Quantity:: 2 pcs

Internal Material:: Stainless steel

Heating Consumption:: 500W

Name:: Shaking Incubator

Supply Ability

Supply Ability:: 400 Unit/Units per Month Shaking Incubator

Packaging & Delivery

Packaging Details: wooden box

Port: Qingdao

Picture Example:

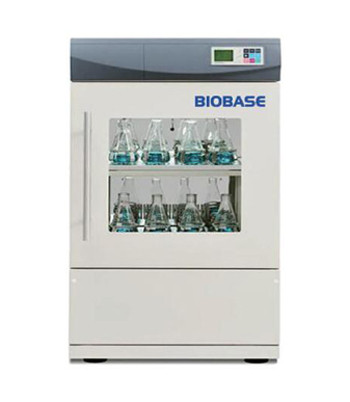

BJPX-1102C single door & double layer Large Capacity Vertical type shaking incubator

Features

1. Vertical dual-layer structure, small space occupied, more bottle loaded, better performance.

2. Front-open door design, more flexibility.

3. Constant temperature and low temperature are available to choose.

4. Efficient drive motor and cooling control, low energy consumption.

5. Transparent window and built-in lighting design, convenient for observation samples at any time.

6. Ac induction long-life motor design.

7. Over temperature acousto-optic alarm function.

8. Power off recovery function.

Accessories: UV lamp, Humidity test or control, Air inlet pipe, illumination system.

Security assurance:

1. Leakage current & over current protection system, ensure the safety of operators.

2. Over-temperature & over-speed acousto-optic alarm emergency control system, ensure the security of the samples.

Technical Parameters

Model	BJPX-1102C	BJPX-2102C
Controller	PID
Display	LCD
Circulation Mode	Forced convection
Shaking mode	Rotary oscillatory
Drive Mode	Balancing drive
Rotary Speed	40~300rpm
Rotary Accuracy	±1rpm
Vibration Range	Φ25(mm)
Temp Range	RT+5℃~60℃	4℃~ 60℃
Temp Control Precision	±0.1℃
Temp Uniformity	±1℃
Timing Range	0~500 hours
Shaking Plate Size	500*350mm
Shaking Plate Quantity	2 pcs
Max. Capacity	1000ml12/ 500ml24/ 250ml30/ 100ml48/ 50ml*48
Standard Capacity	500ml12 / 250ml15
Internal Material	Stainless steel
External Material	Cold-rolled steel with anti-bacteria power coating
Motor	120W frequency conversion motor
Refrigerant	/		CFC-Free 134A
Cooling Consumption	/		200W
Heating Consumption	500W
Safety Functions	Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection.
Auxiliary function	Storage of rotary speed, memory and recovery function, recording of parameters, temperature and speed calibration, clock display and dual display of room temperature and actual temperature.
Power Consumption	600W			830W
Power Supply	AC 220V±10%, 50/60Hz
Net Weight	150Kg			165Kg
Gross Weight	175Kg			190Kg
Internal Size	600440650mm
External Size	7006001250mm
